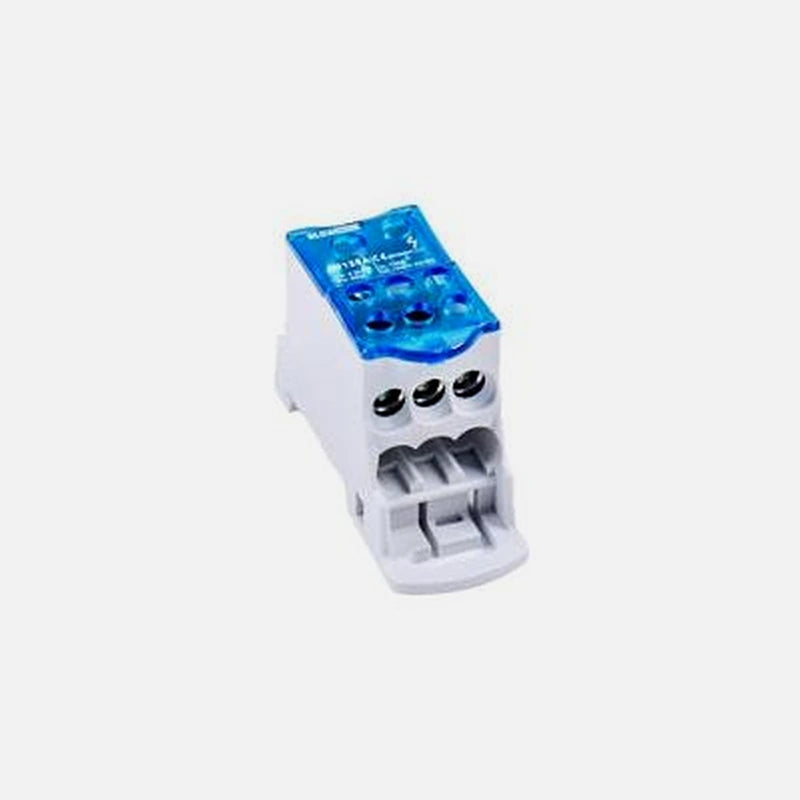

The Blox Connect FJ125A is a 1-pole rail-mounted distribution block rated at 125A. It accepts a single input cable and distributes current to six separate output terminals, making it suitable for sub-distribution in electrical panels and enclosures.

The insulation is made from slow-burning polyamide polymer PA66/V-0 for fire safety compliance. The screws are reinforced and galvanised steel, and the frame and conductor are nickel-plated brass for corrosion resistance and reliable conductivity.

Key Features

• 1-pole (1P) DIN rail-mount distribution block
• 125A current rating
• Input accepts cable cross-sections of 10–35mm²
• 6 output terminals, each accepting 2.5–16mm²
• Insulation: slow-burning polyamide polymer PA66/V-0
• Screws: reinforced and galvanised steel
• Frame and conductor: nickel-plated brass

Product Benefits

• Single input to six outputs simplifies sub-distribution wiring inside a panel
• PA66/V-0 flame-retardant insulation meets fire-safety requirements in enclosed enclosures
• Nickel-plated brass conductor maintains low contact resistance and resists oxidation over time
• Galvanised steel screws provide clamping force without loosening under thermal cycling
• Wide input range (10–35mm²) accommodates both smaller and larger incoming supply cables

Technical Specifications

• Model: FJ125A Blox Connect
• Poles: 1P
• Current Rating: 125A
• Input Cable Cross-Section: 10–35mm²
• Output Cable Cross-Section: 6× 2.5–16mm²
• Insulation Material: Slow-burning polyamide polymer PA66/V-0
• Screw Material: Reinforced and galvanised steel
• Frame/Conductor Material: Nickel-plated brass
• Dimensions: 77×29×46mm

Why You'll Love It

• 77×29×46mm compact footprint fits standard DIN rail panel layouts without consuming excessive rail space
• Six output terminals reduce the need for additional junction boxes in the distribution board
• PA66/V-0 rating gives confidence in fire-safety performance during overload events
• Package includes 1× Blox Connect FJ125A Rail Distribution Block 1P 125A
