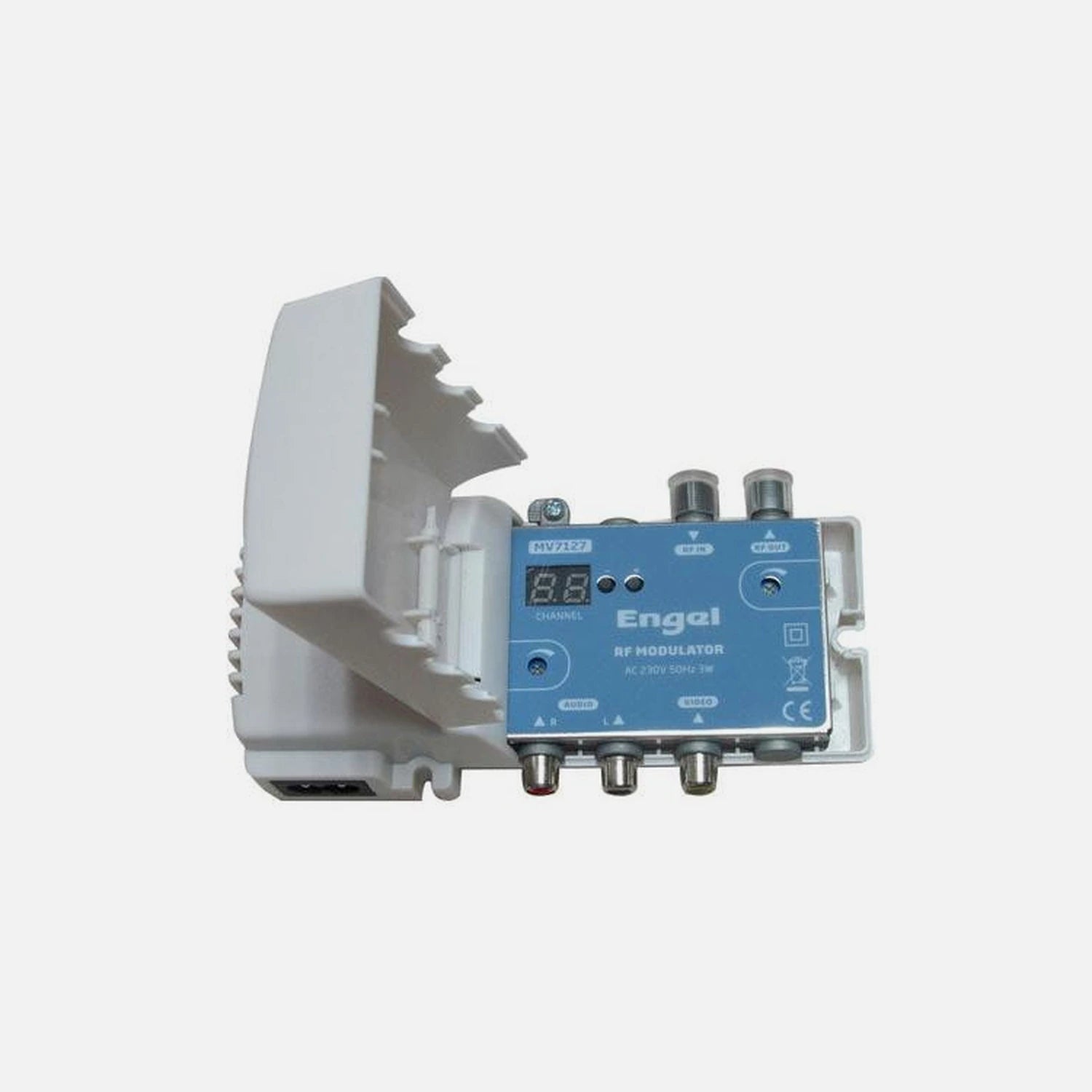

The Engel MV7127 is an analogue VHF/UHF modulator that enables multiroom audiovisual distribution. It takes the audio and video output from any AV source — DVD player, DTT or satellite receiver, VCR, and similar devices — modulates the signal, mixes it with the antenna RF input, and sends the combined signal through the existing coaxial cable network to additional televisions throughout the home.

Channel selection is performed using push buttons with a display readout, and the RF output level is adjustable. No additional wiring is needed beyond the existing coaxial cable installation.

Key Features

• Accepts RCA audio/video input and RF antenna input simultaneously.
• Single RF output distributes the modulated signal over coaxial cable.
• Frequency range covers 47–862 MHz (VHF and UHF bands).
• Maximum output level of 85 dBμV.
• Channel selection via front-panel push buttons and display.
• Adjustable RF output level (0/−15 dB) and audio input level (+1/±14 dB).

Product Benefits

• Watch content from a single AV source on any television in the home using existing coaxial wiring.
• No need to run new HDMI or AV cables between rooms.
• Compatible with DVD, DTT, SAT, VCR, and other RCA-output sources.
• Weighted signal-to-noise ratio of ≥−55 dB maintains picture clarity on connected televisions.

Technical Specifications

• Inputs: RCA (audio + video) + RF
• Outputs: 1× RF
• Frequency Range: 47–862 MHz
• High Band (VHF III): 230–300 MHz
• UHF Band: 470–862 MHz
• Maximum Output Level: 85 dBμV / 75 Ω
• RF Level Adjustment: 0/−15 dB
• Audio Frequency Range: 20 Hz–15 kHz
• Audio Input Level/Impedance/Deviation: 775 mV RMS / 10 kΩ / 50 kHz
• Audio Level Adjustment: +1/±14 dB
• Signal/Noise Ratio (weighted): ≥−55 dB
• Intermodulation Distortion (II, III): <−60 dB
• Amplitude Modulation Depth (typical): 81%
• Video Frequency Response: ±1 dB (0.5/+4.0 MHz); +1/−2 dB (4.0/−4.8 MHz)
• A/V Ratio: 12±3 dB / 16±3 dB
• Carrier Accuracy: ±50 kHz
• Frequency Instability: 10⁻⁵
• Power Consumption: 230 V~ 50 Hz, 3 W
• Box Contents: 1× Engel MV7127 modulator, 1× RCA to SCART cable, 1× power supply cable, 1× instruction manual

Why You'll Love It

• Uses the coaxial cabling already installed in most homes — no rewiring project required.
• Push-button channel selection with display makes tuning fast and straightforward.
• Adjustable output and audio levels let you fine-tune the signal for each installation.
• Compact design fits easily in an AV cabinet alongside other equipment.
