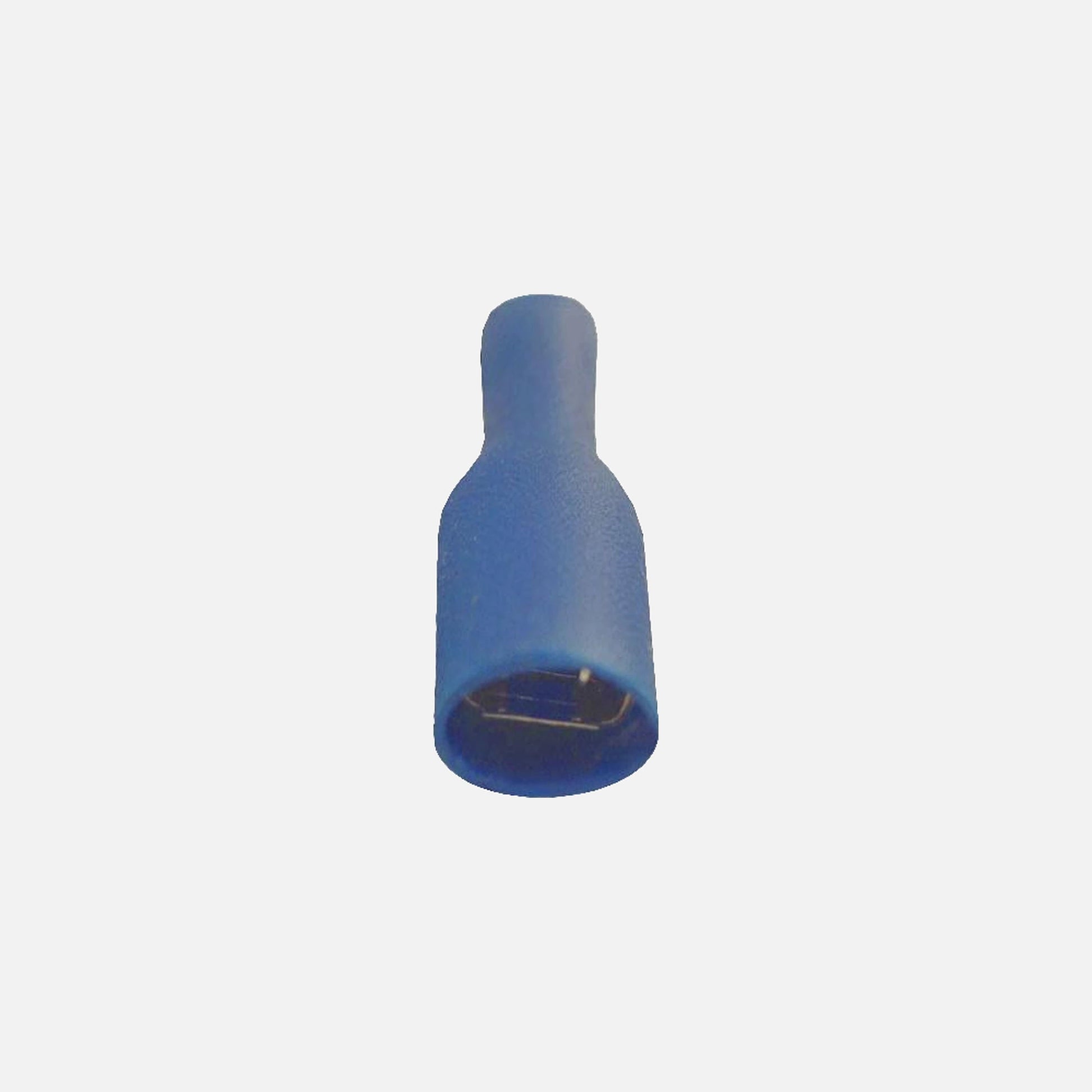

The AD FDFD1-250 is a fully insulated female spade terminal using a drawer-press faston mechanism. The insulating sleeve covers the entire metal body, providing maximum protection against accidental contact and short circuits.

Constructed from tinned copper, the terminal delivers reliable conductivity and corrosion resistance. Blue insulation marks it as the correct choice for 2.5 mm² wire cross-sections within the standard colour-code range.

Key Features

• Female fully insulated faston (drawer-press) terminal
• Blue insulation for 2.5 mm² conductors
• Full-body insulation sleeve for complete protection
• Tinned copper conductor body
• Tab width: 6.35 mm
• Pack of 10 terminals

Product Benefits

• Full insulation over the entire metal body reduces risk of accidental contact compared to standard partially insulated terminals
• Blue colour coding enables immediate identification of 2.5 mm² conductors during wiring
• Tinned copper resists corrosion for long-lasting connection integrity
• Faston push-on design allows fast assembly and disassembly without tools

Technical Specifications

• Model: FDFD1-250
• Terminal Type: Full insulated female spade (faston, drawer press)
• Insulation Colour: Blue
• Conductor Material: Tinned copper
• Conductor Cross-Section: 2.5 mm²
• Tab Size: 6.35 mm
• Quantity: 10 pcs

Why You'll Love It

• Full insulation provides an additional layer of safety over standard insulated alternatives
• Pack of 10 ensures a complete set of connections is covered in a single purchase
• Standard 6.35 mm tab is compatible with widely available connectors and device terminals
