Opticum OMS 9/32 PRO-TR Multiswitch 9-In / 32-Out – 2 Satellites + Terrestrial, DiSEqC 2.0, Amplified

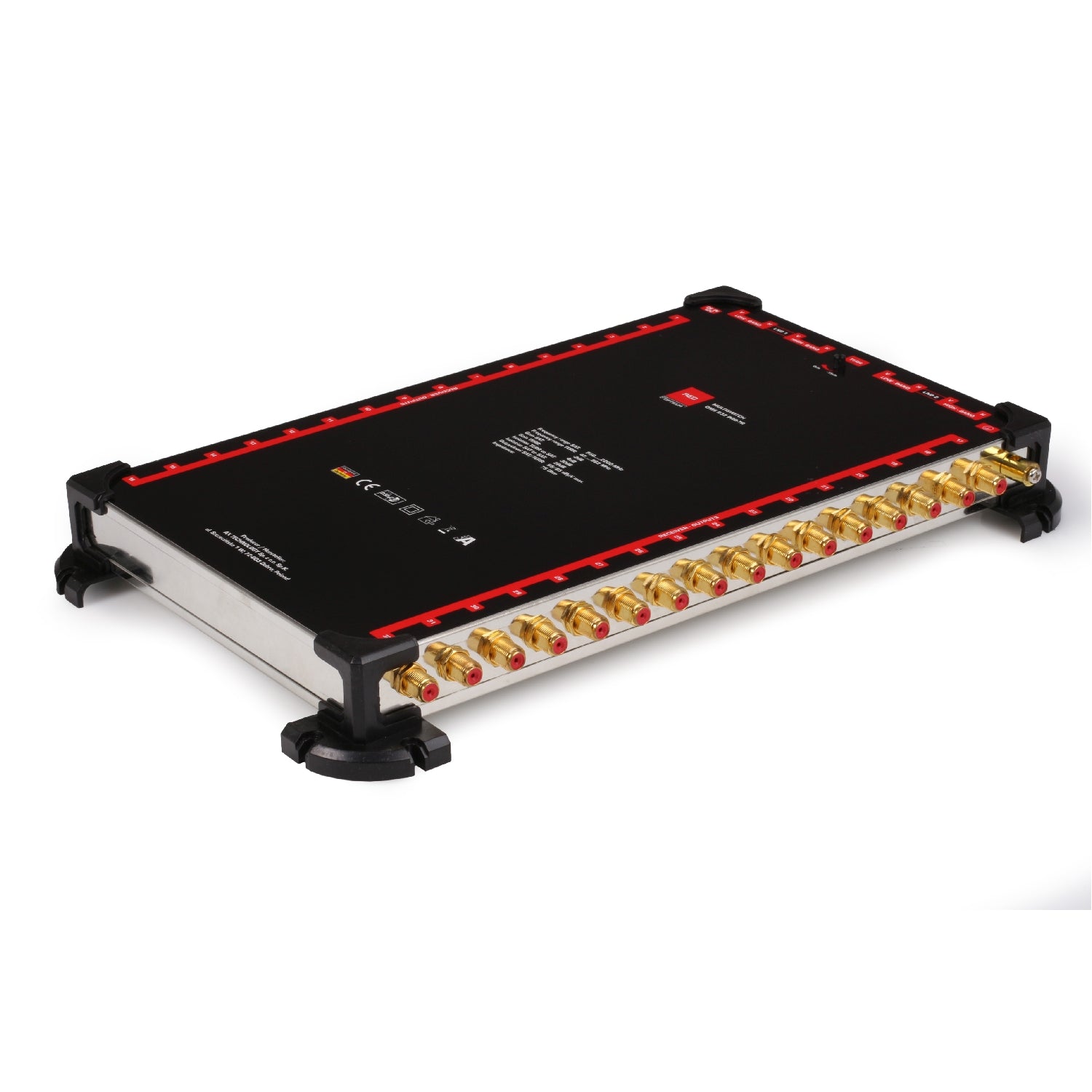

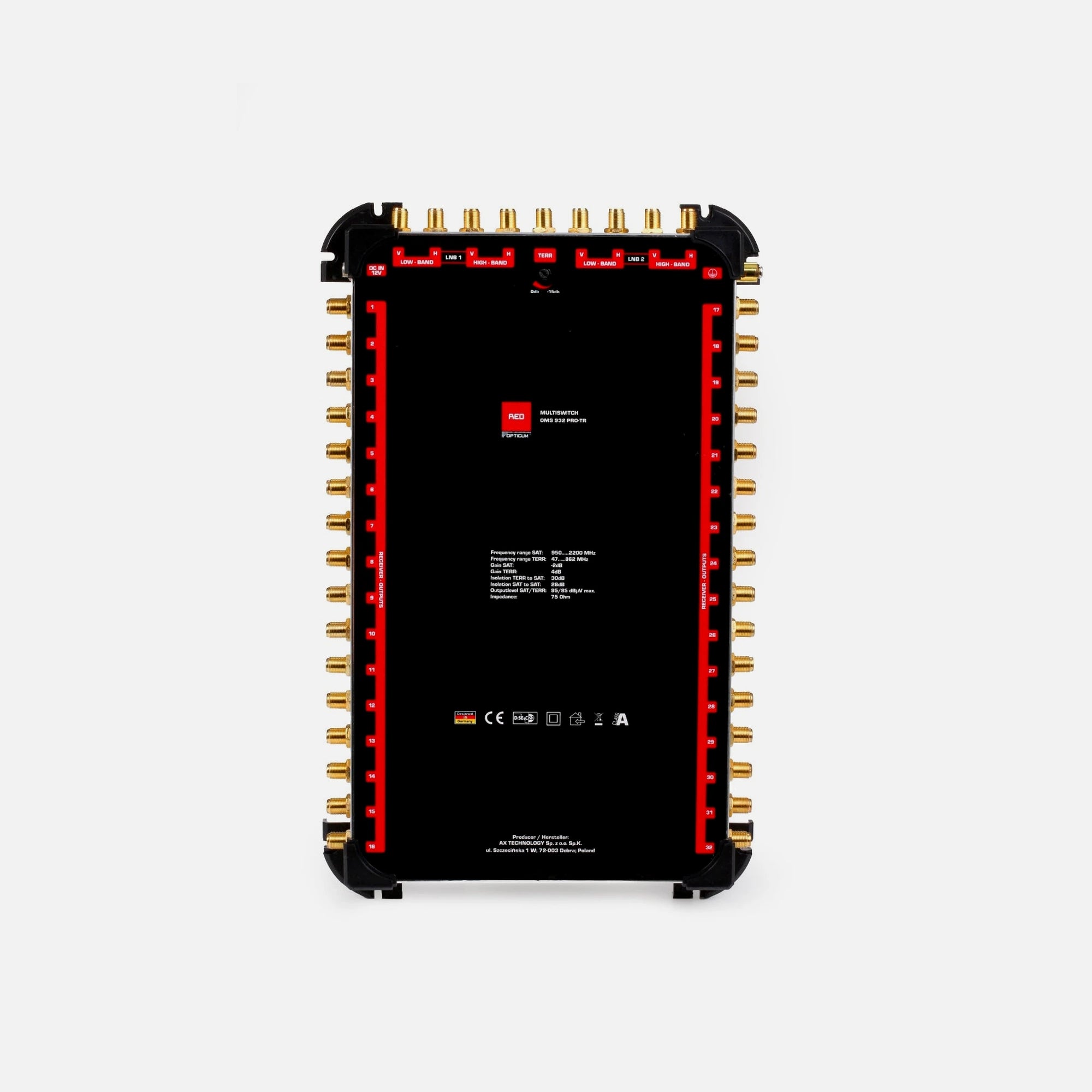

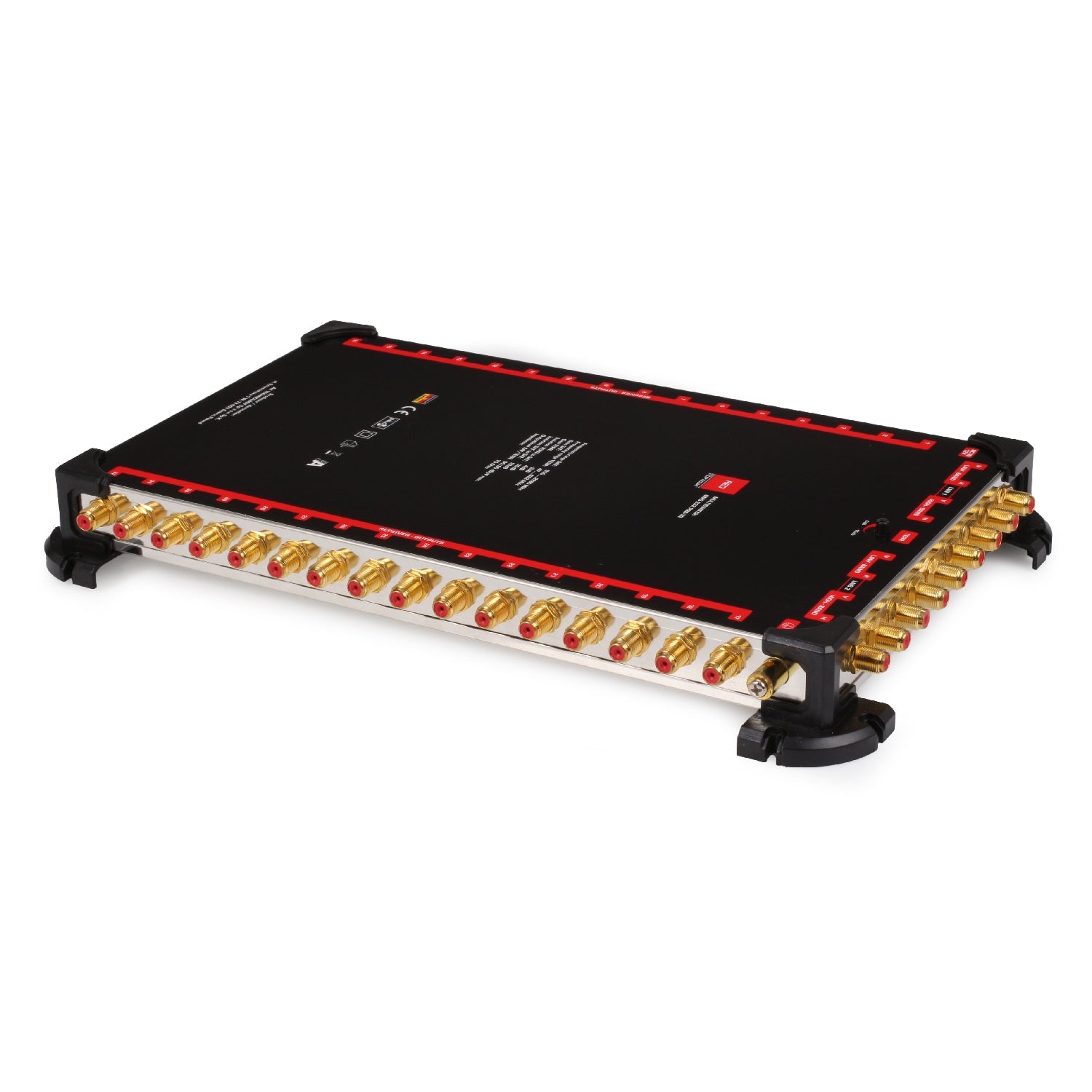

The Opticum OMS 9/32 PRO-TR is a 9-input / 32-output SMATV multiswitch that distributes two satellites plus terrestrial TV to 32 independent receivers or wall outlets over a single cable each. It's the distribution heart of a shared satellite system for an apartment block, hotel or large house — every subscriber gets full, independent control of polarity and band.

Built-in amplifiers and gold-plated F connectors keep the signal strong and low-loss across all outputs, the terrestrial input is actively amplified and adjustable from 0 to -15 dB to balance it against the satellite feed, and an external power supply is included. It covers the full 47-2200 MHz range and switches polarity/band by 13/18 V and 22 kHz, with DiSEqC 2.0. Ideal for large SMATV systems distributing to up to 32 outlets.

Key Features

• 8 SAT + 1 terrestrial inputs → 32 independent subscriber outputs
• Distributes 2 satellites + terrestrial to 32 receivers
• Built-in amplifiers; gold-plated F connectors for low loss

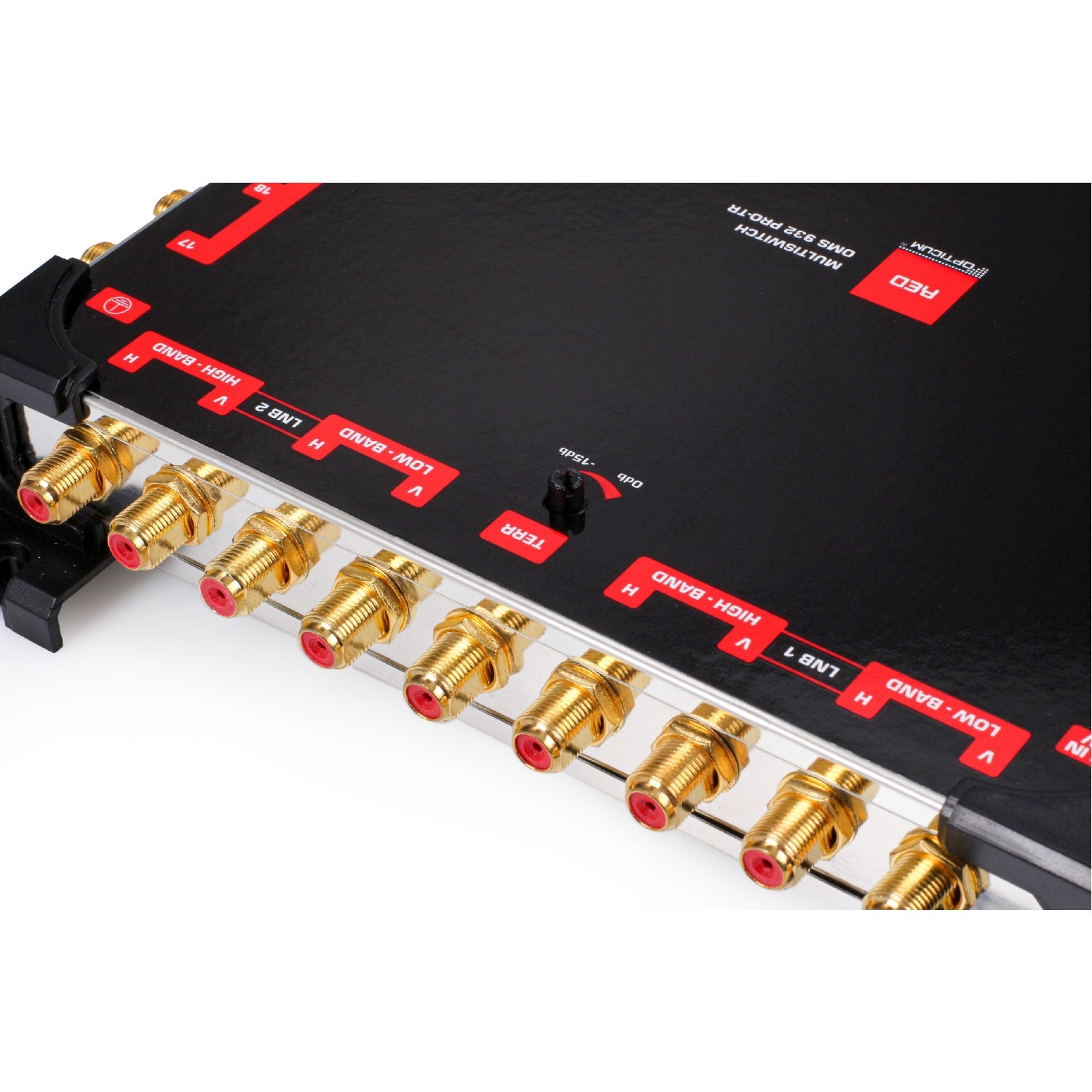

• Active, adjustable terrestrial input (0 to -15 dB)
• Full 47-2200 MHz frequency range
• Polarity/band switching: 13/18 V, 22 kHz, DiSEqC 2.0
• Compatible with 2× Quattro LNB

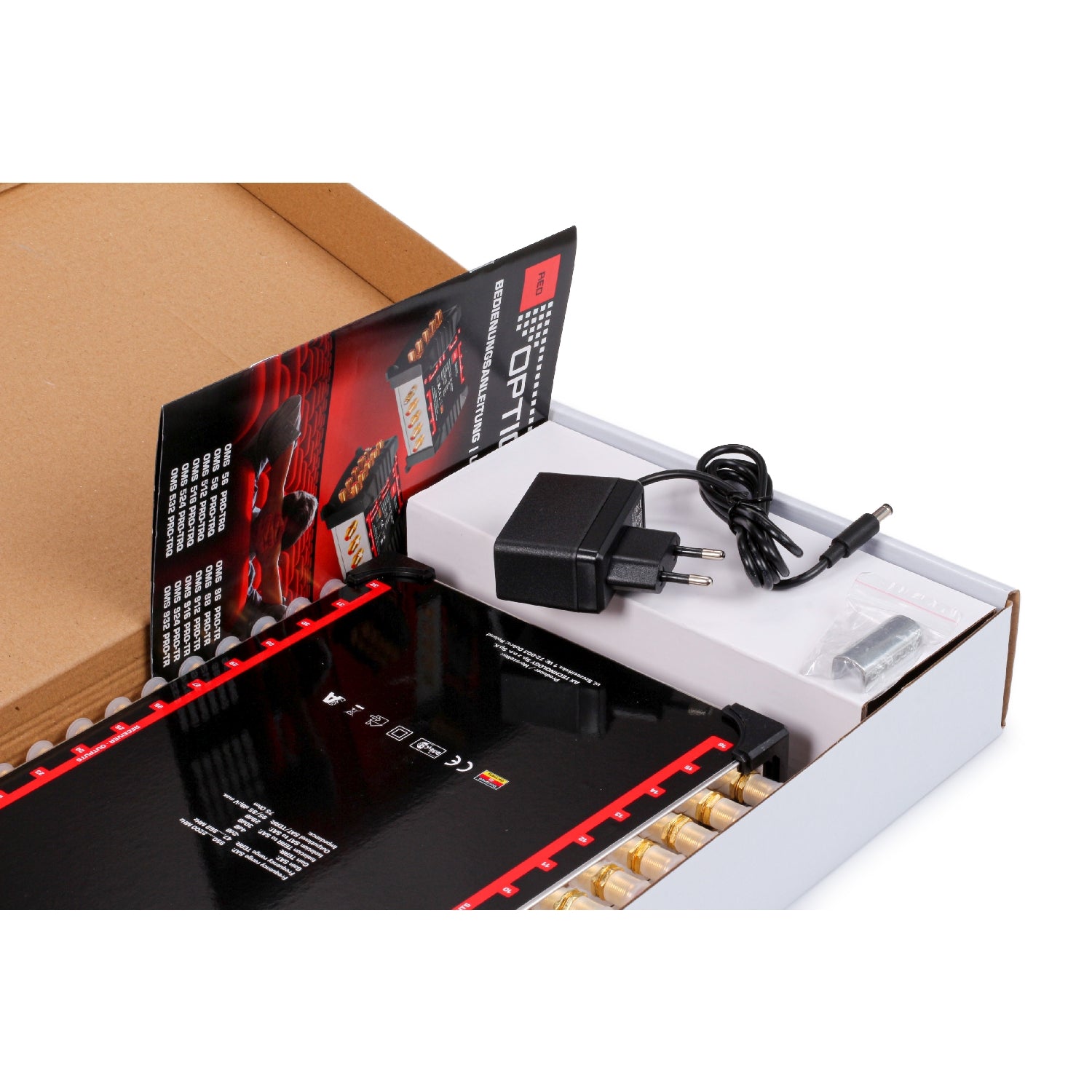

• External power supply included; ground connection

Technical Specifications

• Type: SMATV multiswitch
• Inputs: 8 SAT (F) + 1 terrestrial (F)
• Outputs: 32 subscriber outputs (F)
• SAT/IF frequency range: 950 - 2200 MHz
• Terrestrial frequency range: 47 - 862 MHz
• Overall frequency range: 47 - 2200 MHz
• SAT output level: 85 dBμV
• Terrestrial: Active, adjustable 0 to -15 dB
• Polarity/band control: 18V/22kHz, 13V/22kHz, 18V, 13V, DiSEqC 2.0
• Compatible LNBs: 2× Quattro LNB
• Connectors: Gold-plated F-type

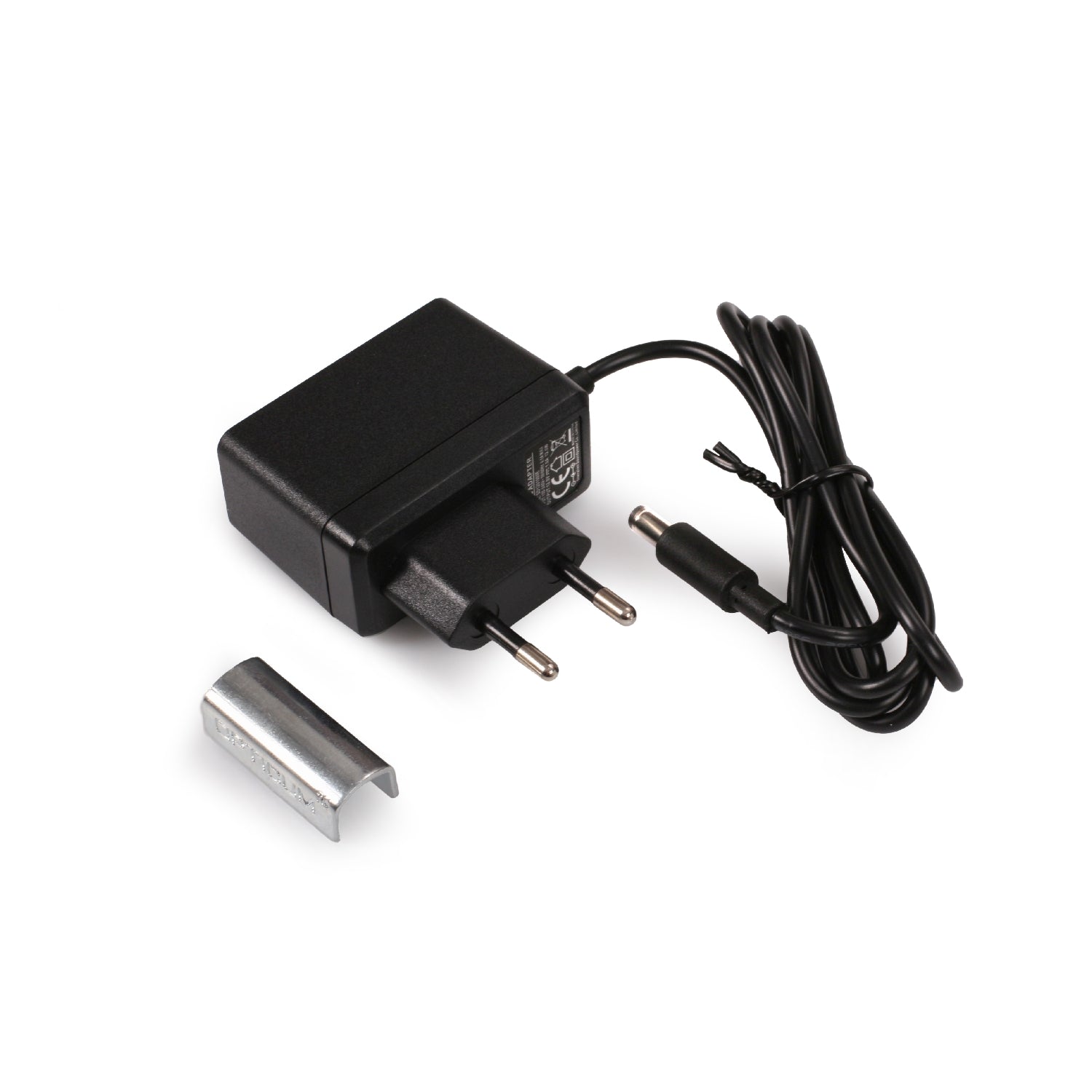

• Power: External power supply (included)
• Manufacturer part number: MUL0117

Product Benefits

• One box wires 32 flats or rooms back to a shared dish — no dish per subscriber
• Each output is fully independent — everyone watches any channel, any polarity
• Built-in amplification holds signal quality across long cable runs in a building
• Adjustable terrestrial mix means DVB-T2 and satellite arrive balanced at every socket

Why You'll Love It

• Gold-plated F connectors and built-in amps are what separate a reliable head-end from a cheap splitter
• Adjustable terrestrial gain saves a service call when the DVB-T2 level is off
• Standard 13/18 V + 22 kHz switching works with every mainstream receiver
