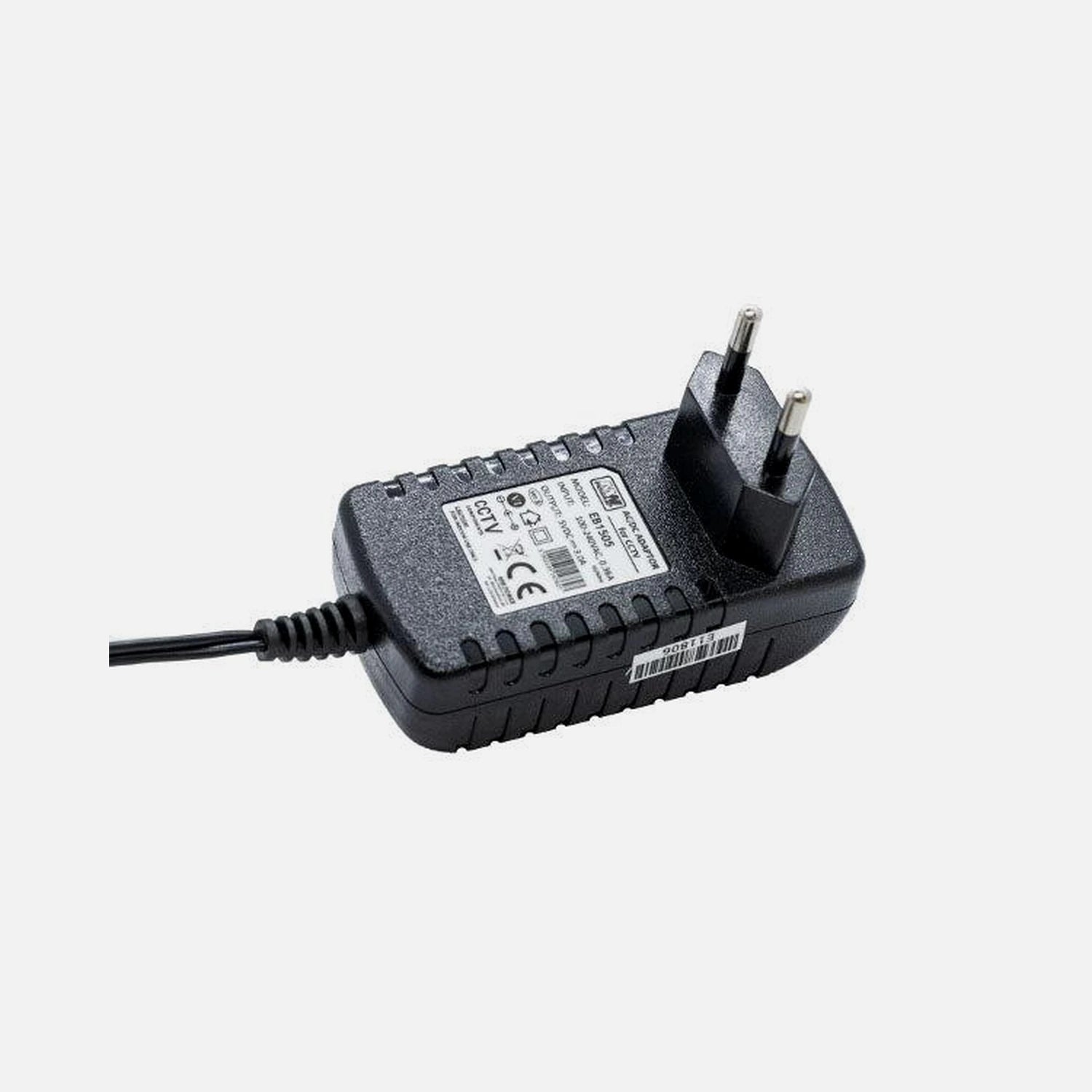

The MPL Power Elektro EB1505 is a single-output power supply rated at 5V/3A with a maximum power of 15W. It accepts universal AC input across 90–264VAC and 47–63Hz, making it compatible with mains supplies worldwide without any manual switching.
Its compact enclosure (8.5×4.25×6.7cm) and low no-load consumption of under 0.075W make it an economical choice for powering devices that require a stable 5V DC supply.
Key Features
- Single DC output: 5V rated voltage
- Universal AC input: 90–264VAC, 47–63Hz full range
- Current range: 0–3A, rated at 3A
- Built-in protections: overload, short circuit, and over-temperature
- No-load power consumption under 0.075W
Product Benefits
- Full-range AC input removes the need for voltage switching when used in different countries
- 15W rated power covers a wide range of low-voltage devices and peripherals
- Three-layer protection prevents damage to connected equipment during fault conditions
- Low standby draw of under 0.075W keeps idle running costs minimal
- Compact 8.5×4.25×6.7cm body fits in tight installations without requiring extra space
Technical Specifications
- Model: EB1505
- Rated Voltage: 5V
- Rated Current: 3A
- Current Range: 0–3A
- Rated Power: 15W
- Outputs: 1
- AC Voltage Range: 90–264VAC
- Frequency Range: 47–63Hz
- AC Current (typ.): 0.34A / 115VAC, 0.18A / 230VAC
- No-load Consumption: <0.075W
- Working Temperature: 0°C–40°C
- Dimensions: 8.5×4.25×6.7cm (L×W×H)
- Net Weight: 0.110kg
- Package Dimensions: 11×4.5×7cm (L×W×H)
- Package Weight: 0.120kg
Why You'll Love It
- Universal AC input means one unit works anywhere from 90V to 264V mains
- Automatic protection circuits safeguard both the power supply and the connected load
- Lightweight 0.110kg unit is easy to position and secure in fixed installations
- Package includes 1× MPL Power Elektro EB1505 Universal Power Supply Unit 5V/3A
