MPL EA 10750D3 Desktop Power Supply – 12V DC 5A 60W, 5.5×2.1 mm DC Plug & CEC VI
MPL EA 10750D3 Desktop Power Supply – 12V DC 5A 60W, 5.5×2.1 mm DC Plug & CEC VI
Out of stock
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description

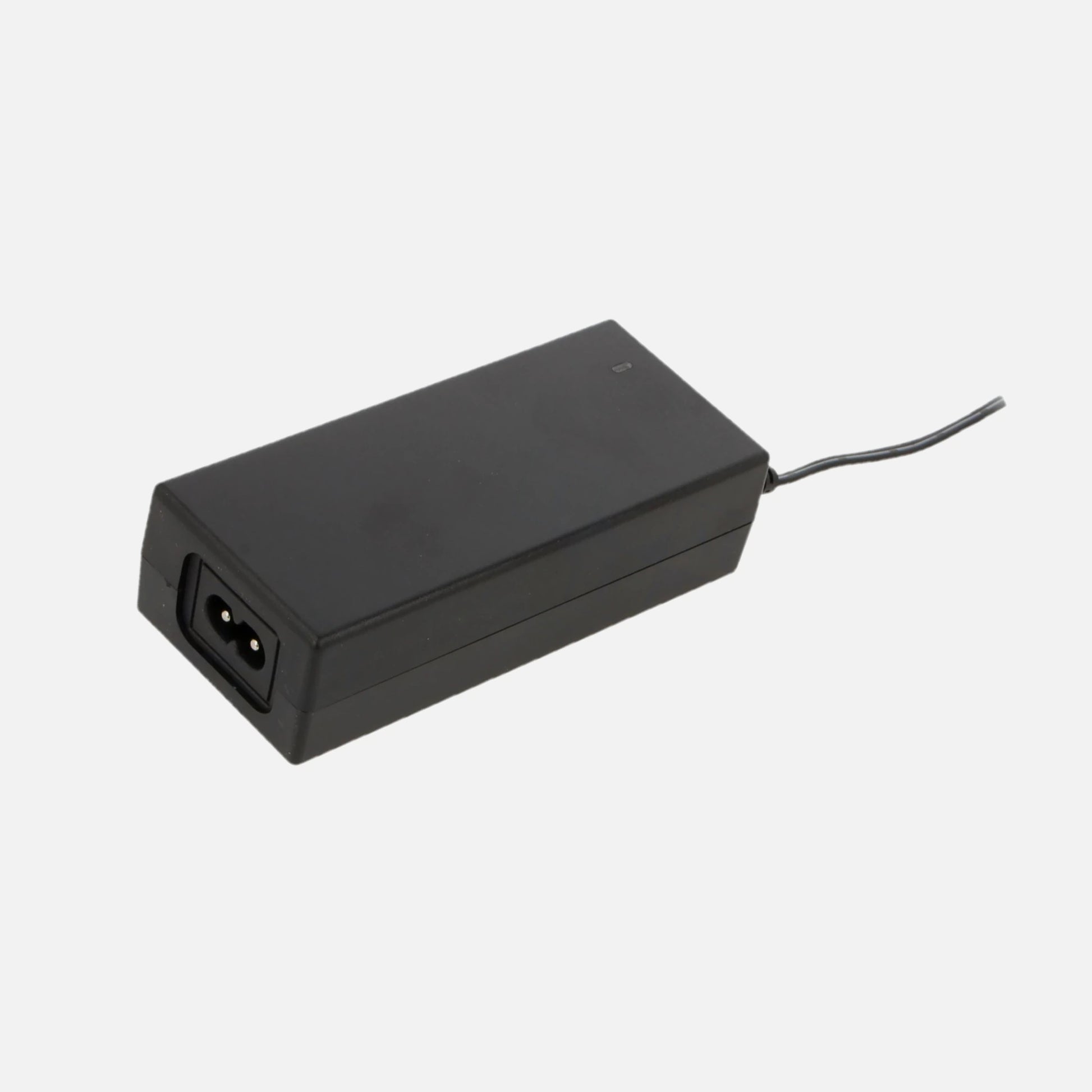

The MPL Power Elektro EA 10750D3 is a 60W desktop power supply providing a regulated 12V DC output at up to 5A through a 5.5×2.1mm DC plug. It accepts a universal 90–264V AC / 47–63Hz input and meets CEC level VI efficiency requirements, with a typical efficiency of 88.01%.
No-load power consumption is below 0.21W. The unit includes a 1200mm DC wire (18AWG×2C) and weighs 0.220kg. A mains power cable is not included — order product code 219065 separately.
Key Features
- 12V DC / 5A output with 5.5×2.1mm DC plug (positive inside)
- Rated power: 60W; current range 0–5A
- Universal AC input: 90–264V / 47–63Hz
- CEC level VI efficiency compliance; typical efficiency 88.01%
- No-load power consumption below 0.21W
- DC wire: 18AWG×2C, 1200mm length
Product Benefits
- CEC level VI compliance confirms high energy efficiency across load conditions
- Universal input range (90–264V) allows use worldwide without a voltage selector
- Auto-recovery over-current, short circuit, and over-voltage protection minimises downtime after a fault
- No-load draw below 0.21W reduces energy waste when the connected device is idle
- Desktop form factor (11.5×5×3 cm) places the power brick outside the device, keeping heat away from sensitive electronics
Technical Specifications
- Model: EA 10750D3
- Output Voltage: 12V DC
- Rated Output Current: 5A
- Current Range: 0–5A
- Rated Power: 60W
- Line Regulation: ±5%
- Load Regulation: ±5%
- Tolerance: ±8%
- Ripple & Noise (max.): 200mVP-P
- Rise Time: max. 100ms / 230VAC at full load
- Hold-up Time (typ.): 3ms / 230VAC at full load
- Input Voltage Range: 90–264VAC
- Input Frequency Range: 47–63Hz
- Efficiency (typ.): 88.01% — Input 115/230VAC average (25%+50%+75%+100%)/4
- AC Current (typ.): 1.8A / 230VAC
- No-load Power Consumption (max.): <0.21W
- Over Current Protection: 5.50–9.00A, auto-recovery
- Short Circuit Protection: Hiccup mode, auto-recovery
- Over Voltage Protection: Auto-recovery
- Working Temperature: -5°C to +40°C
- Working Humidity: 5–95% RH non-condensing
- Storage Temperature: -40°C to +85°C
- Storage Humidity: 5–90% RH non-condensing
- Safety Standards: Compliance to EN 62368
- Withstand Voltage (IN/OUT): 1.5kVAC
- Isolation Resistance (IN/OUT): 100MΩ / 500VDC / 25°C / 70% RH
- EMC Emission: Compliance to EN55032
- EMC Immunity: Compliance to EN61000-4-2, -3, -4, -5
- Harmonic Current: Compliance to EN61000-3-3 and EN61000-3-2
- DC Wire: 18AWG×2C, length 1200mm
- DC Plug: 5.5×2.1mm, positive inside
- Net Weight: 0.220 kg
- Dimensions (L×W×H): 11.5×5×3 cm
- Package Dimensions (L×W×H): 13.5×6.5×5 cm
- Package Weight: 0.250 kg
- Number of Outputs: 1
Why You'll Love It
- CEC VI and EN 62368 certifications confirm the unit meets current efficiency and safety standards
- Auto-recovery protection restores normal operation after overload or short circuit without manual reset
- 1200mm DC cable gives enough reach to position the power brick away from the device
- Package includes 1× MPL Power Elektro EA 10750D3 desktop power supply 12V/5A — power cable not included (order code 219065 separately)
