The GBC 24.0860.00 is an ON-OFF tact switch designed for direct PCB mounting. Its compact 6x6x4.3mm body and 4-pin through-hole layout make it a standard choice for control panels, consumer electronics, and prototype boards that require a momentary input point.

With an IP20 protection rating and a momentary (instant) switching action, it returns to its default OFF state the moment pressure is released. The 4-pin configuration provides mechanical stability on the board alongside its two electrical contacts.

Key Features

• Microbutton (tact) mode with instant momentary action — OFF-(ON)
• 4-pin PCB mounting for secure board attachment
• 6x6mm footprint in a compact 4.3mm height profile
• Rated operating range: 0.05A – 12Vdc
• IP20 protection degree
• Black colour; 2 switching positions

Product Benefits

• Momentary action ensures the circuit closes only while the button is held, preventing accidental latching
• 4-pin layout locks the switch body to the board, reducing stress on solder joints during use
• Low-voltage 12Vdc rating suits microcontroller and logic-level circuits without additional components
• Compact 6x6mm footprint conserves board space on densely populated PCBs
• Standard 6x6mm industry format is compatible with common PCB footprint libraries

Technical Specifications

• Model: GBC 24.0860.00
• Mode: Microbutton (Tact)
• Type: Switch
• Switching: Instant (momentary)
• Contacts: OFF-(ON)
• Number of Positions: 2
• Number of Pins: 4
• Operating Range: 0.05A – 12Vdc
• Protection Degree: IP20
• Colour: Black
• Mounting: PCB

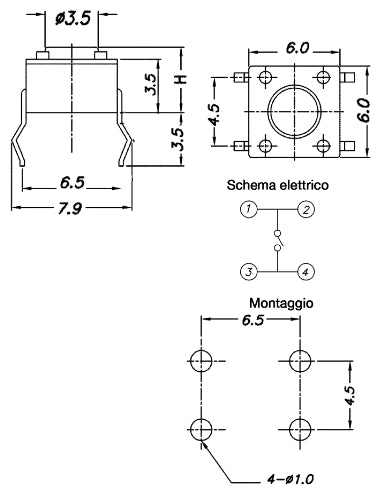

• Dimensions: 6x6mm (footprint), 4.3mm height

Why You'll Love It

• Industry-standard 6x6mm footprint drops into existing PCB designs without layout changes
• Momentary OFF-(ON) action is ideal for reset buttons, mode-select inputs, and test points
• Through-hole pins make hand-soldering and rework straightforward
• Package includes 1× GBC 24.0860.00 tact switch
