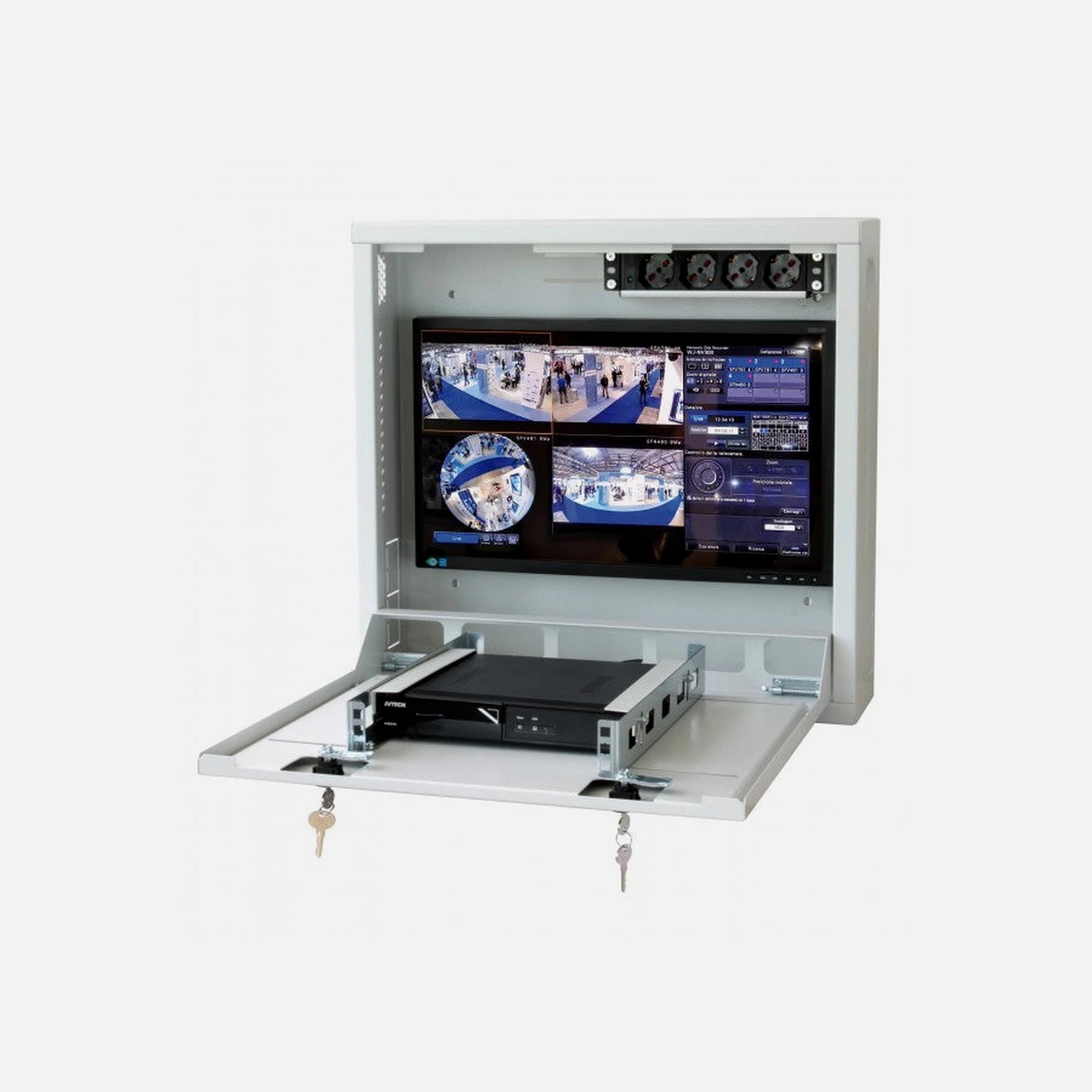

The Techly Professional ICRLIM08 Wall-Mount Security Box for DVR is a lockable wall-mounted enclosure designed to secure a video recorder (DVR/NVR) plus an optional small monitor and 19-inch network switch. Sized at 580 × 546 × 150 mm with 11 mm wall spacers, it's the standard installer's choice for shops, warehouses, hotels and small offices where the recording equipment needs to be protected from theft and tampering.

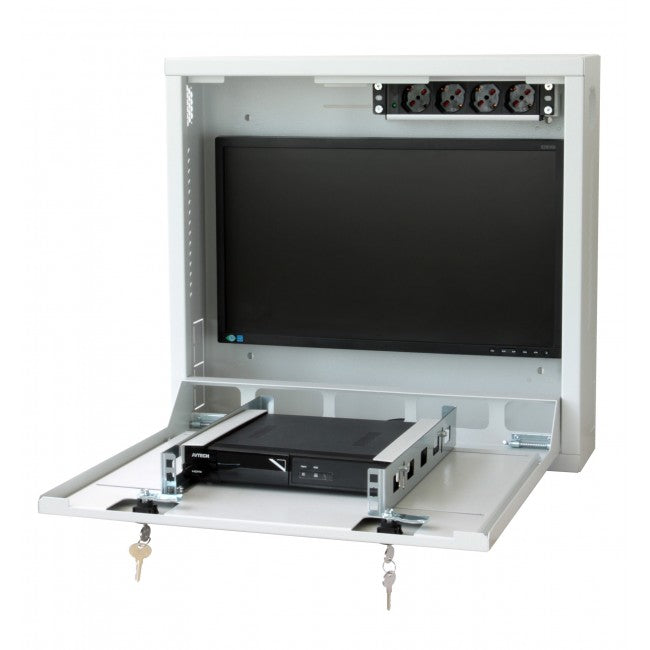

The hinged lid opens 90° giving full access to the equipment mounted directly to it, while the bottom of the box accepts a monitor on VESA 50/75/100 holes. Dual lock cylinders with different keys, sided ventilation slots with provisions for two cooling fans, and pre-cut cable entries on the sides make this a complete installation-ready kit.

Key Features

• External dimensions 580 × 546 × 150 mm with 11 mm wall spacers
• Hinged lid opens 90° for direct access to mounted equipment

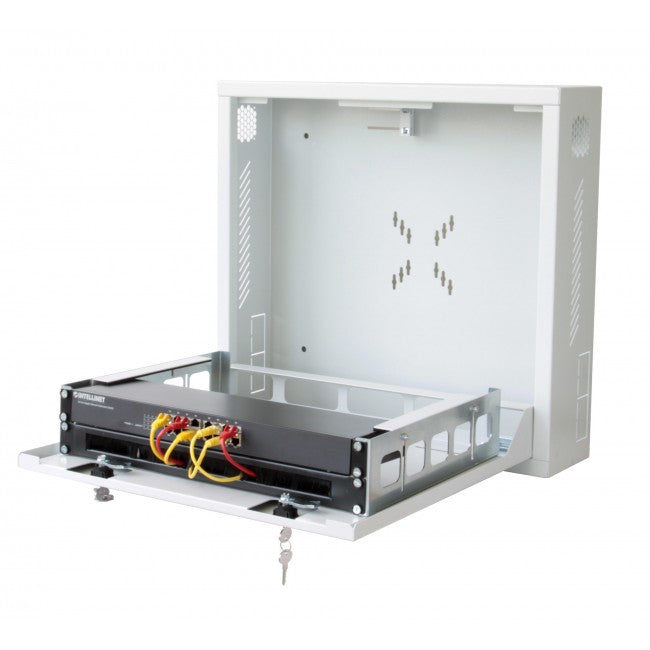

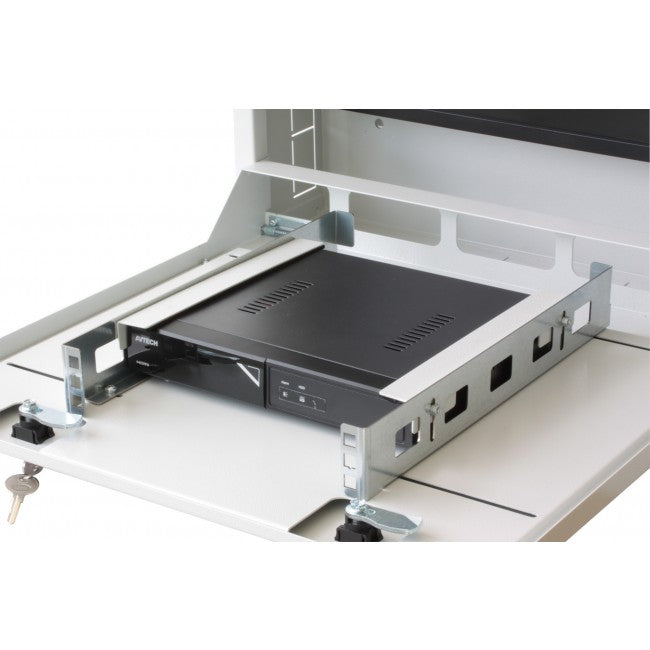

• Includes 1U 19" bracket for compact network switches
• VESA 50/75/100 mounting points on the bottom for a monitor

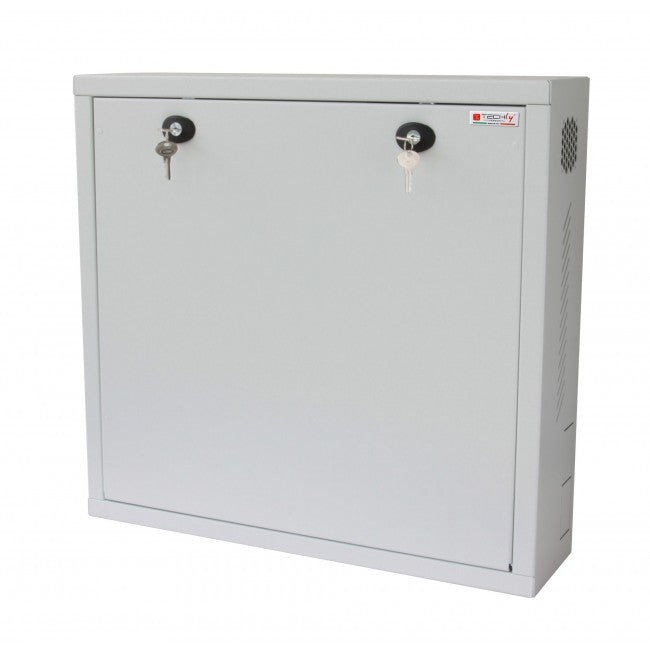

• Double cylinder lock with different keys for layered security

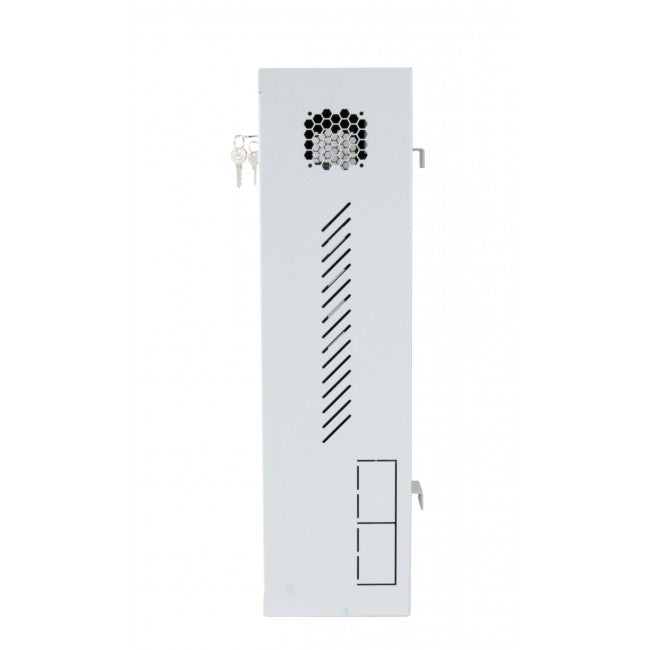

• Ventilation slots on all sides with provisions for two cooling fans

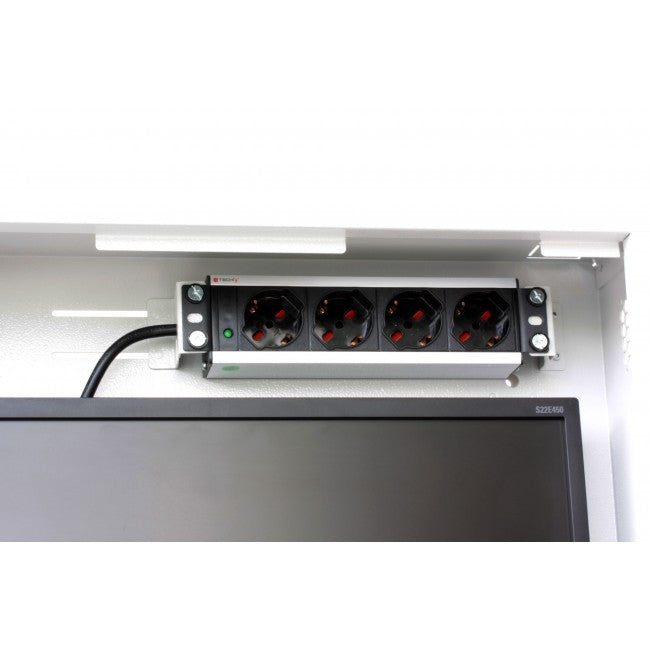

• Pre-cut cable entries on the sides + internal 10" PDU housing

Product Benefits

• Protects expensive DVRs and footage from theft and tampering
• Houses recorder, switch and monitor in a single tidy enclosure
• Pre-cut cable entries make installation faster and cleaner
• Built-in fan provisions allow active cooling for hot environments

Technical Specifications

• Model: ICRLIM08
• External dimensions: 580 × 546 × 150 mm (W × H × D)
• Wall spacers: 11 mm
• Lid: 90° (horizontal access)
• Switch bracket: 1U for switches
• Monitor mount: VESA 50, 75, 100 mm
• Locking: Double lock with different keys
• Ventilation: Slots on all sides + dual fan provisions
• Cable routing: Pre-cut side profiles
• Internal PDU: 10" power strip housing

Why You'll Love It

• One enclosure replaces a tangled rack of recorder, switch and monitor
• Lockable door keeps your CCTV recordings safe from intruders
• Standard VESA + 19" mounting means it works with any installer's kit
