Techly IDATA SPDIF-5 S-Video & RCA to HDMI Converter – 720p/1080p Upscaler, PAL/NTSC
Techly IDATA SPDIF-5 S-Video & RCA to HDMI Converter – 720p/1080p Upscaler, PAL/NTSC
Out of stock
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description
The Techly IDATA SPDIF-5 accepts composite RCA (CVBS + stereo audio) and S-VIDEO inputs and upscales them to 720p or 1080p HDMI output at 50Hz or 60Hz, selectable by a toggle switch. It also carries an HDMI input, allowing a direct HDMI source to pass through the same HDMI output — useful when connecting a legacy device and a newer source to a single display.
PAL and NTSC video standards are detected automatically. The converter is powered by an included 5V/2A supply and outputs an HDMI 3D signal where supported by the connected display.
Key Features
- Composite RCA (CVBS + stereo audio), S-VIDEO, and HDMI inputs in one device
- Output resolution: 720p or 1080p at 50Hz / 60Hz — toggle switch selectable
- PAL and NTSC auto-detection — no manual standard selection required
- Supports 4:3 and 16:9 aspect ratios
- HDMI 3D output signal support
Product Benefits

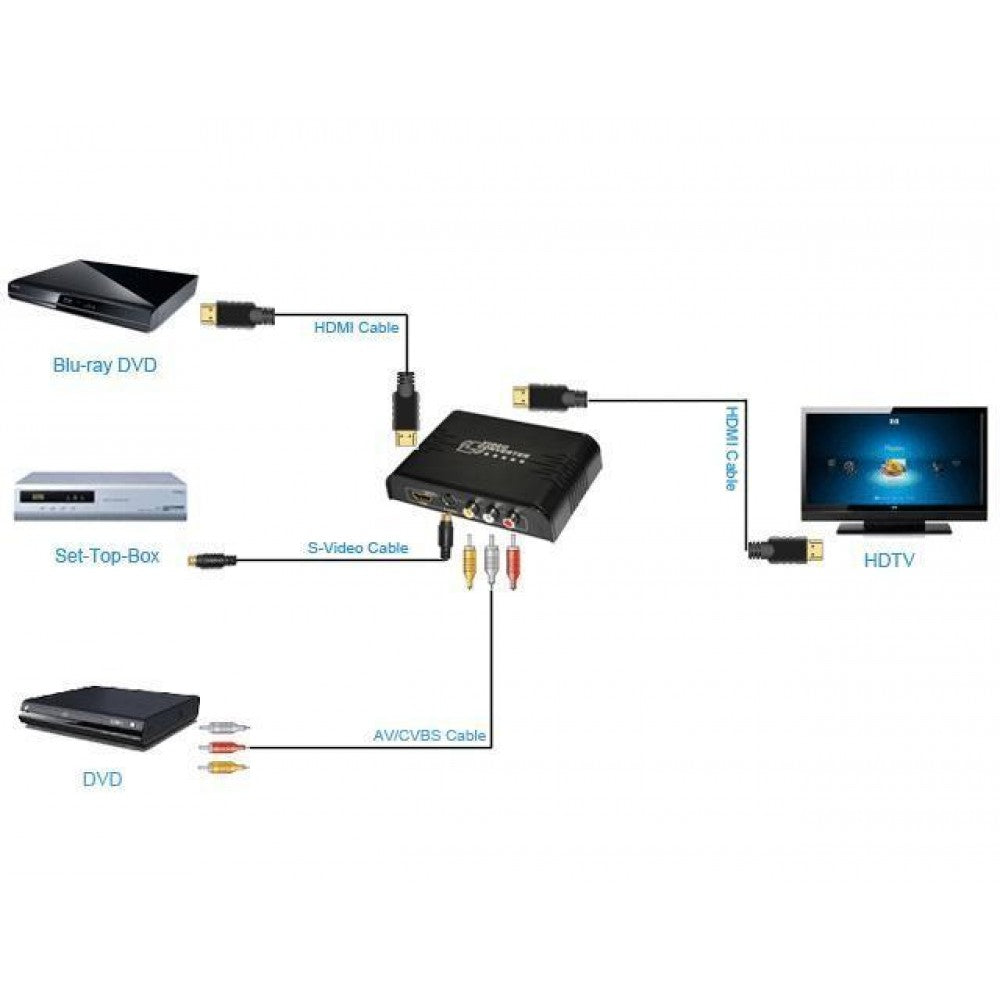

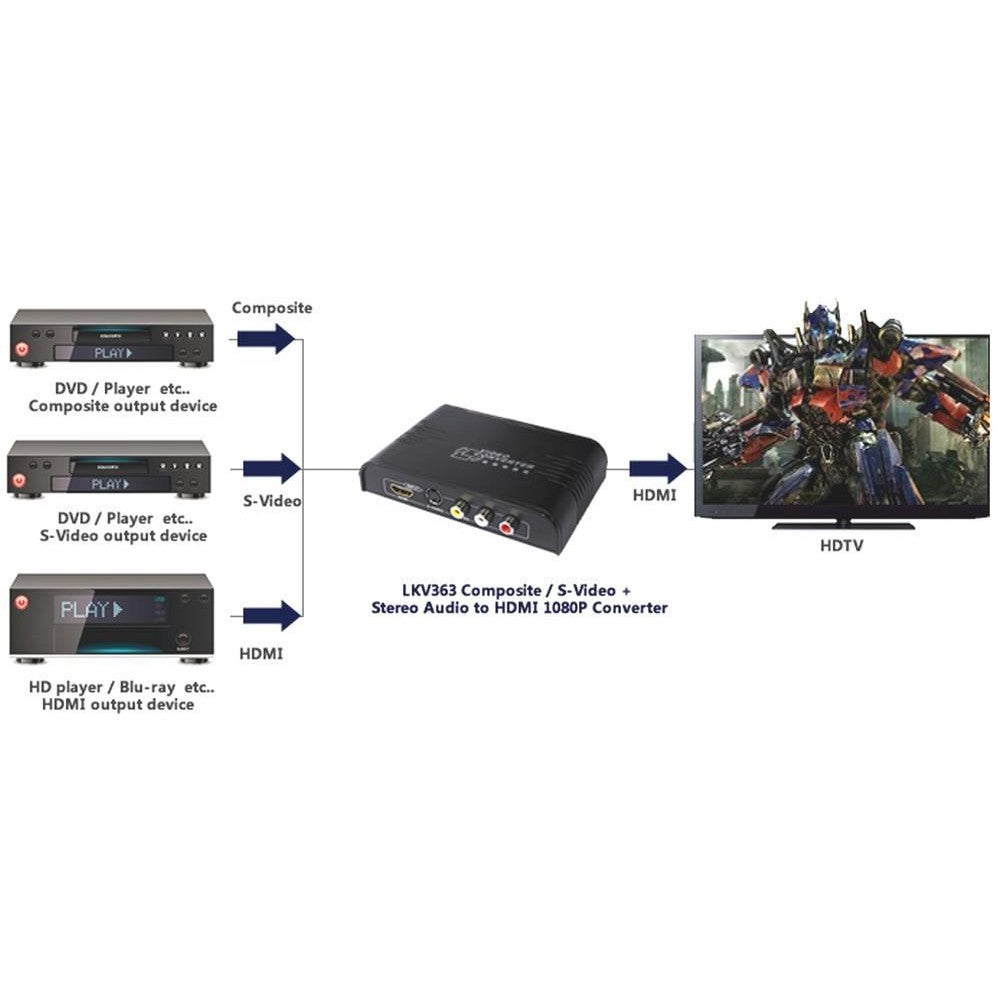

- Connects legacy VCRs, camcorders, and other S-VIDEO/RCA sources to any HDMI monitor or TV
- HDMI input pass-through removes the need for a separate HDMI switch for one additional source
- 720p / 1080p upscaling improves image presentation on modern high-resolution displays
- Auto PAL/NTSC detection works with both European and US source equipment without reconfiguration
- Compact 125×85×25.5mm unit fits behind most TVs or on a shelf with minimal footprint
Technical Specifications
- Model: IDATA SPDIF-5

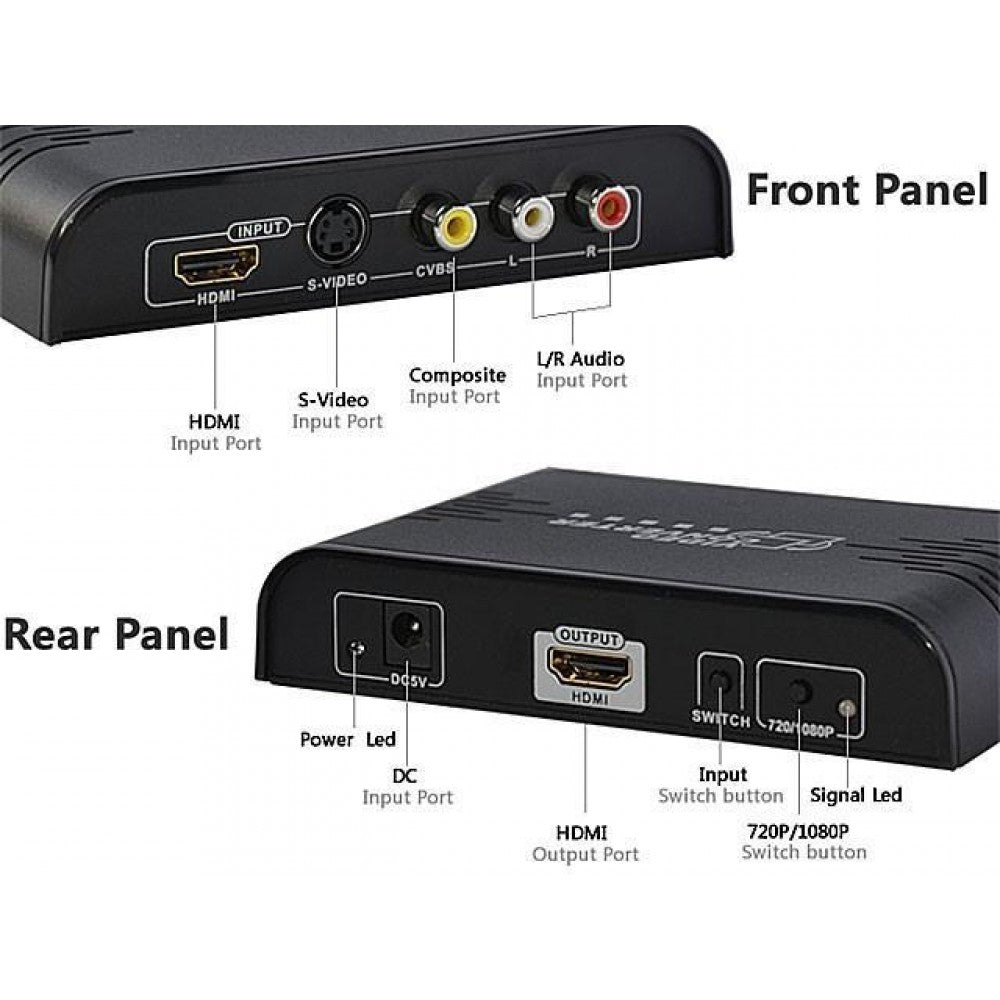

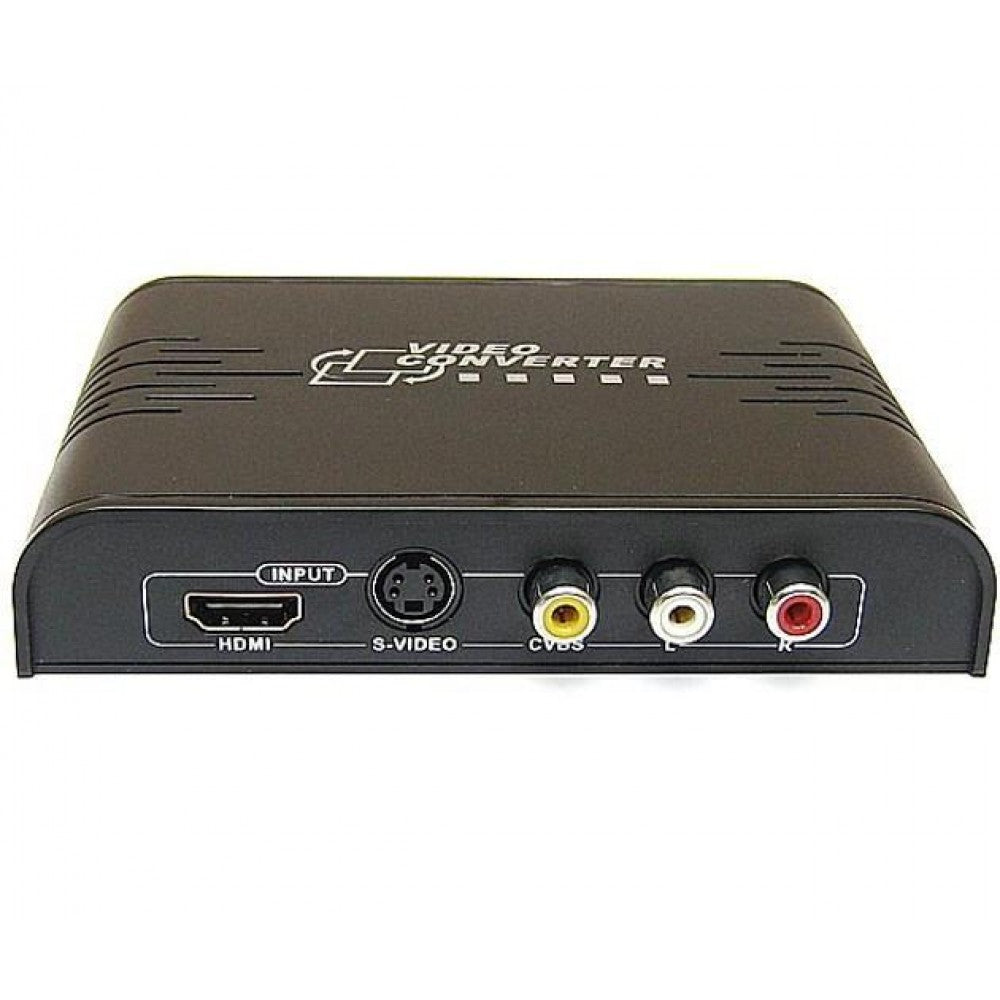

- Input Connectors: 3× RCA AV (CVBS + stereo audio) female; S-VIDEO (SVHS mini-DIN 4P) female; HDMI A (19p) female

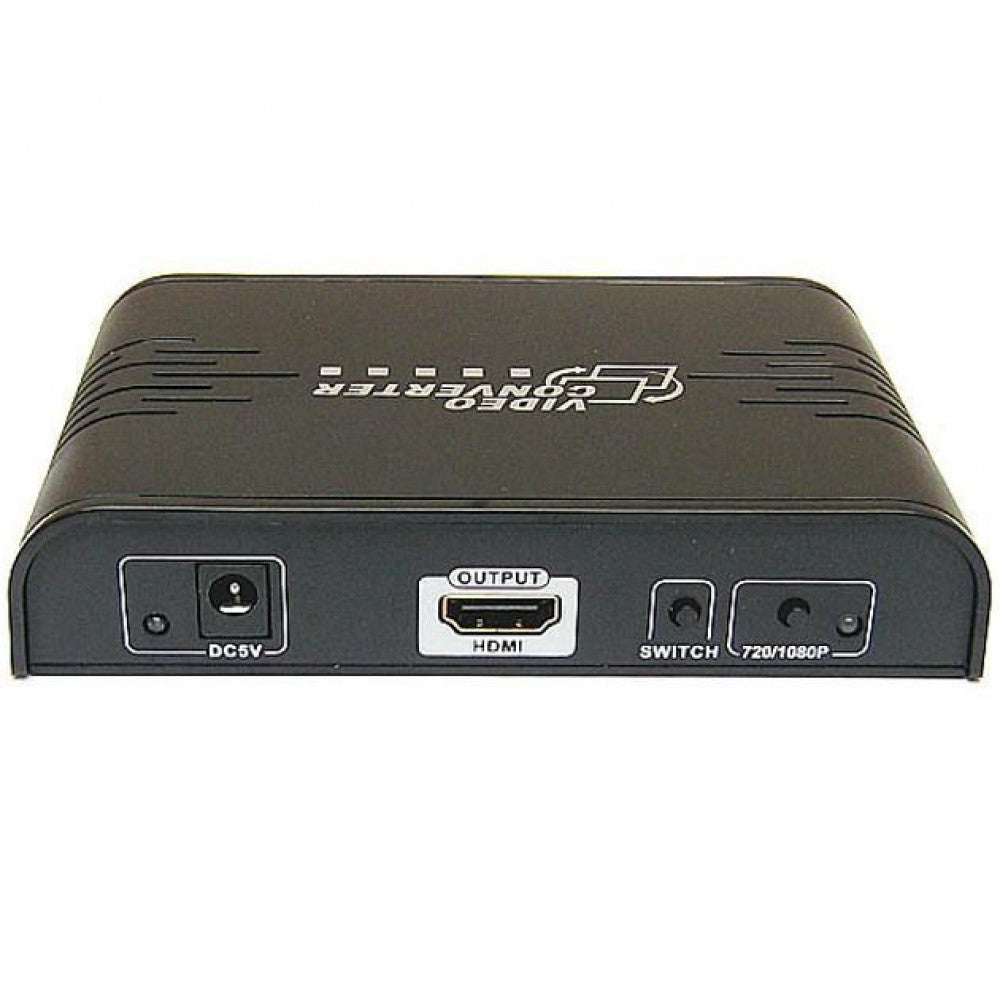

- Output Connector: HDMI A (19p) female
- Supported Input Resolutions: 480i / 480p / 576i / 576p / 720i / 720p / 1080i / 1080p
- Output Resolution: 720p or 1080p at 50Hz / 60Hz (toggle switch)
- Video Standard: PAL, NTSC (auto switch)
- Aspect Ratio: 4:3 and 16:9
- Power Supply: 5V 0.7A (3.5W); includes 5V/2A adapter
- Power Connector: 5V socket
- Dimensions (W×D×H): 125×85×25.5mm
- Weight (without power supply): approx. 123g
- Certifications: FCC, RoHS, WEEE
Why You'll Love It
- No software or drivers required — plug in the source and display, connect power, and it works
- Toggle switch for 720p/1080p output and composite/S-VIDEO input selection keeps setup straightforward

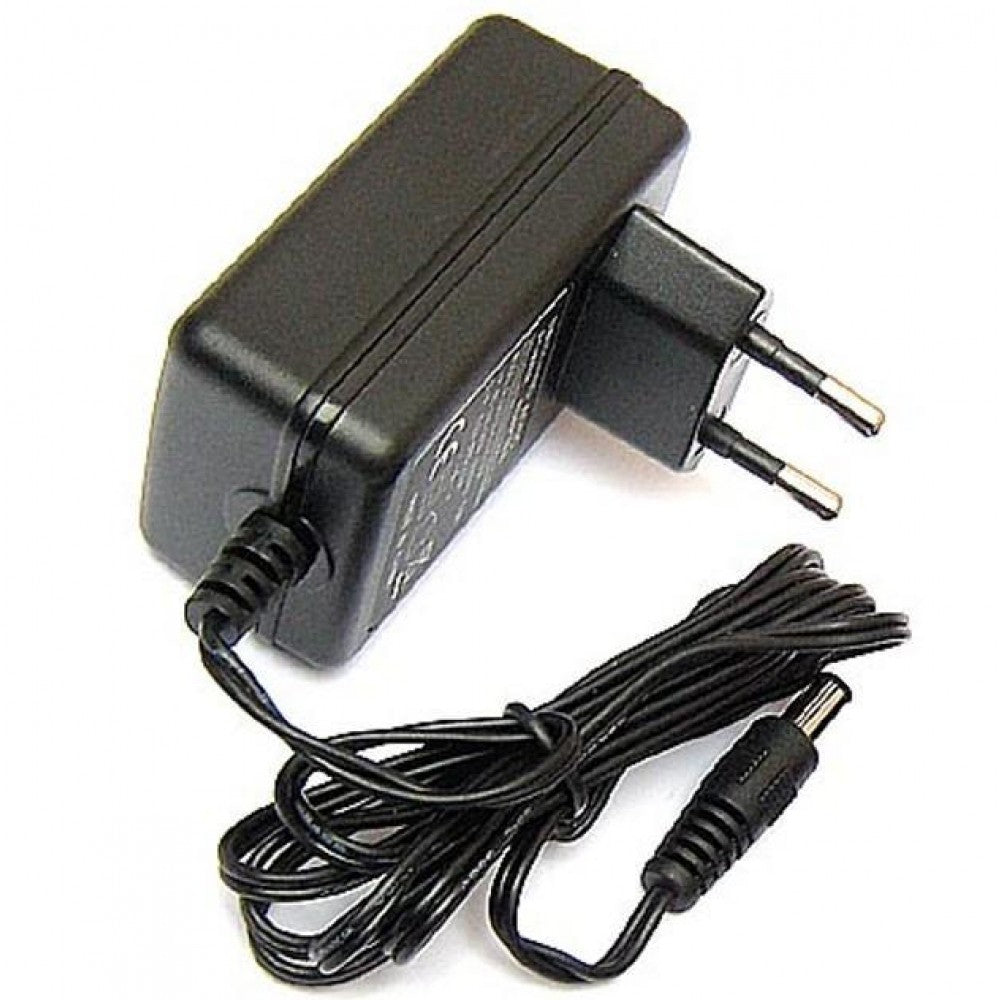

- Included 5V/2A power supply means no separate adapter purchase
- Package includes 1× Techly IDATA SPDIF-5 converter, 1× 5V/2A power supply, 1× instruction manual
