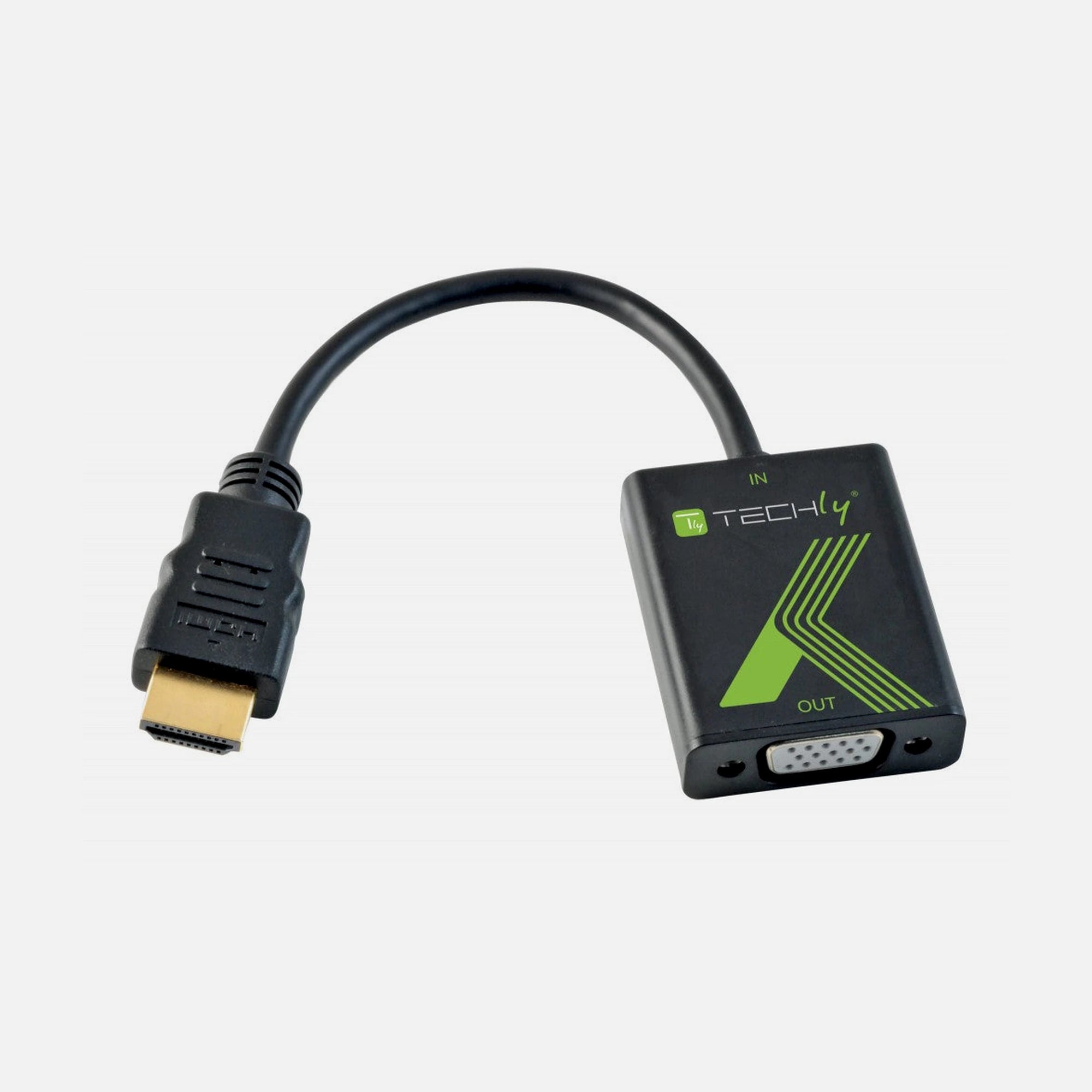

The Techly IDATA HDMI-VGA2 is a compact passive adapter that converts an HDMI digital video signal into a VGA analog output. It supports resolutions up to 1920×1200 and handles the full range of common HDMI input formats including 480p, 576p, 720p, and 1080p. No external power supply is required.

At 43×14×44mm and weighing 37g, the adapter sits unobtrusively behind a monitor or at the back of a projector. The 100mm attached HDMI cable keeps connections tidy without needing a separate lead. Certifications include CE, FCC, RoHS, and WEEE.

Key Features

• Converts HDMI (Type A Male, 19-pin) to VGA (Female) — no external power needed
• Maximum output resolution 1920×1200 (UXGA) with 9-bit DAC
• Supports HDMI input formats: 480p / 576p / 720p / 1080p
• Input bandwidth: 165MHz / 1.65Gbps per channel
• Plug and Play — no drivers or configuration required
• HDCP compatible
• Attached HDMI cable: 100±10mm; overall dimensions: 43×14×44mm

Product Benefits

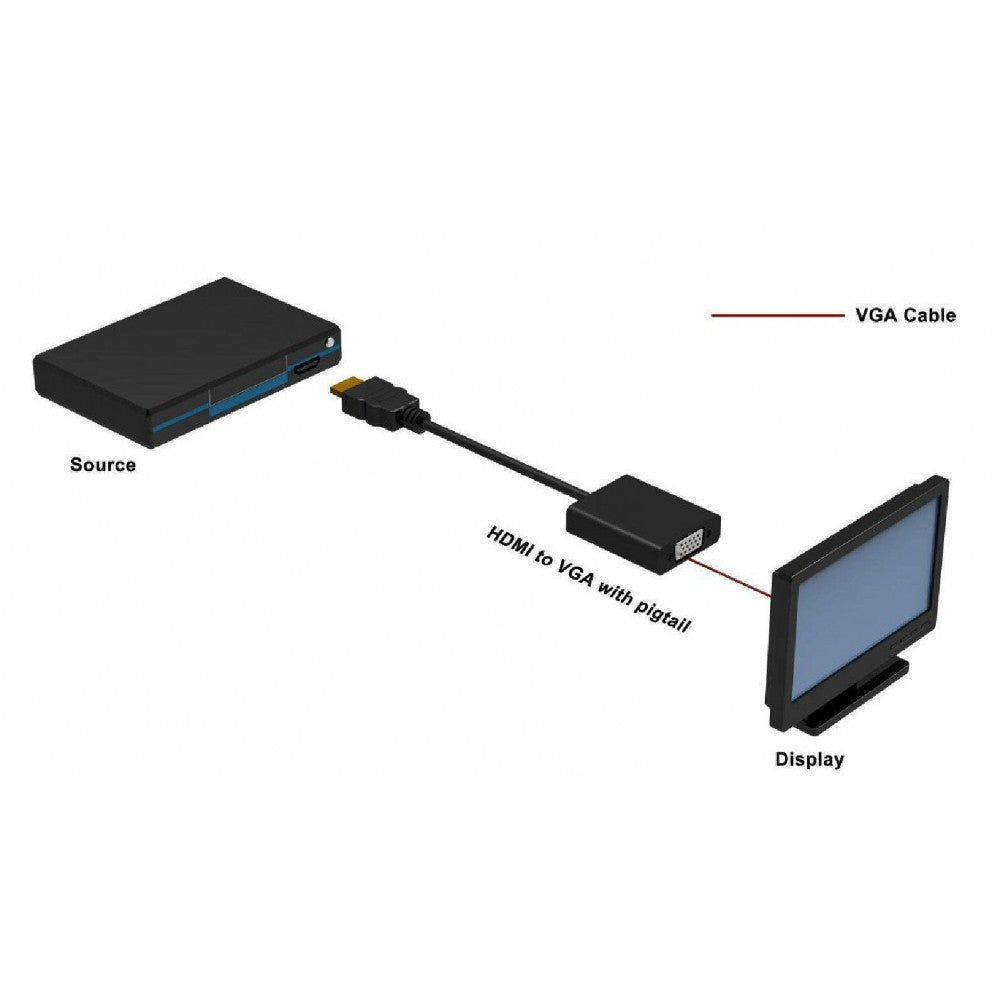

• Reuses a VGA monitor or projector with any modern HDMI-equipped source device
• No power adapter needed keeps the desktop tidy and reduces cable clutter
• Plug-and-play setup means no software installation and instant use
• 9-bit DAC delivers clean analog output with no visible banding at full UXGA resolution
• Compact 37g form factor does not strain the HDMI port on laptops or media players

Technical Specifications

• Model: Techly IDATA HDMI-VGA2
• Input Connector: HDMI Type A Male (19-pin)
• Output Connector: VGA Female
• Maximum Resolution: 1920×1200
• Supported Input Formats: 480p / 576p / 720p / 1080p
• Supported Output Formats: 480p / 576p / 720p / 1080p
• Input Bandwidth: 165MHz / 1.65Gbps per channel
• DAC: 9-bit
• Video Signal Input Level: 0.5–1.0V pp
• DDC Signal Input: 5V pp (TTL)
• Vertical Frequency: 50 / 60Hz
• HDMI Cable Length: 100±10mm
• Dimensions (L×H×D): 43×14×44mm
• Weight (net): 0.037±0.001kg
• Power Consumption (max): 2W
• Operating Temperature: 0° to +70°C
• Operating Humidity: 10%–85% RH (non-condensing)
• Storage Temperature: -10° to +80°C
• Storage Humidity: 5%–95% RH (non-condensing)
• Colour: Black
• Certifications: CE, FCC, RoHS, WEEE

Why You'll Love It

• No software, no power brick — plug in and use immediately
• Extends the working life of VGA monitors and projectors alongside newer HDMI sources
• HDCP compatibility ensures protected content plays without handshake errors

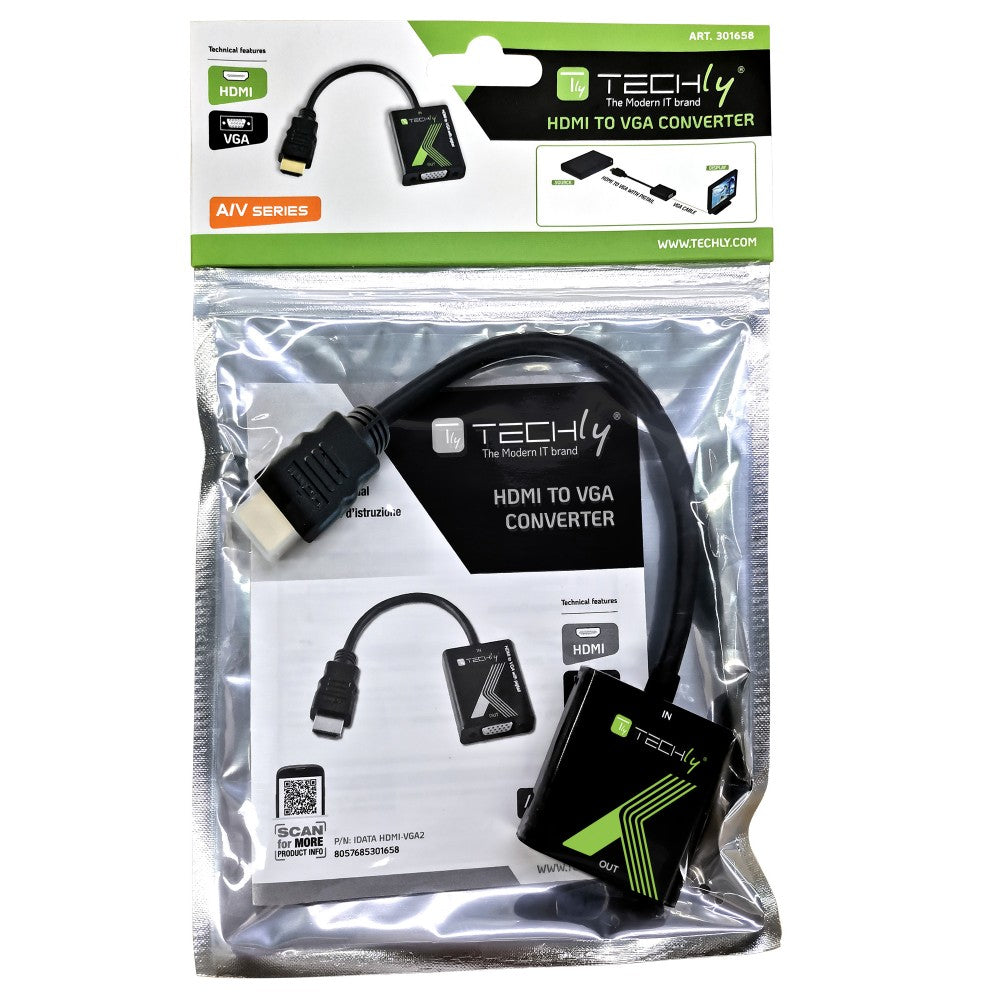

• Package includes: 1× Techly IDATA HDMI-VGA2 converter, 1× instruction manual
