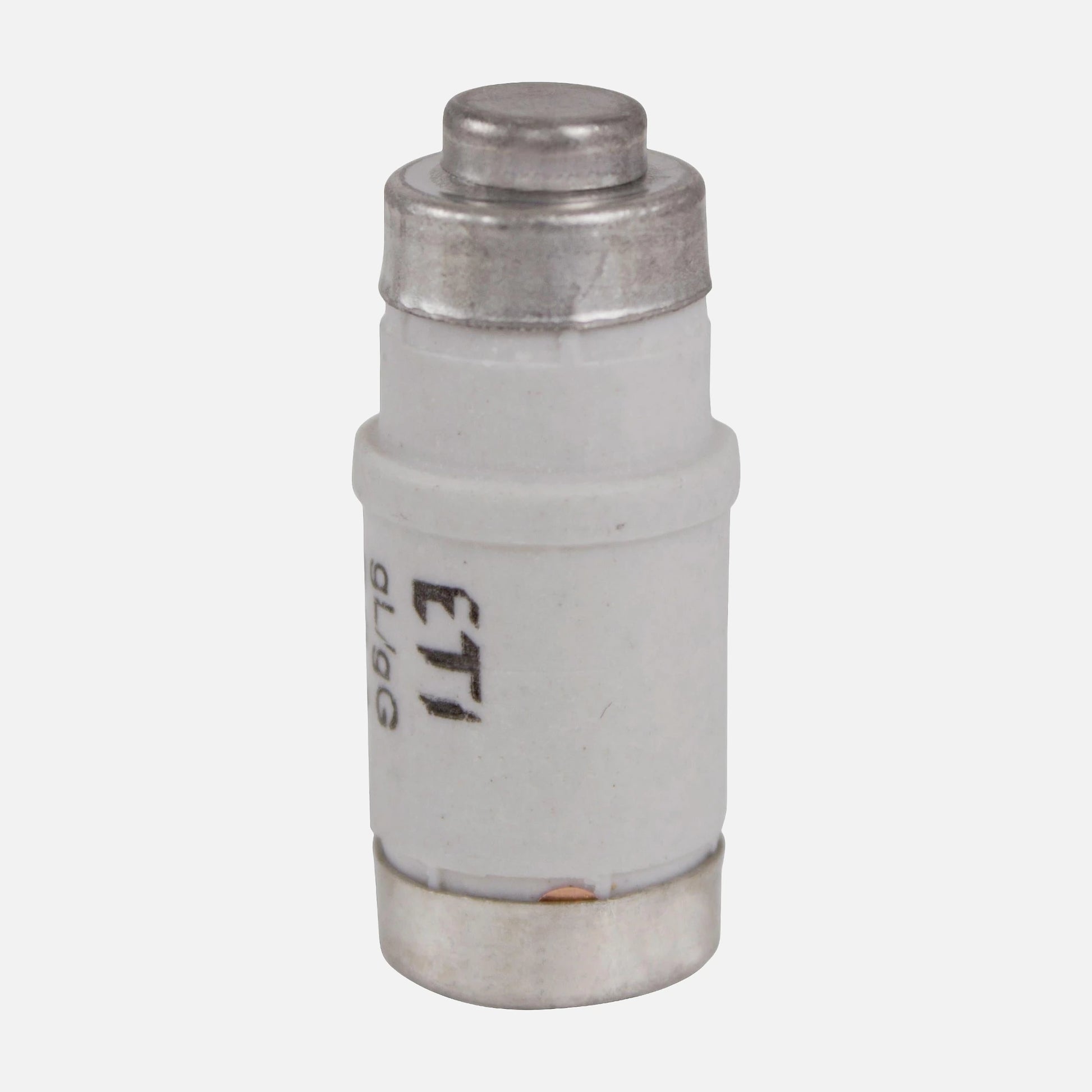

The RP Neozed fuse cartridge (D02 gG 20A/400V) is a screw-type fuse link for protecting cables and conductors in indoor electrical distribution systems. The D02 size and gG characteristic make it suitable for general cable protection in low-voltage installations.

It carries a visual status indicator at the top of the fuse body, allowing condition checks without removal. The E18 thread dimension fits D02 Neozed fuse bases and holders.

Key Features

• Neozed D02 screw fuse, gG characteristic for general cable protection
• Rated current: 20A
• Rated voltage: AC 400V / DC 250V
• E18 thread for D02 fuse bases
• Status indicator at the top of the fuse for visual inspection
• Compliant with DIN EN 60269-1 and DIN EN 60269-3

Product Benefits

• gG characteristic provides full-range protection from overload through short-circuit
• Top-mounted indicator shows fuse condition without removing the cartridge
• AC breaking capacity of 50kA handles fault currents in low-voltage distribution boards
• DC breaking capacity of 8kA suits DC-side protection requirements
• Screw-type design allows tool-free cartridge replacement in D02 holders

Technical Specifications

• Description: D02 gG 20A / 400V
• Class Name: Fuse link
• Rated Current: 20A
• Type: D
• Size: D02
• Characteristic: gG
• Rated Voltage AC: 400V
• Rated Voltage DC: 250V
• Thread Dimension: E18
• Status Indicator: Indicator at the top of the fuse
• Breaking Capacity AC: 50kA
• Breaking Capacity DC: 8kA
• Standards: DIN EN 60269-1, DIN EN 60269-3

Why You'll Love It

• D02 format is the most widespread Neozed size, ensuring easy sourcing of compatible bases
• Visual top indicator speeds up inspection during routine maintenance rounds
• 50kA AC and 8kA DC breaking capacities meet the demands of modern low-voltage panels
• Package includes 1× RP Neozed fuse cartridge 20A/D02/gG
