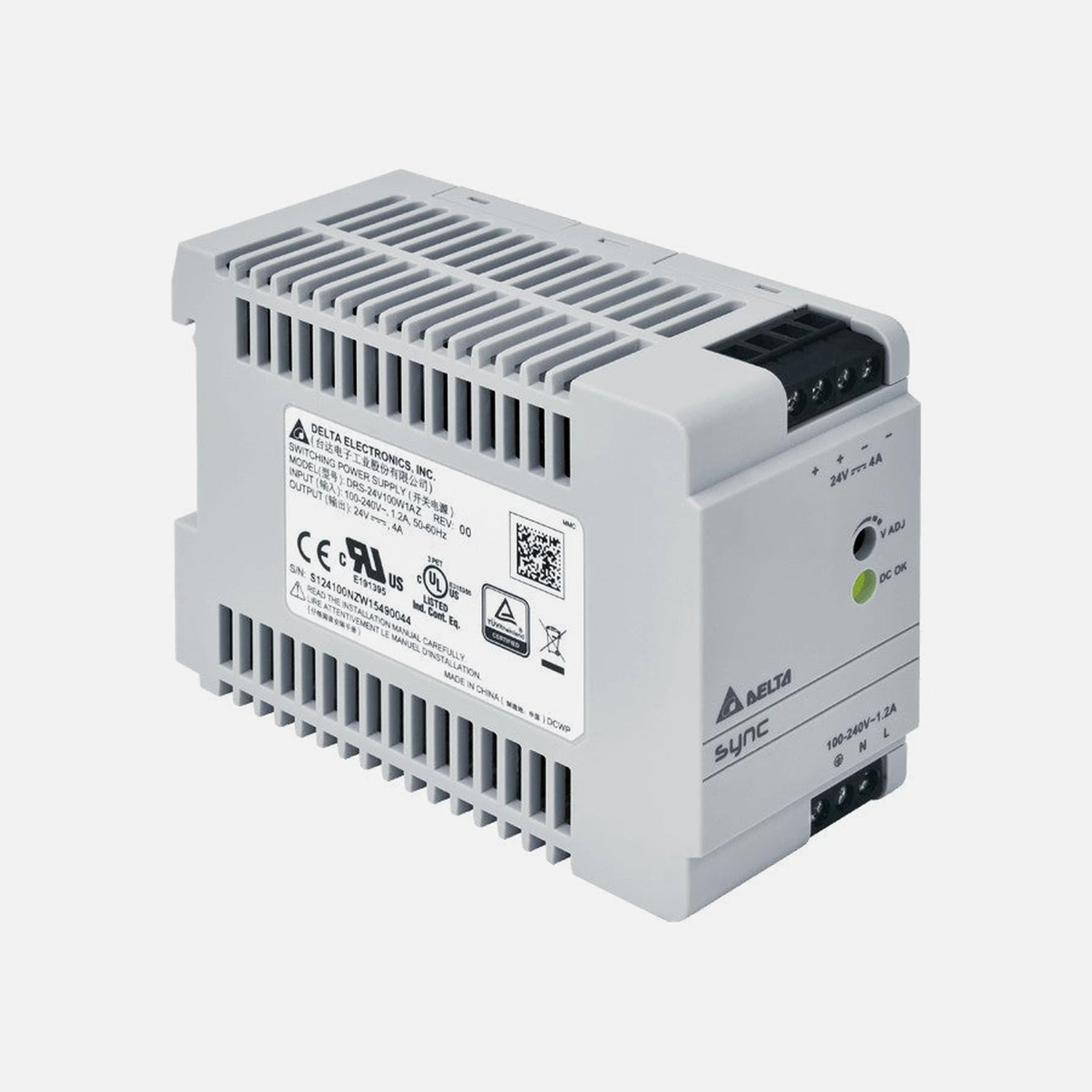

The MPL Sync DRS-24V100W1AR is a 100W switching power supply designed for installation on DIN Rail TS-35/7.5 or TS-35/15. It outputs a stable 24V DC and accepts a wide AC input range of 90–264V, making it suitable for varied mains environments.

Free-air convection cooling removes the need for a fan, and the integrated active PFC function reduces harmonic distortion on the supply line. Protection class I and IP20 rating are standard for enclosed cabinet use.

Key Features

• Constant voltage output: 24V DC
• Wide AC input range: 90–264V AC
• DIN Rail mounting: compatible with TS-35/7.5 and TS-35/15 rails
• Integrated active PFC function
• Free-air convection cooling — fanless operation
• Four built-in protections: short circuit, overload, overvoltage, over-temperature

Product Benefits

• Wide input range accommodates unstable or international mains without adjustment
• Active PFC reduces reactive power draw and improves efficiency on the supply line
• Fanless cooling means silent operation and no moving parts to service
• Four-way protection safeguards both the unit and connected loads from fault conditions
• Compact 7.5 × 10.0 × 4.0 cm body occupies minimal rail space in control panels

Technical Specifications

• Model: DRS-24V100W1AR
• Output Voltage: 24V DC
• Power: 100W
• AC Input Voltage: 90–264V AC
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Protection Class: I
• IP Rating: IP20
• PFC: Active (integrated)
• Cooling: Free-air convection
• Programmable: No
• Dimensions (L × W × H): 7.5 × 10.0 × 4.0 cm
• Package Dimensions: 8.5 × 11.5 × 5 cm
• Package Weight: 0.390 kg

Why You'll Love It

• Snap-on DIN rail mounting allows fast installation and removal without tools
• IP20 protection class suits standard closed electrical enclosures
• Fanless design eliminates maintenance intervals for the cooling system
• Package includes 1× MPL Sync DRS-24V100W1AR rail power supply
