MPL MRS-75-12-U-C Enclosed Power Supply 12 V 6 A 72 W – Universal AC, Metal 1U Case
MPL MRS-75-12-U-C Enclosed Power Supply 12 V 6 A 72 W – Universal AC, Metal 1U Case
Hurry up, only 4 items left in stock.
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description

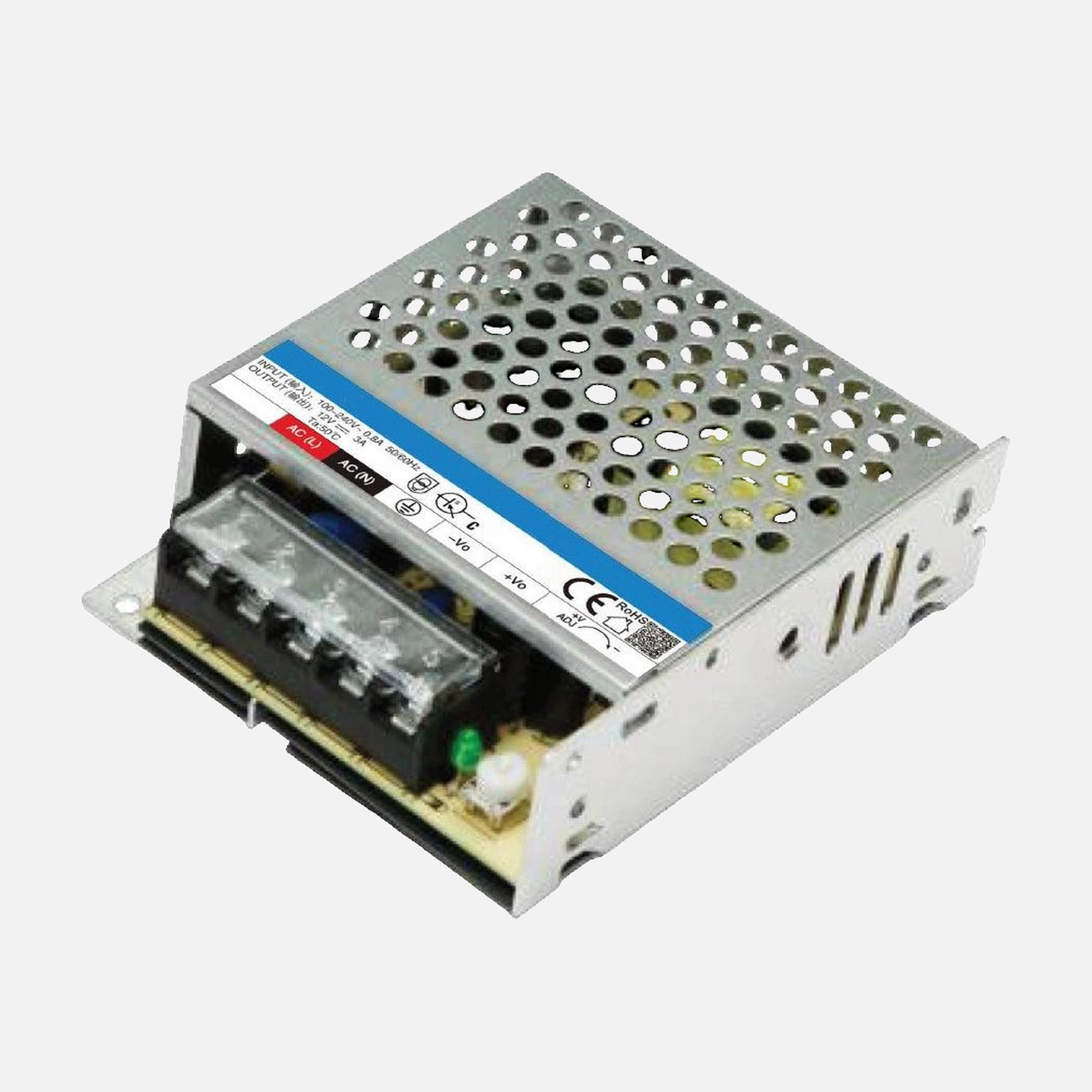

The MPL MRS-75-12-U-C is a 72W enclosed metal power supply providing a regulated 12V DC output at up to 6A. Its universal AC input accepts 85–264VAC or 120–373VDC, making it compatible with mains supplies worldwide without adjustment.
The low-profile 1U metal case (AL1100 and SGCC materials) measures 9.9 x 9.7 x 3.0cm. An adjustable output voltage from 10.2V to 13.8V (minimum) allows fine-tuning for the connected load. Built-in protections cover over-current, short circuit, over-voltage, and over-temperature conditions.
Key Features
- 12V DC output at 6A maximum — 72W total output power
- Universal AC input: 85–264VAC / 120–373VDC full range
- Adjustable output voltage range (MIN.): 10.2V to 13.8V
- Low no-load power consumption: less than 0.5W
- Built-in protections: over-current, short circuit, over-voltage, over-temperature
- LED power-on indicator
- Low 1U profile metal enclosure (AL1100, SGCC)
Product Benefits
- Universal input eliminates the need for a voltage selector — works on any mains supply from 85 to 264VAC
- 72W output sits between the 50.4W and 102W models, covering mid-range LED and CCTV loads
- Adjustable output allows compensation for cable drop or fine-tuning for sensitive LED loads
- No-load consumption below 0.5W keeps standby running costs minimal
- Wide operating temperature range of -30°C to +70°C allows use in unheated or outdoor enclosures
Technical Specifications
- Model: MRS-75-12-U-C
- Output Voltage: 12V DC
- Output Current: 6A
- Output Power: 72W
- Input Voltage: 85–264VAC / 120–373VDC
- Adjustable Voltage Range (MIN.): 10.2V to 13.8V
- No-load Power Consumption: <0.5W
- Protections: Over-current, short circuit, over-voltage, over-temperature
- Operating Temperature: -30°C to +70°C
- IP Rating: IP20
- Safety Standards: EN62368-1, EN60335-1, EN61558-1, EN61558-2-16
- Design Compliance: EN61558 (OVP cat. III)
- Dimensions (L×W×H): 9.9 x 9.7 x 3.0cm
- Case Material: Metal (AL1100, SGCC)
- Net Weight: 0.220kg
Why You'll Love It
- Compact 9.9 x 9.7 x 3.0cm footprint fits in standard enclosures alongside other DIN-rail or panel components
- Mid-range 72W output covers typical LED strip runs and small multi-camera CCTV setups without oversizing
- Safety certification to EN62368-1, EN60335-1, EN61558-1, and EN61558-2-16 provides purchase confidence
- Package includes 1x MPL MRS-75-12-U-C Metal Power Supply 12V/6A/72W
