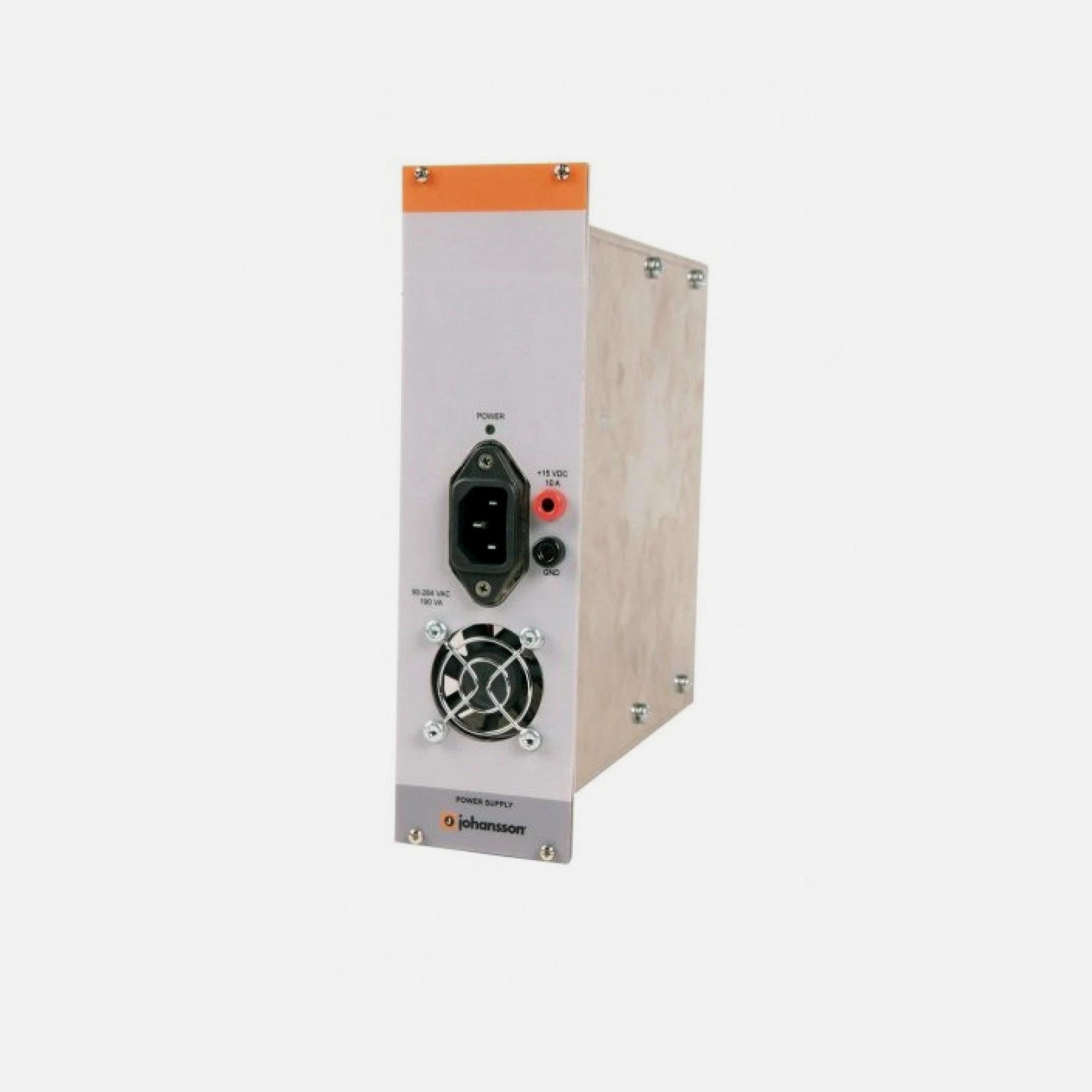

The Johansson Transmodulator 5050 Power Supply is a dedicated power adapter for Johansson HEADEND and IPTV installations. It accepts a wide AC input range and delivers stable 15 VDC output to power the modular slices and components of the 5050 system.

Designed for rack-mounted deployments, the unit occupies a defined slot within the 19" rack enclosure and supplies DC power directly to the RF inputs of connected modules via banana sockets.

Key Features

• Wide AC input range: 90 to 264 V — accommodates varying mains voltages without adjustment
• Output: 15 VDC at 10 A — sufficient to power the full complement of Johansson 5050 modules
• DC power delivered to RF input modules at 15 VDC via the power supply unit
• LED indicators: Power and Alarm status — clear visual feedback on supply health
• Sized for 19" rack installation within the 5050 rack system (9 + power slices per rack)

Product Benefits

• Universal mains compatibility removes the need for voltage selection or external stabilisers
• Centralised power management simplifies wiring and reduces points of failure in the headend
• Dedicated alarm LED allows installers to identify supply faults immediately without removing modules
• Integrated rack form factor keeps the installation tidy within standard 19" headend enclosures

Technical Specifications

• Input voltage: 90 to 264 V AC
• Output voltage: 15 VDC
• Output current: 10 A
• DC power to RF input: 15 VDC from power supply
• LED indicators: Power, Alarm
• Dimensions: 5RU x 8TE x 195 mm (9 + power slices per 19" rack)
• Compatibility: Johansson Transmodulator 5050 HEADEND and IPTV systems

Why You'll Love It

• Wide input tolerance means no configuration required when deploying in different premises or countries
• Clearly labelled alarm LED makes fault-finding fast during commissioning and maintenance
• Rack-native form factor integrates seamlessly into existing Johansson 5050 rack builds
• Single-unit power source keeps the headend rack organised and professionally wired
