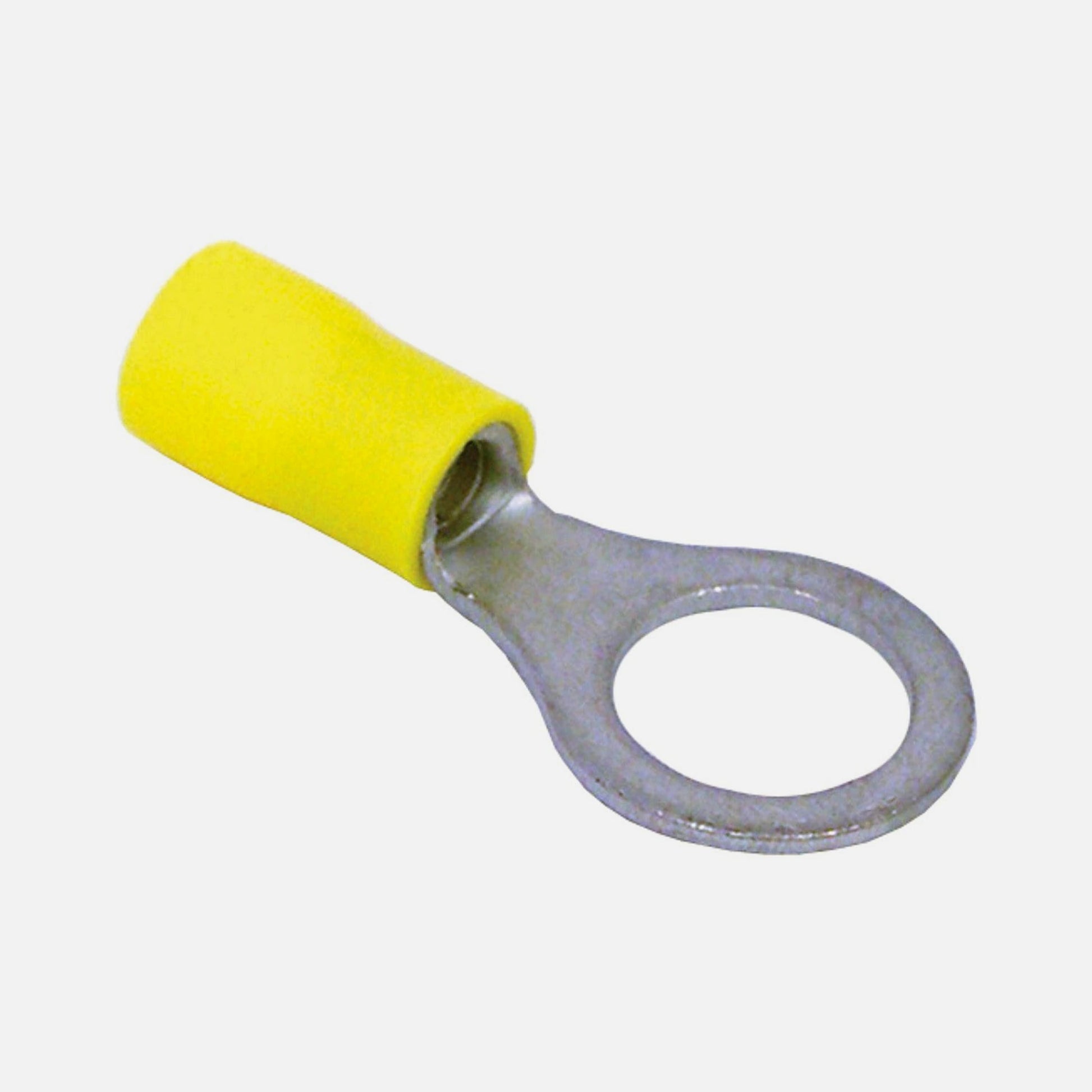

The GBC 18.3922.30 is a pre-insulated eyelet terminal for cables in the 4–6 mm² cross-section range (AWG 12–10). It fits M5 bolts via a Φ5.3mm hole and combines a PVC insulation sleeve with a tin-plated copper barrel, rated to 300V.

At 25.8mm long with a 9.5mm external diameter, it handles the heavier conductors used in motor feeds, earthing, and power distribution panels with M5 fasteners. The yellow sleeve follows colour conventions for the 4–6 mm² range. Each pack contains 10 pieces.

Key Features

• Designed for cable cross-sections 4–6 mm² (AWG 12–10)
• M5 screw type with Φ5.3mm hole diameter for direct bolt fastening
• Yellow PVC insulation sleeve — colour code for 4–6 mm² range
• Tin-plated copper contact for corrosion-resistant conductivity
• Dimensions: 25.8mm length, 9.5mm external diameter

Product Benefits

• Pre-insulated design removes the need for separate sleeving after crimping heavier cables
• Yellow colour coding differentiates 4–6 mm² terminals from smaller sizes on the same panel
• Tin plating prevents oxidation, ensuring a reliable contact under load
• 300V rating suits motor feed, earthing, and distribution wiring up to this conductor size
• Pack of 10 is sufficient for a standard multi-circuit panel section

Technical Specifications

• Model / MPN: 18.3922.30
• Cable Section: 4–6 mm²
• AWG Range: 12–10
• Colour: Yellow
• Screw Type: M5

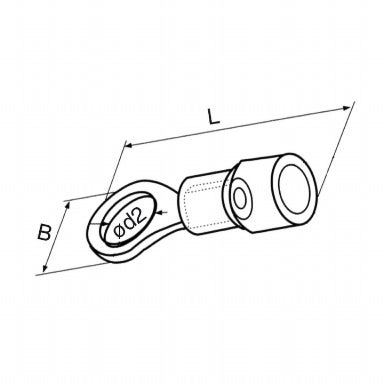

• Screw Hole Diameter (d2): 5.3mm
• External Diameter (B): 9.5mm
• Length: 25.8mm
• Max Voltage: 300V
• Insulation Material: PVC
• Contact Material: Tin-plated copper
• Pack Quantity: 10 pcs

Why You'll Love It

• EAN 8023389422579 confirms genuine GBC stock
• Sized for 4–6 mm² conductors — the typical range for motor feeds and earthing cables
• Yellow sleeve makes 4–6 mm² terminations immediately visible among smaller terminals
• Ready to crimp straight from the pack — no additional insulation step required
