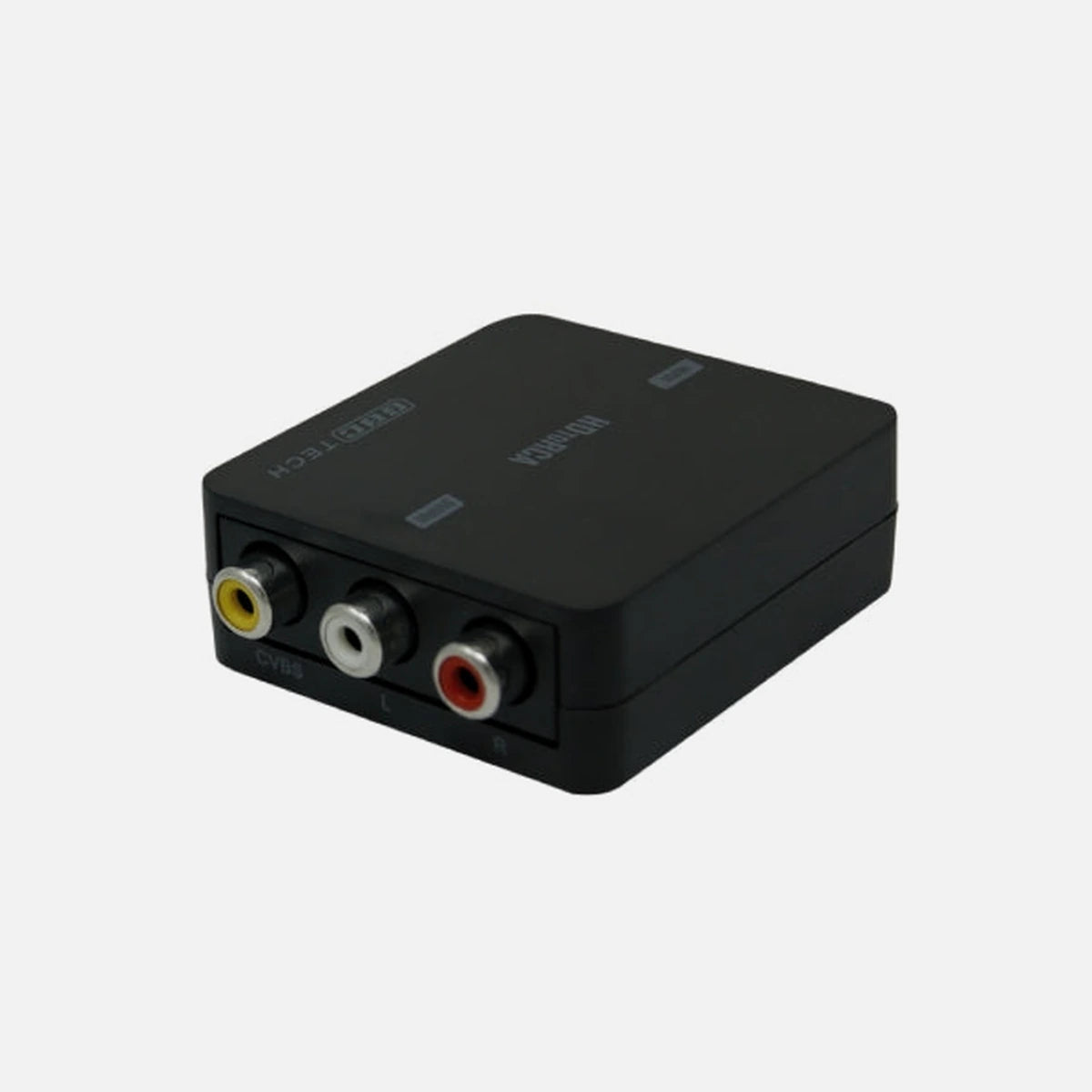

The GBC 14.2810.56 accepts HDMI sources at resolutions up to 1920×1080 and downscales the signal to an analog AV/RCA output. The output resolution can be selected between 576i and 480p to match the capability of the connected legacy display.

With 6.75 Gbps bandwidth and HDCP 1.3 support, the converter handles high-bandwidth HDMI sources cleanly. Power is supplied via a standard 5V USB connection, keeping the setup simple.

Key Features

• HDMI input accepting resolutions up to 1080p at 60Hz
• AV/RCA composite output with selectable 576i or 480p downscaling
• HDCP 1.3 support for compatibility with copy-protected sources
• 6.75 Gbps bandwidth
• 5V USB bus power (USB power source not included)
• Compact black housing

Product Benefits

• Extends the life of older CRT or analog monitors by connecting them to current HDMI devices
• Output mode selection (576i / 480p) matches the converter to the exact capability of the legacy display
• No separate power adapter required — any standard USB port supplies the needed 5V
• HDCP 1.3 support ensures compatibility with satellite receivers, cable boxes, and Blu-ray players
• Single cable conversion removes the need for additional signal processors

Technical Specifications

• Model: GBC 14.2810.56
• Input: HDMI
• Output: AV / RCA
• Max Input Resolution: 1080p @ 60Hz
• Max Output Resolution: 800×600 pixels
• Bandwidth: 6.75 Gbps
• Downscaling: 576i and 480p selectable
• HDCP Support: 1.3
• Power Supply: 5V USB (not included)
• Colour: Black

Why You'll Love It

• Instantly connects latest-generation HDMI DVRs to monitors and TVs with only AV/RCA inputs
• No drivers or software needed — plug in and select output resolution
• USB power means any phone charger or PC USB port keeps it running

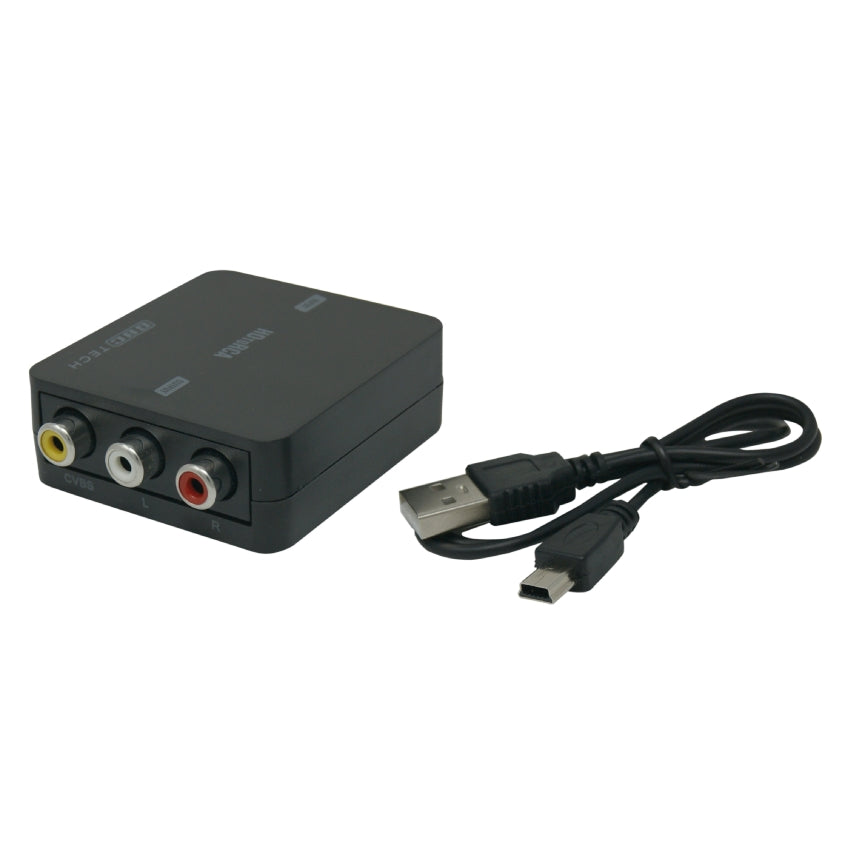

• Package includes: 1× GBC 14.2810.56 HDMI to AV/RCA converter, 1× instruction manual
