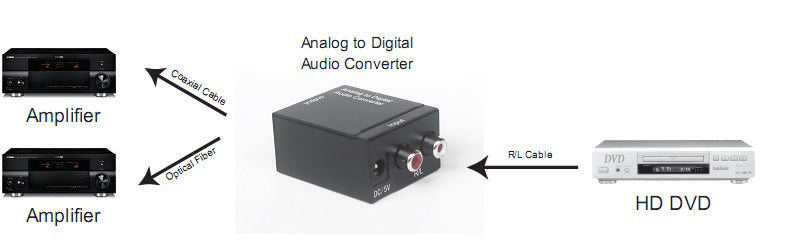

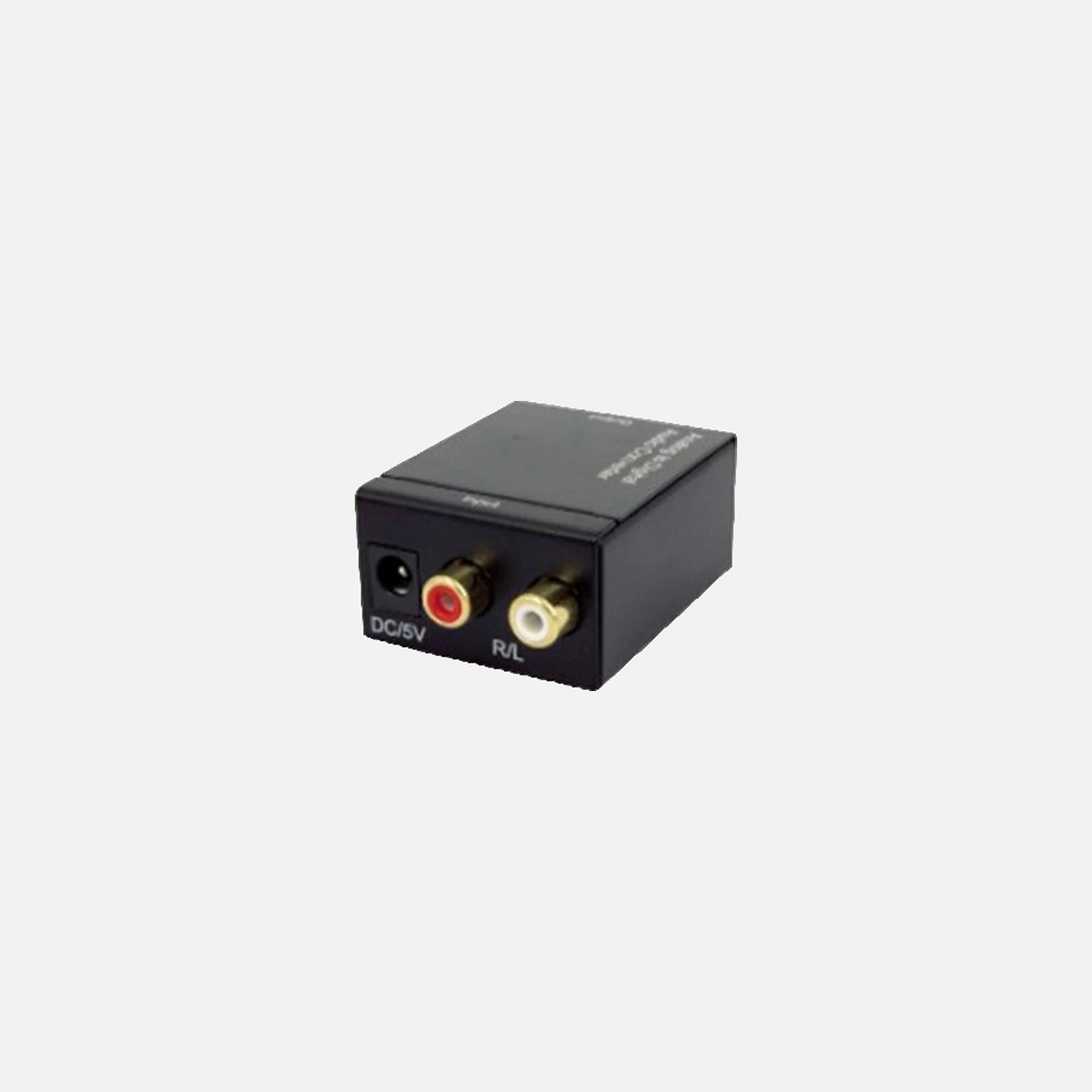

The GBC 14.1536.15 is an analog-to-digital audio converter that accepts a stereo R/L analog input via two RCA connectors and simultaneously outputs an uncompressed 2-channel LPCM digital audio signal through both a Toslink optical connector and a coaxial RCA connector. It is designed for home or professional audio switching environments.

The converter samples at 48 KHz, operates from a 5V DC external power supply, and consumes a maximum of 0.5 W. It ships with a power supply and instruction manual.

Key Features

• Simultaneous Toslink optical and coaxial RCA digital outputs
• Stereo R/L RCA analog input
• Uncompressed 2-channel LPCM digital audio output
• Output sampling rate: 48 KHz
• Electromagnetic-noise-free signal transmission

Product Benefits

• Dual simultaneous outputs allow connection to two digital devices at once
• LPCM output preserves full uncompressed audio quality
• Low 0.5 W maximum power consumption minimises running costs
• Compact and simple to install with included 5V DC power supply
• Noise-free transmission protects audio signal integrity

Technical Specifications

• Model: GBC 14.1536.15
• Input: Stereo R/L (2 x RCA)
• Output: Toslink optical + 1 x RCA coaxial (simultaneous)
• Audio Format: Uncompressed 2-channel LPCM
• Sampling Rate: 48 KHz
• Power Supply: 5V DC @ 1A (external, included)
• Power Consumption: 0.5 W (max)
• Operating Temperature: 0°C to 70°C
• Operating Humidity: 10% to 85% RH (non-condensing)
• Storage Temperature: -10°C to +80°C
• Storage Humidity: 5% to 90% RH (non-condensing)

Why You'll Love It

• No rewiring required — plugs directly into existing RCA analog outputs
• Toslink output eliminates ground-loop noise over longer cable runs
• Coaxial output suits AV receivers and DACs without an optical input
• Includes everything needed: converter, 5V DC power supply, and instruction manual
