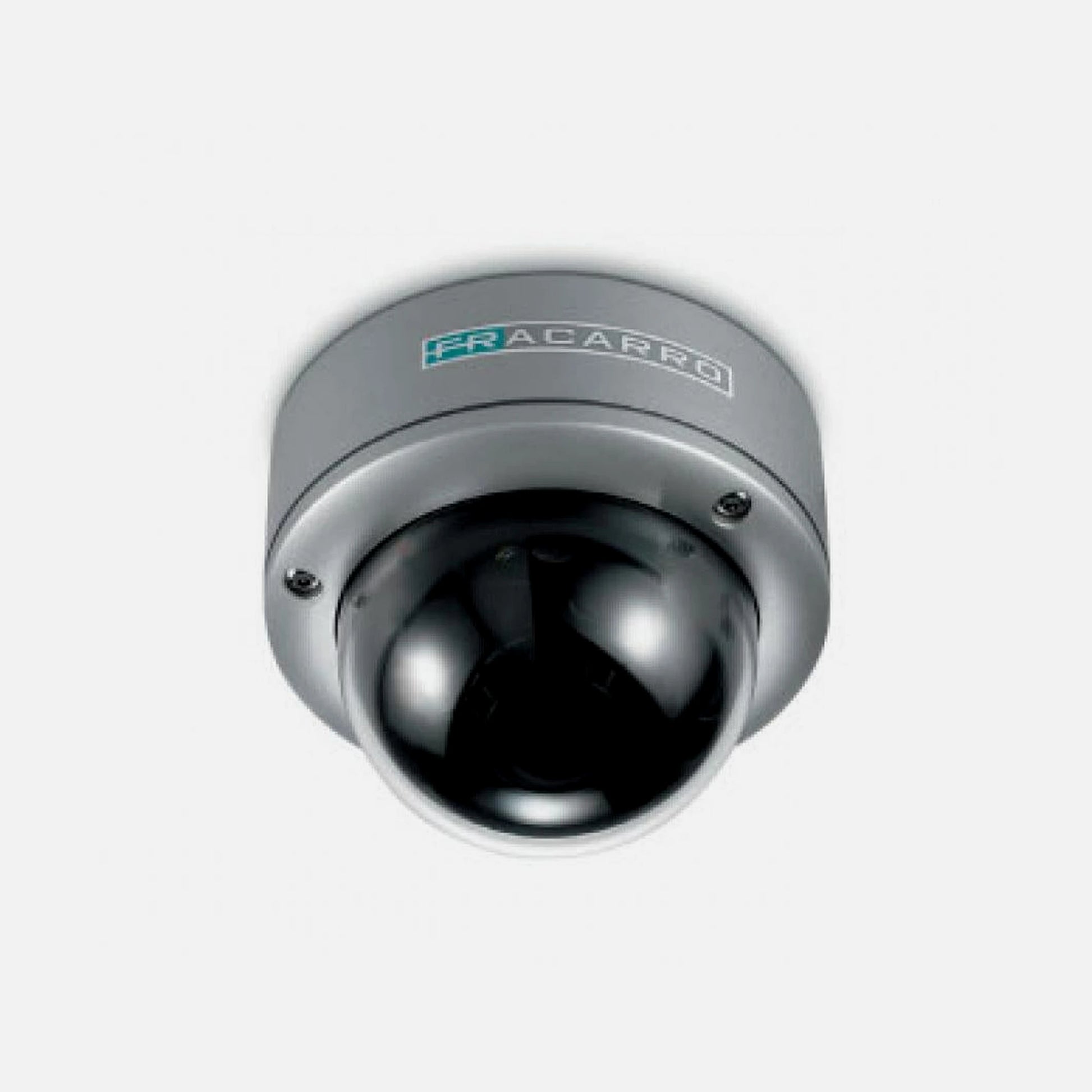

The Fracarro CDIR10-V66VH is a varifocal dome camera built for installations where both weather protection and physical security are required. Its IP66-rated housing resists water and dust ingress, while the anti-vandal construction withstands shocks up to 656.1 kg. The Sony HQ1 DSP and 1/3" Sony Super HAD CCD sensor deliver 540-line resolution with active infrared illumination reaching 10–15 m indoors and 5–10 m outdoors.

Ten infrared LEDs at 850 nm are controlled by a lux-sensing delay switch, reducing the minimum illumination to 0 lux when active. The camera runs on 12 V DC and outputs a composite PAL signal over BNC.

Key Features

• 1/3" Sony Super HAD colour CCD sensor with Sony HQ1 DSP
• 540-line horizontal TV resolution (795 × 596 pixels)
• 10 × 850 nm infrared LEDs with lux-sensor delay control (1.5–5 lux)
• IR illumination coverage: 10–15 m (indoors), 5–10 m (outdoors)
• Mechanical IR cut filter for accurate daytime colour reproduction
• 2.9–10 mm aspherical varifocal lens at F1.2 — manual focus and zoom, internal
• Galvanometric auto iris with internal manual regulation
• IP66 weatherproof and anti-vandal housing — shock resistance up to 656.1 kg

Product Benefits

• 0 lux minimum illumination with IR LEDs active — full image even in total darkness
• 0.25 lux minimum illumination in colour mode for low-light ambient monitoring
• IP66 rating prevents water and dust ingress, extending service life in exposed positions
• Anti-vandal shock resistance to 656.1 kg protects the unit in public-facing installations
• Mechanical IR cut filter switches automatically between day colour and night IR modes for accurate colour during daylight

Technical Specifications

• Sensor: CCD 1/3" Sony Super HAD, colour
• DSP: Sony HQ1
• Horizontal resolution: 540 lines TV (795 × 596 pixels)
• Minimum illumination: 0.25 lux / 0 lux with IR LEDs active
• Signal / noise ratio: > 50 dB (AGC Off)
• Video output: Composite 1 Vpp, 75 Ω, BNC, PAL
• Synchronisation: Internal
• Lens: Aspherical 2.9–10 mm @ F1.2
• Focus and zoom: Manual, internal
• Auto iris: Galvanometric, internal manual regulation
• IR filter: Mechanical
• IR LEDs: 10 × 850 nm
• IR light control: Lux-sensor with delay, 1.5–5 lux
• IR coverage: 10–15 m (indoors), 5–10 m (outdoors)
• Protection: IP66
• Anti-vandal shock resistance: Up to 656.1 kg
• Power supply: 12 V ± 10%
• Power consumption: 223 mA (IR LEDs off) / 350 mA (IR LEDs on)
• Working temperature: -10 ÷ +50 °C
• Dimensions: 112.2 × 140 mm
• Weight: 950 g
• AGC (Auto Gain Control): On / Off
• AWB (Auto White Balance): On (2500–9200 K)
• BLC (Backlight Compensation): On / Off
• AES (Auto Electronic Shutter): On 1/50–1/100,000 s / Off 1/50 s
• FL (Flicker Reduction): On / Off

Why You'll Love It

• IP66 rating and anti-vandal construction in one unit — no need to source a separate protective enclosure
• IR coverage of up to 15 m indoors ensures the camera is effective even when site lighting is switched off overnight
• Mechanical IR cut filter preserves accurate colour rendering during daytime without manual intervention
• Varifocal lens and manual iris adjustment allow fine-tuning of the image on-site after mounting
