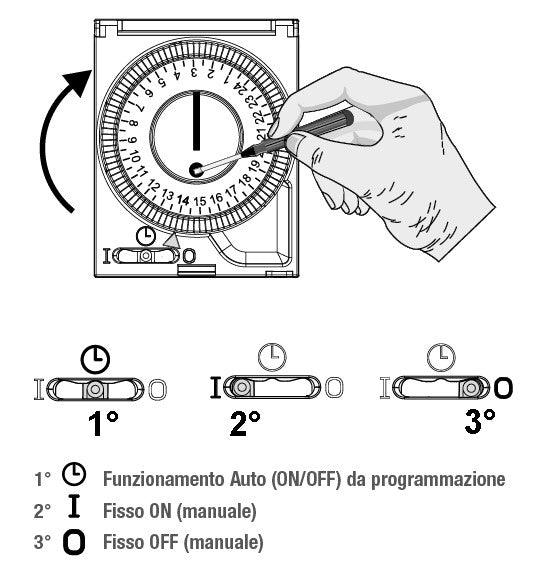

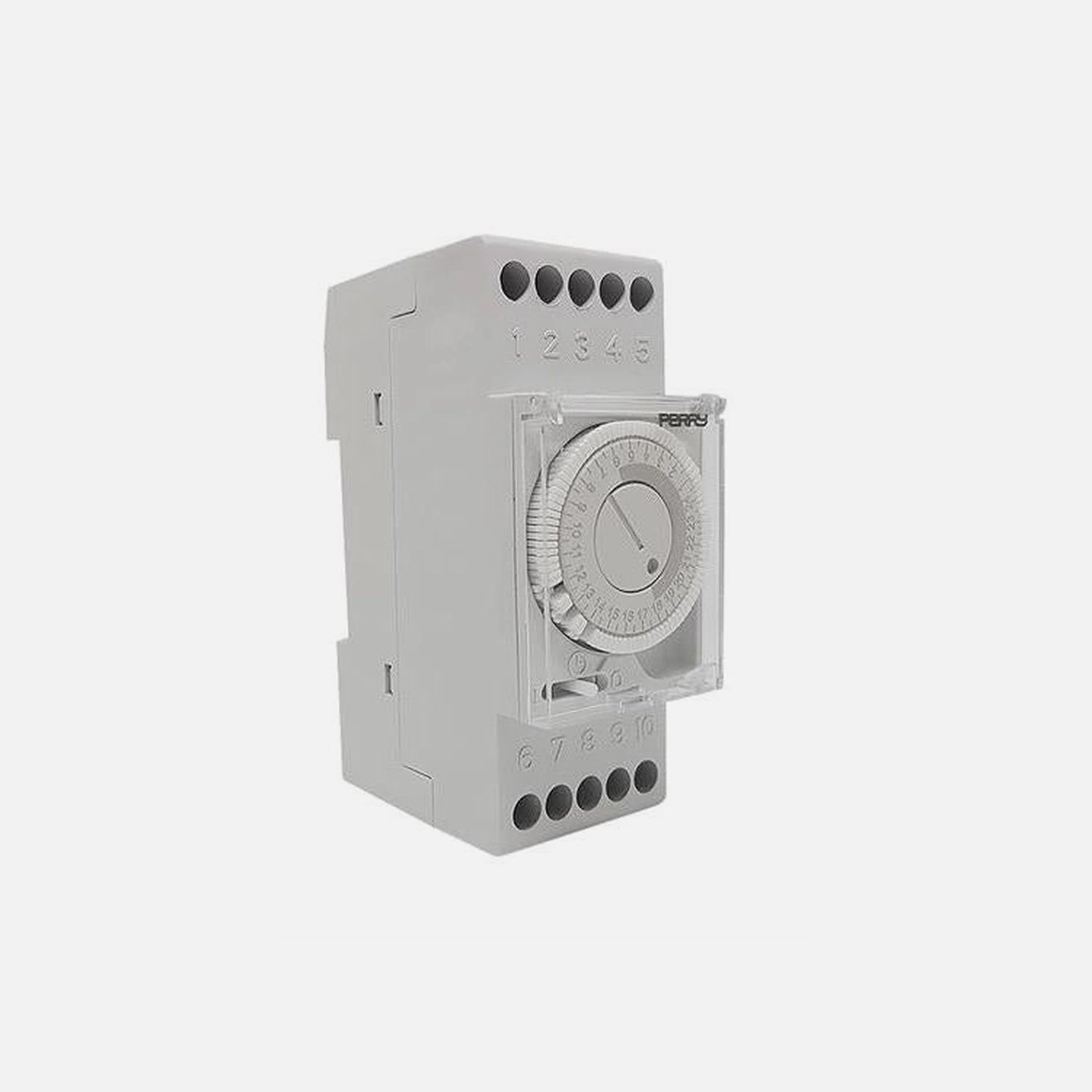

The 1IO0032 daily mechanical timer mounts on DIN rail, on a wall, or on a back panel and takes up 2 DIN module positions. Time is set by rotating the mechanical crown; programming is done by pushing or releasing the 15-minute push-tabs around the clock face.

In the event of a power outage a built-in NiCd rechargeable battery keeps the clock running for approximately 150 hours, so schedules are not lost during brief or extended supply interruptions. Suitable for homes, industrial buildings, schools, offices, and public spaces.

Key Features

• Mechanical daily timer — no digital programming or batteries required for normal operation
• Up to 96 ON/OFF switching programs per 24-hour cycle
• Minimum activation interval: 15 minutes per ON or OFF step
• 150-hour power reserve via NiCd rechargeable battery
• DIN rail, wall, or back-panel mounting in 2 DIN module width

Product Benefits

• Mechanical crown adjustment gives quick, tactile time-setting without menus or tools
• 96 programs per day allow fine control of lighting, heating, or equipment schedules
• 150-hour backup prevents schedule loss during power outages
• IP30 protection rating suits enclosed electrical panel installations
• Thermoplastic grey RAL 7035 casing matches standard DIN-rail panel colour conventions

Technical Specifications

• Supply Voltage: 230V ac 50–60Hz
• Contact Rating: 16(4) A / 250V ac
• Max Programs (ON-OFF): 96
• Minimum Activation Time: 15 minutes
• Max Switchable Power: 3500 VA (single contact)
• Max Cable Section at Terminals: 2.5 mmq
• Protection Degree: IP30
• Output Type: Captive Screw Terminals
• Insulation Class: II
• Max Power Reserve: approx. 150 hours
• Backup Type: NiCd rechargeable battery
• Time Tolerance: ±1 sec/day
• Operating Temperature: -10°C to +50°C
• Installation Type: DIN rail / wall / back panel
• Casing: Thermoplastic, grey RAL 7035
• Programming: Mechanical key crown (15-minute blocks)
• Dimensions (L×W×H): 3.5×6×9 cm
• Package Dimensions (L×W×H): 5×8×11 cm

Why You'll Love It

• No software, no app, no Wi-Fi — purely mechanical operation keeps setup straightforward
• 2 DIN width fits neatly alongside circuit breakers and contactors in a standard panel
• The 150-hour NiCd backup means a weekend power cut won't reset your schedule
• Package contains: 1× Daily Mechanical Timer 1IO0032
