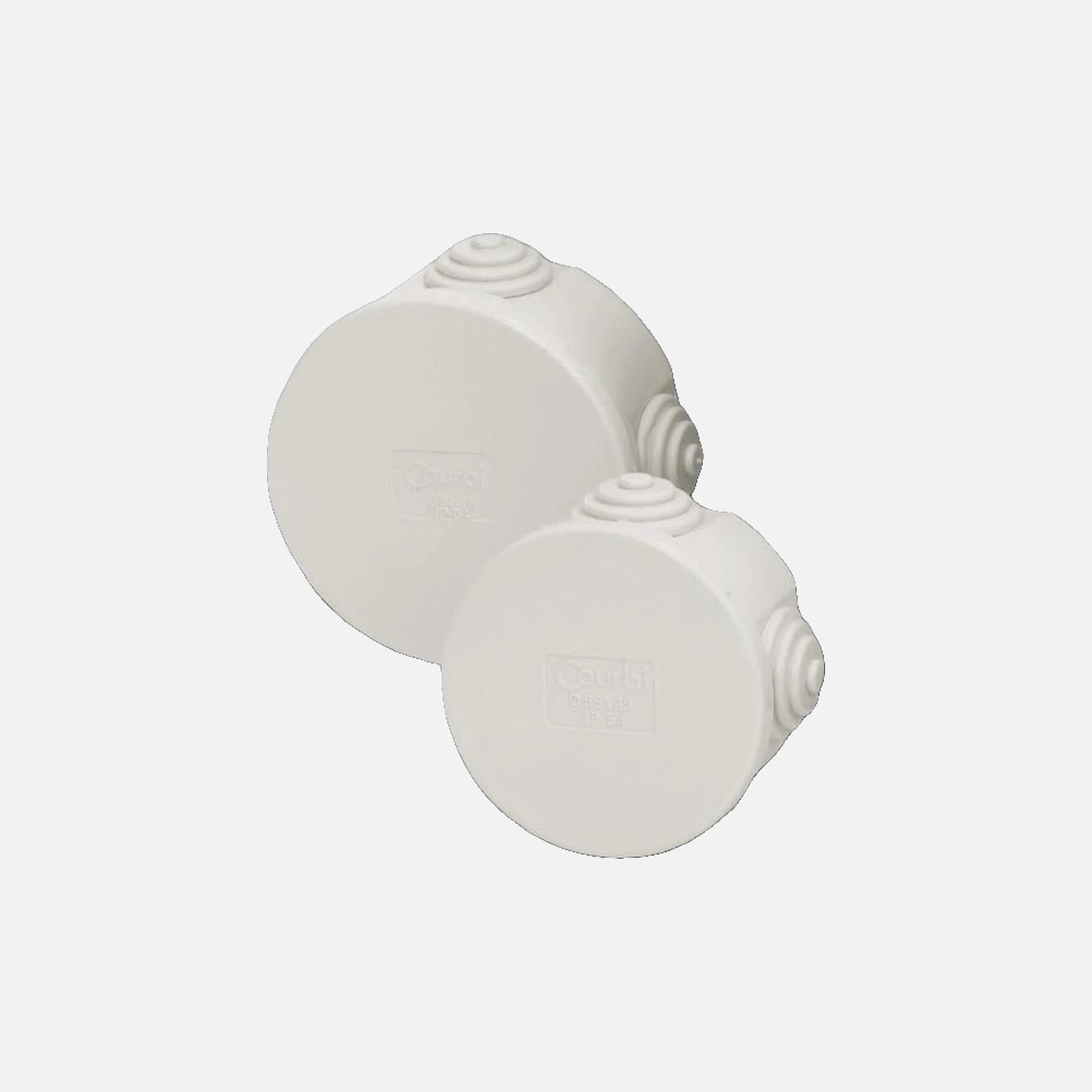

This larger-format circular junction box is built from a non-corrosive, impact- and pressure-resistant polymer with UV protection, flame-retardant and self-extinguishing properties. At 80×40mm it offers more internal cable capacity than the 65×35mm model while still fitting standard surface-mount locations, and it delivers IP 54 protection against dust and water ingress.

Side caps are specially designed for easy cutting and cable or conduit insertion. The box is compatible with Racor, Spiral COMBO – DOMO – FORTE, Rigid COMBO – DOMO – FORTE, SiBi®, and Courflex® wiring accessories, and it meets IEC 60670–1/2002 standards for junction boxes.

Key Features

• Round form factor — 80×40mm — larger internal volume for multi-cable surface-mount junctions
• IP 54 protection against dust and water ingress
• Pre-formed side caps for straightforward cutting and cable/conduit entry
• Compatible with Racor, Spiral COMBO – DOMO – FORTE, Rigid COMBO – DOMO – FORTE, SiBi®, and Courflex® accessories
• UV-resistant and non-corrosive polymer construction

Product Benefits

• Larger 80×40mm cavity accommodates more cable connections than the compact 65×35mm model
• Flame-retardant, self-extinguishing material limits fire propagation in wall cavities and surface runs
• IP 54 rating allows use in damp locations such as terraces, industrial facilities, and utility areas
• Impact- and pressure-resistant housing withstands knocks during and after installation
• Wide system compatibility with Courbi accessories reduces the need for adapters

Technical Specifications

• Shape: Round
• Dimensions: 80×40mm
• Protection Rating: IP 54
• Glow Wire Test: 650°C
• Minimum Operating Temperature: -15°C
• Maximum Operating Temperature: +60°C
• Material: Durable polymer (UV-resistant, non-corrosive)
• Application Standard: IEC 60670–1/2002

Why You'll Love It

• 80×40mm round profile provides more working room for cable terminations without moving to a rectangular box
• System compatibility with the full Courbi range means a single cable-routing ecosystem
• Side-cap entry simplifies connections to conduit runs without removing the entire box
• Package includes 1× Courbi Round Watertight Box 80×40mm With Cable Glands IP54
