Hensel DK5000G IP66 Polycarbonate Junction Box 355×255×122 – Twin M32 & 1000 V
Hensel DK5000G IP66 Polycarbonate Junction Box 355×255×122 – Twin M32 & 1000 V
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description

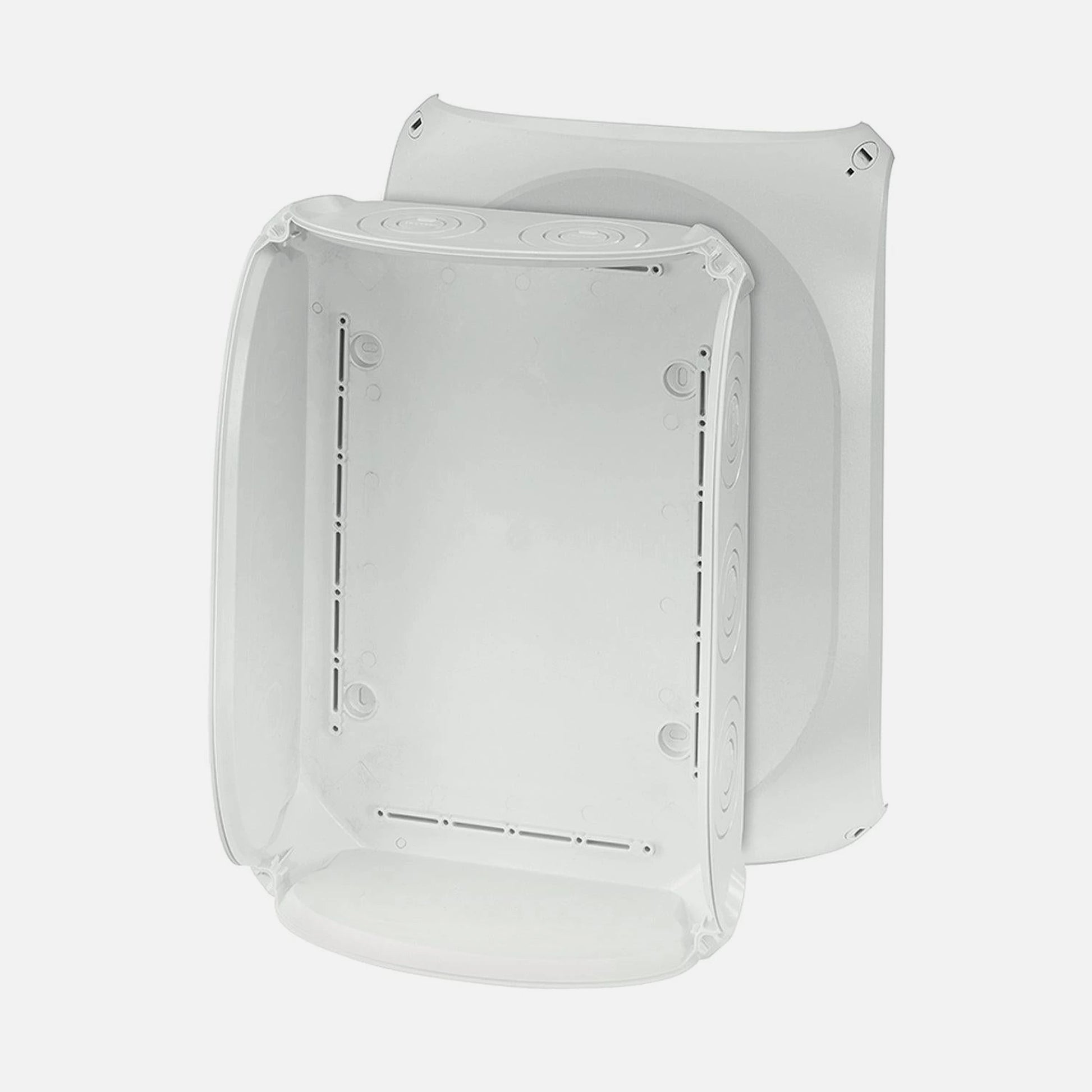

The Hensel DK5000G-IP66 is a heavy-duty cable junction box made from polycarbonate (PC) and finished in grey (RAL 7035). It is suitable for professional installers and DIY users who need a secure, weatherproof enclosure for electrical and non-electrical connections.
The box features integrated rubber membranes that can be removed to allow spiral cable entry, plus twin M32 cable inlets at the rear. A cover retaining strap and external wall-mounting brackets are included. It conforms to IEC 60670-22 and carries RoHS, REACH, and VDE certifications.
Key Features
- IP66 degree of protection — fully dust-tight and protected against powerful water jets

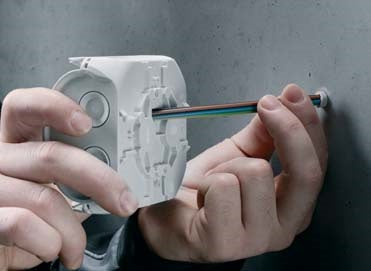

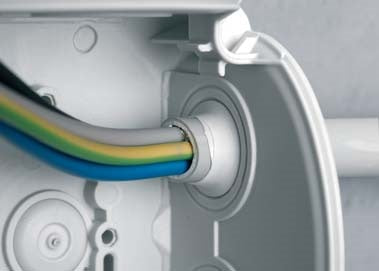

- Integrated rubber membranes removable for spiral cable entry
- Twin M32 cable inlets at the rear panel
- Includes cover retaining strap for secure lid closure
- Includes external brackets for direct wall mounting
- Certified to IEC 60670-22, RoHS 2015/863/EU, REACH 1907/2008/EG, and VDE
Product Benefits
- IP66 rating keeps connections safe from dust ingress and water jets in exposed locations
- Removable rubber membranes offer flexible cable routing without additional glands
- Twin M32 rear inlets accommodate multiple cable runs in a single enclosure
- Polycarbonate construction provides high impact resistance and electrical isolation up to 1000 V
- Wall-mounting brackets allow quick, tool-free positioning on any flat surface
Technical Specifications
- Model: Hensel DK5000G-IP66
- Colour: Grey, RAL 7035
- Material: PC (polycarbonate)
- Rated Insulation Voltage (Ui): 1000 V a.c./d.c.
- Degree of Protection: IP66
- Outer Width: 355 mm
- Outer Height: 255 mm
- Outer Depth: 122 mm
- Support Width: 320 mm
- Support Height: 215 mm
- Maximum Installation Depth: 106 mm
- Weight: 1.365 kg
- Standard: IEC 60670-22
- Certifications: RoHS 2015/863/EU, REACH 1907/2008/EG, VDE
Why You'll Love It
- All mounting hardware included — no separate bracket or strap purchase needed
- Flexible rubber membrane system adapts to different cable types and diameters
- RAL 7035 grey finish blends with standard industrial and residential installation aesthetics
- Package includes 1× Hensel DK5000G-IP66 cable junction box
