RS1P08G1 Relay Socket 8-Pin Octal – 10 A 250 V AC, IP40 & 1–2.5 mm² Screw Terminals
RS1P08G1 Relay Socket 8-Pin Octal – 10 A 250 V AC, IP40 & 1–2.5 mm² Screw Terminals
Out of stock
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description

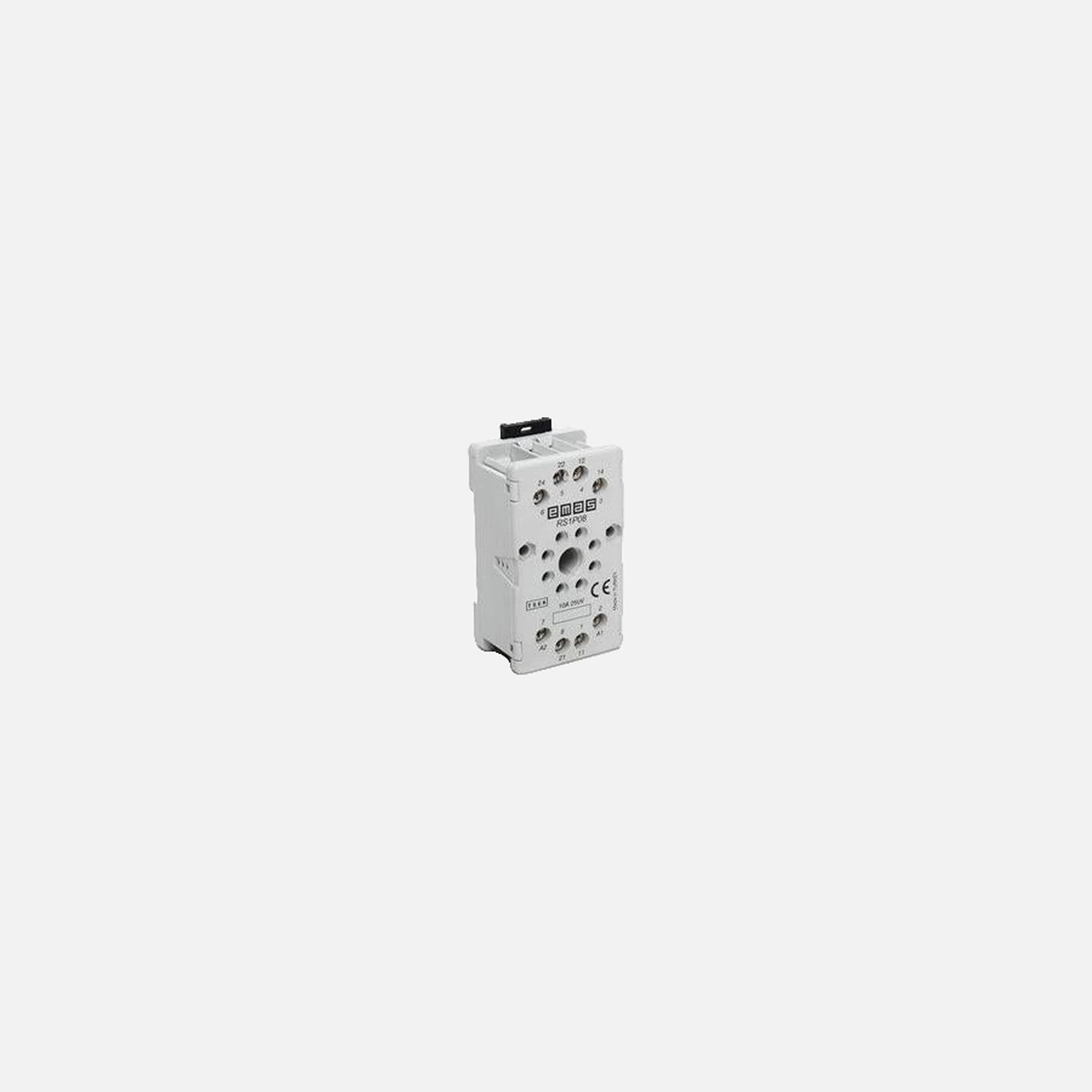

The RS1P08G1 relay socket provides a DIN-rail or panel-mount base for 8-pin lamp-type (octal) relays. It is rated at 10A / 250V AC (usage category AC15) and offers a 300V insulation voltage. Built in grey, it features contact material MS70 and screw terminals torqued to 1.5Nm.
With an operating temperature range of −15°C to +80°C and a pollution degree of 3, the socket suits demanding industrial environments. Dielectric strength is 2,500V AC (body-to-contact) and 1,500V AC (contact-to-contact), with isolation resistance of minimum 10MΩ at 500V DC.
Key Features
- 8-pin lamp-type (octal) socket — RS1 Series
- Rated current: 10A at 250V AC
- Insulation voltage: 300V
- Cable section: 1–2.5mm²
- Contact material: MS70
- Protection degree: IP40
- Colour: Grey
Product Benefits
- Octal 8-pin format allows relay plug-in and pull-out without disturbing the wiring
- IP40 protection prevents solid object ingress in panel and cabinet installations
- Operating temperature −15°C to +80°C covers cold stores and heated equipment enclosures
- 1.5Nm screw torque specification ensures consistent, vibration-resistant terminations
- Isolation resistance min. 10MΩ at 500V DC confirms safe separation of control and power circuits
Technical Specifications
- Product Type: Relay Socket (Lamp Type)
- Series: RS1
- Pin Count: 8 Pin
- Current: 10A (250V AC)
- Usage Category: AC15
- Insulation Voltage: 300V
- Impulse Withstand Voltage: 1.5kV
- Dielectric Strength (Body–Contact): 2,500V AC
- Dielectric Strength (Contact–Contact): 1,500V AC
- Isolation Resistance: Min. 10MΩ (500V DC)
- Operating Temperature: −15°C to +80°C
- Pollution Degree: 3
- Protection Degree: IP40
- Contact Material: MS70
- Cable Section: 1–2.5mm²
- Screw Torque: 1.5Nm
- Colour: Grey
- MPN / EAN: 005.200.A01
Why You'll Love It
- Plug-in octal format lets you replace a faulty relay in seconds without rewiring
- Full electrical specification (dielectric strength, isolation resistance, torque) supports panel design documentation
- Grey colour matches standard DIN-rail accessories for a uniform panel appearance
- Package includes 1× RS1P08G1 Lamp Type Relay Base 8 Pin
