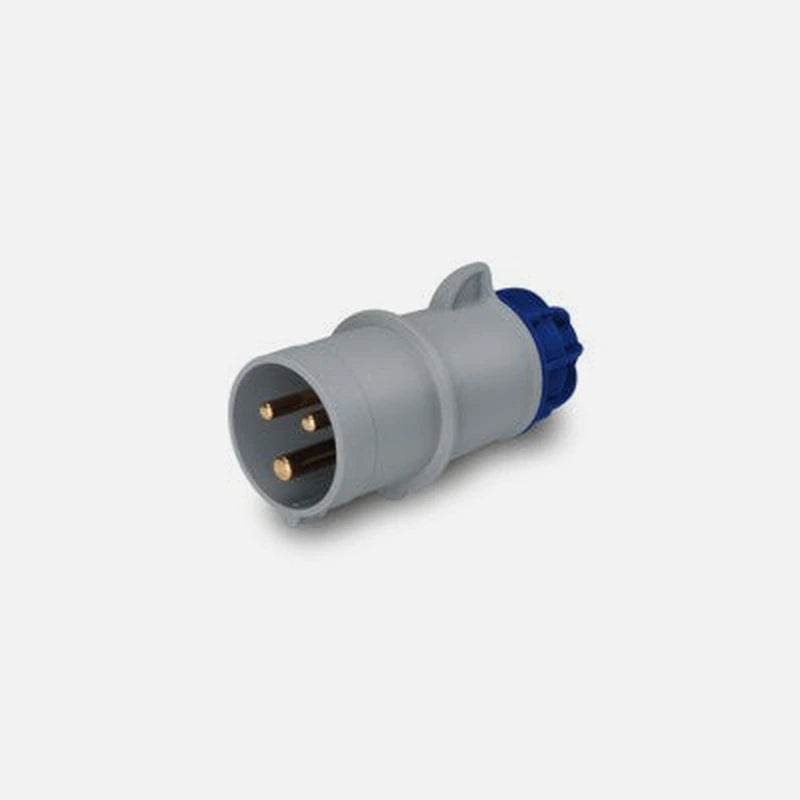

The RP Industrial Male Plug belongs to the XENIA range of mobile industrial plugs. Its technopolymer monobloc body integrates screw terminals and an external cable clamp for secure, field-installable connections. Rated for 32A at 200–250V, it suits single-phase industrial and site installations.

The plug carries an IP44 splash-proof rating and an IK impact rating, making it suitable for demanding workshop and construction environments. The CuZn (brass) contacts and straight outlet type ensure reliable mating with matching industrial receptacles.

Key Features

• XENIA series thermoplastic monobloc body with integrated cable clamp
• Screw terminals for secure, tool-assisted conductor connection
• 2P+E configuration at 6h clock position — standard industrial keying
• IP44 splash-proof protection and IK08 impact resistance
• CuZn (brass) contacts for durable electrical connection

Product Benefits

• Portable mounting version allows use as a mobile connector on tools and equipment
• 32A rated current handles heavy-duty single-phase loads on construction and industrial sites
• 200–250V operating range covers standard European supply voltages
• Straight outlet type provides direct, low-profile mating with panel-mount sockets
• Dual-frequency rated at 50Hz/60Hz for use in domestic and export equipment

Technical Specifications

• Product Series: Xenia
• Product Type: Industrial Male Plug
• Mounting: Portable
• Rated Current: 32A
• Poles: 2P+E
• Hour Position: 6h
• Rated Voltage: 200–250V
• Frequency: 50Hz/60Hz
• Outlet Type: Straight
• Terminals: Screw terminals
• Contact Material: CuZn (brass)
• Body Material: Thermoplastic
• Colour: Grey/Blue
• Protection: IP44/IP54, IK08

Why You'll Love It

• Monobloc thermoplastic body keeps the assembly compact and robust on site
• Screw terminals accept a range of conductor sizes without special tooling
• IP44 rating means the plug can be used outdoors or in wet workshop areas
• Package includes 1× RP Industrial Male Plug 3x32A IP44
