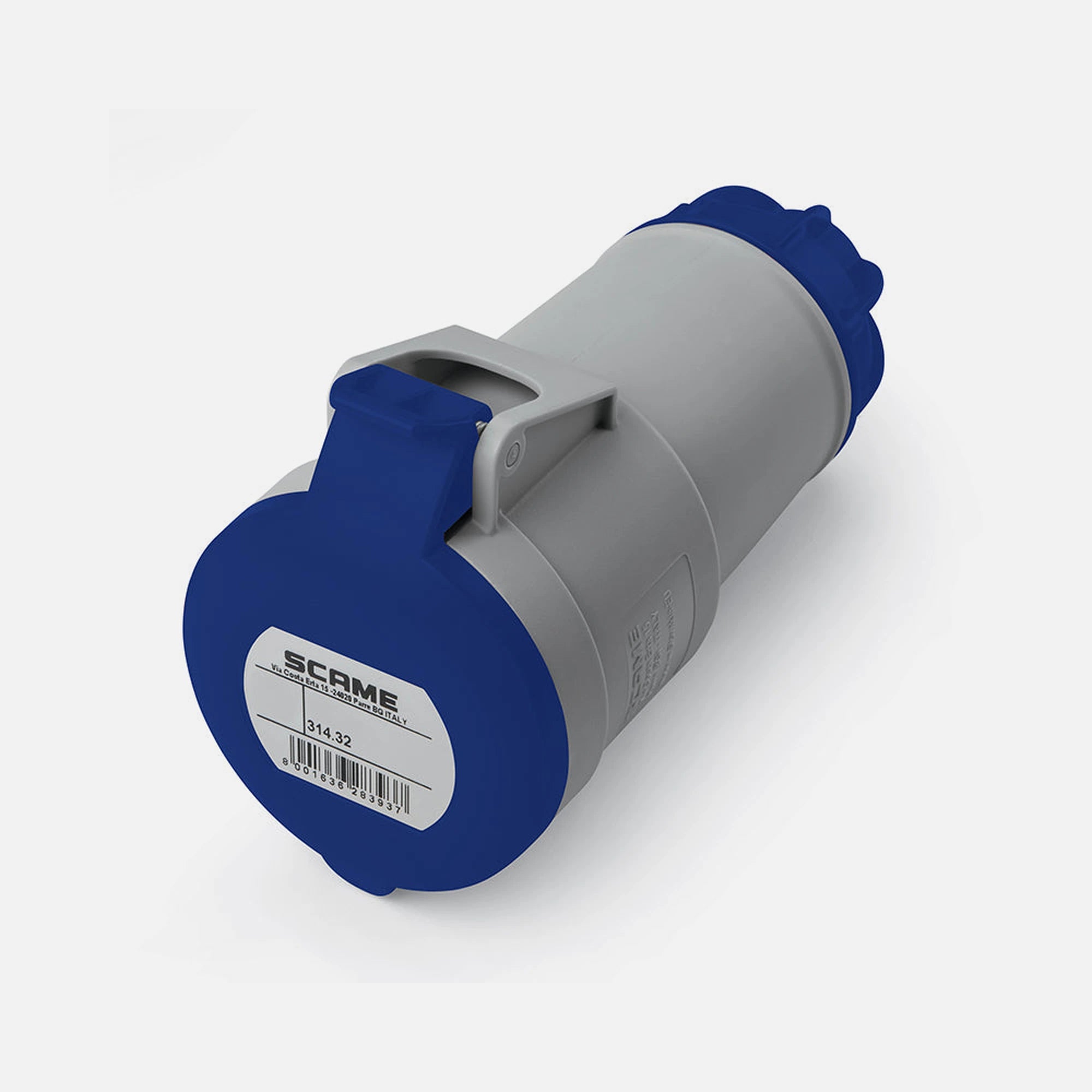

The RP Industrial Female Plug is part of the XENIA range of mobile industrial connectors. Its technopolymer monobloc body houses screw terminals and an external cable clamp, supporting robust field installation at up to 32A and 200–250V. The female socket type accepts the matching XENIA male plug for a secure, keyed industrial connection.

With IP44 splash-proof and IK impact protection, the plug withstands demanding workshop and construction environments. CuZn (brass) contacts and a straight outlet configuration ensure reliable, low-resistance mating across many cycles of use.

Key Features

• XENIA series thermoplastic monobloc body with integrated external cable clamp
• Female socket — mates with the corresponding XENIA industrial male plug
• 2P+E configuration at 6h clock position — standard industrial keying
• IP44 splash-proof protection and IK08 impact resistance
• CuZn (brass) contacts for durable electrical performance

Product Benefits

• Portable mounting version supports flexible deployment on tools and machinery
• 32A rated current meets the demands of heavy-duty single-phase equipment
• 200–250V voltage range accommodates standard European supply networks
• Straight outlet type allows compact, direct mating with panel-mount male plugs
• 50Hz/60Hz dual-frequency rating covers both European and export applications

Technical Specifications

• Product Series: Xenia
• Product Type: Industrial Female Plug
• Mounting: Portable
• Rated Current: 32A
• Poles: 2P+E
• Hour Position: 6h
• Rated Voltage: 200–250V
• Frequency: 50Hz/60Hz
• Outlet Type: Straight
• Terminals: Screw terminals
• Contact Material: CuZn (brass)
• Body Material: Thermoplastic
• Colour: Grey/Blue
• Protection: IP44/IP54, IK08

Why You'll Love It

• Monobloc thermoplastic construction keeps the connector compact and site-ready
• Screw terminals accept a variety of conductor sizes without specialist tools
• IP44 rating permits outdoor and wet-area use without a separate enclosure
• Package includes 1× RP Industrial Female Plug 3x32A IP44
