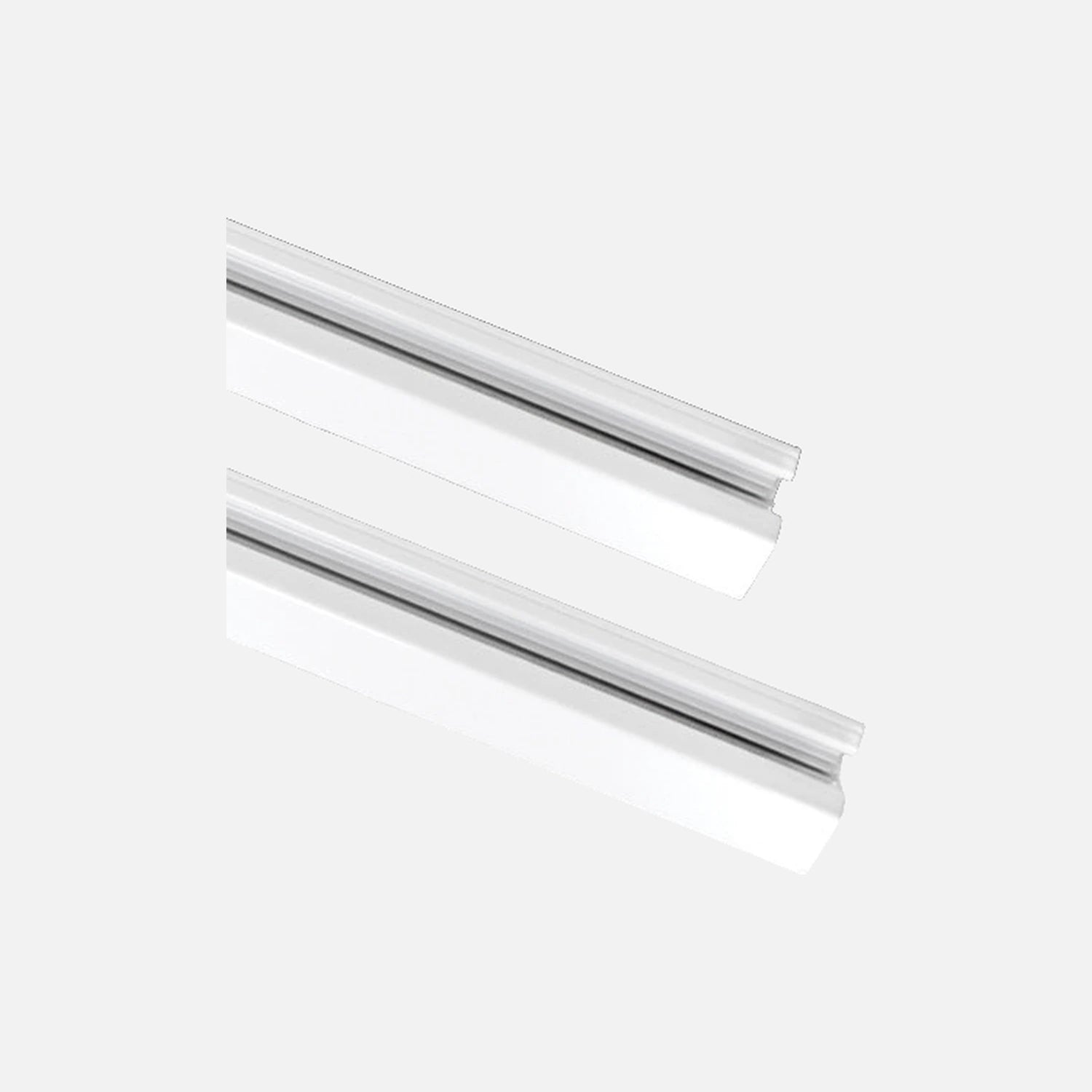

The Lighting Rail 1C/16A/230V 2m White is a single-phase, 3-conductor current track for one circuit. Constructed from aluminium with 2 built-in copper conductors, it connects to a power supply socket on a single-phase 220–240V network. It can be suspended by cable or mounted directly to the ceiling.

The rail supports dimming via 1–10V or TRIAC control and is intended primarily for commercial spaces, with equal suitability for residential applications. The 2-metre section weighs 1.08 kg and is supplied in white.

Key Features

• Single-phase, 3-conductor track for one circuit
• Aluminium body with 2 built-in copper conductors
• Mounting options: cable suspension or direct ceiling mount
• Dimming support: 1–10V or TRIAC control
• White body colour

Product Benefits

• Single-phase design allows integration into a standard 220–240V domestic or commercial circuit without additional wiring
• Cable suspension or direct-mount options give flexibility for different ceiling types and installation heights
• 1–10V or TRIAC dimming compatibility means the same track works with a wide range of compatible dimmable track heads
• 16A rating handles multiple track fixtures simultaneously on a single circuit
• Aluminium and copper construction provides durable conductivity and mechanical strength over the 2m length

Technical Specifications

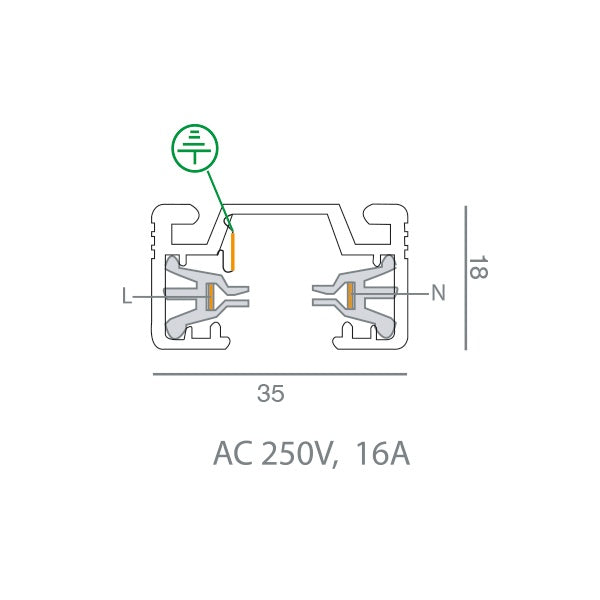

• Type: Single-phase, 3-conductor, 1-circuit track
• Construction Material: Aluminium, copper, plastic
• Voltage: 220–240V / 16A
• Electrical Protection: CLASS I
• Degree of Protection: IP20
• Dimming: YES — 1–10V or TRIAC
• Installation Environment: Indoor
• Body Colour: White
• Length: 2m
• Weight (2m): 1.08 kg

Why You'll Love It

• Two metres of track covers most standard room widths and allows positioning of multiple spotlights from a single rail
• Dual mounting method (suspension or direct ceiling) adapts to different room heights and ceiling finishes
• CLASS I electrical protection and IP20 rating confirm the rail meets standard indoor safety requirements
• Package includes 1× Lighting Rail 1C/16A/230V 2m White
