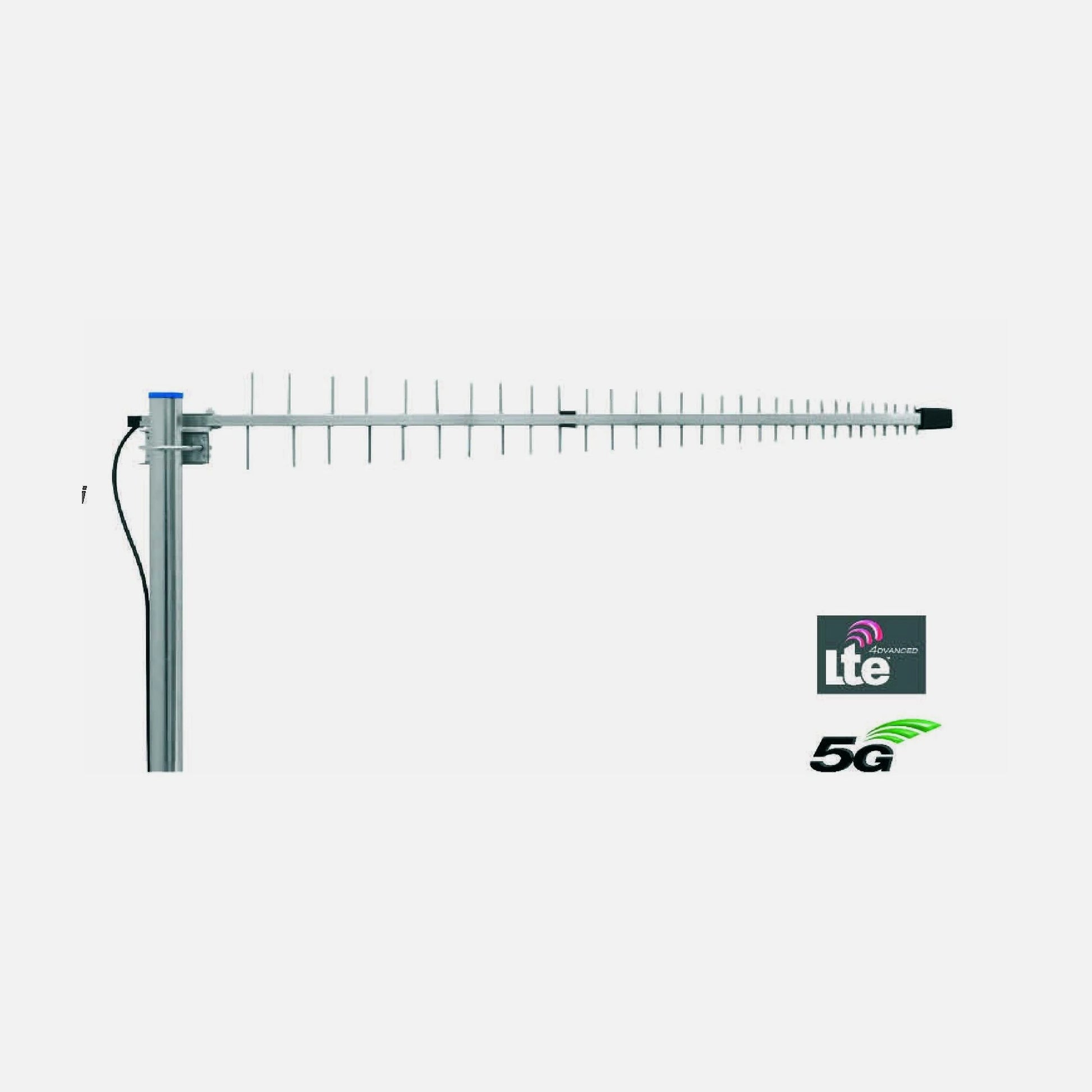

Iskra P-62 5G H/V UNICOM Antenna – 62-Element, LTE/5G 1427-3800 MHz & SMA Connector
Iskra P-62 5G H/V UNICOM Antenna – 62-Element, LTE/5G 1427-3800 MHz & SMA Connector
Out of stock
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description
The Iskra P-62 5G H/V UNICOM is a high-gain wideband directional antenna designed for receiving signals from mobile operators. It covers LTE 5G 1500, GSM/LTE 1800, GSM/LTE 2100, Wi-Fi 2.4 GHz, LTE 2.6 GHz, and LTE 5G 3.5 GHz in a single unit, focusing on the mid- and upper-band frequencies used by modern 5G networks.
With 62 elements, built-in SMA male connector, and tighter beam widths than its counterpart, the P-62 is suited for installations where a more focused directional beam is needed to pick up distant or congested base stations.
Key Features
- 62-element UNICOM directional antenna
- Covers LTE 5G 1500 (1427–1518 MHz), GSM/LTE 1800 (1710–1880 MHz), GSM/LTE 2100 (1920–2170 MHz), Wi-Fi 2.4 GHz (2401–2495 MHz), LTE 2.6 GHz (2500–2690 MHz), LTE 5G 3.5 GHz (3200–3800 MHz)
- Gain: 10–12 dBi
- Front-to-back ratio: 24 dB
- Narrow beam: Horizontal 48°, Vertical 42°
- Built-in SMA male connector for direct device connection
- 50 Ohm impedance throughout
Product Benefits
- Higher gain of 10–12 dBi compared to the P-60 improves reception at greater distances from the base station
- Narrower beam widths (48° H / 42° V) reduce interference from off-axis signal sources
- Higher front-to-back ratio of 24 dB provides better rejection of signals from behind
- Built-in SMA connector enables direct connection without additional adapters or pigtails
- 100 cm length is more compact while maintaining high element count
Technical Specifications
- Frequency Bands: LTE 5G 1500 (1427–1518 MHz), GSM/LTE 1800 (1710–1880 MHz), GSM/LTE 2100 (1920–2170 MHz), Wi-Fi 2.4 GHz (2401–2495 MHz), LTE 2.6 GHz (2500–2690 MHz), LTE 5G 3.5 GHz (3200–3800 MHz)
- Number of Elements: 62
- Gain: 10–12 dBi
- Maximum VSWR: <1.5:1
- Front-to-Back Ratio: 24 dB
- Beam Width: Horizontal 48°; Vertical 42°
- Impedance: 50 Ohm
- Maximum Input Power: 50 W
- Antenna Length: 100 cm
- Connector: Built-in SMA male
- Coaxial Cable Impedance: 50 Ohm
Why You'll Love It
- Higher gain and tighter beam make the P-62 the right choice for long-range or high-interference environments
- Covers all mid-band and upper-band 5G frequencies in one antenna
- Built-in SMA connector means no additional hardware at the antenna connection point
- Robust design engineered for long outdoor service life
