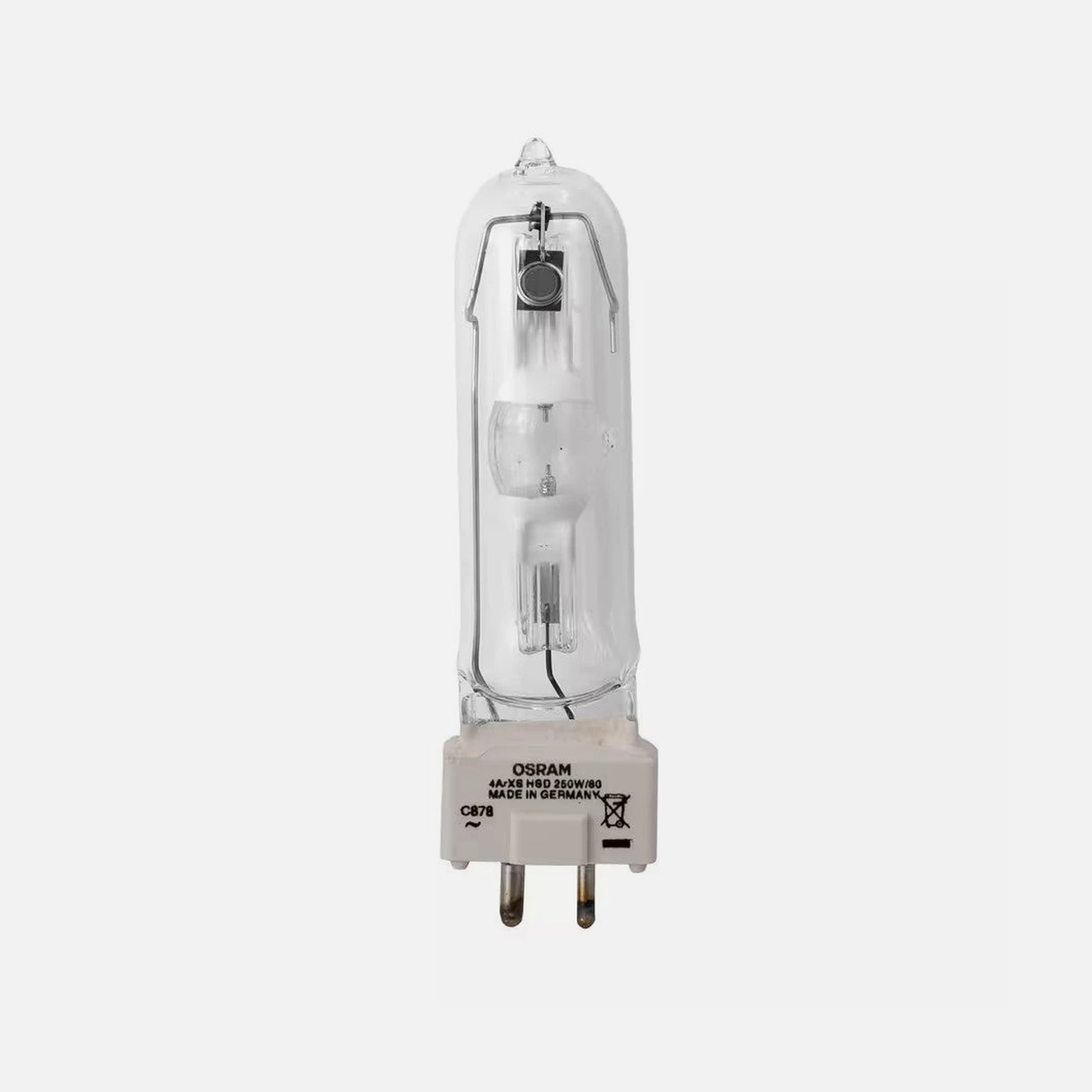

The LEDVANCE OSRAM 4ArXS HSD 250W/80 is a high-efficiency metal halide lamp engineered for entertainment and architectural fixtures. Its outer quartz jacket creates a compact, rugged construction, and the lamp delivers up to 90 lumens per watt with excellent colour rendering.

4ArXS stands for "For Architainment eXtreme Seal": the pinch seal withstands up to 500°C, and operating life reaches up to 3,000 hours when powered by an electronic control gear (ECG). It uses a GY9.5 base and an AC supply at 92V / 2.8A.

Key Features

• Proven 4ArXS technology for entertainment and architectural fixtures
• Outer quartz jacket for compact, rugged construction
• Luminous efficacy up to 90 lumens/watt
• Extreme Seal pinch withstands up to 500°C
• Lamp life up to 3,000 hours when operated on an ECG

Product Benefits

• 17000lm output at 8000K suits stage, concert, and architainment fixtures
• Ra 85 colour rendering keeps stage and architectural scenes natural
• GY9.5 base fits a wide range of professional fittings
• AC operation at 92V / 2.8A through standard control gear
• Compact 108mm length and 23.0mm diameter for tight optical assemblies

Technical Specifications

• Nominal Wattage: 250W
• Nominal Voltage: 92V
• Nominal Current: 2.8A
• Current Type: AC
• Luminous Flux: 17000 lm
• Colour Temperature: 8000K
• Colour Rendering: Ra 85
• Light Center Length (LCL): 55.0 mm
• Base: GY9.5
• Diameter: 23.0 mm
• Length: 108.0 mm
• Weight: 31.60 g
• EAN: 4008321625786

Why You'll Love It

• Application areas: Architecture and Architainment, Concert Lighting, Club and Disco
• Safety: due to high luminance, UV radiation, and internal pressure, operate only in enclosed lamp casings with suitable UV filters; broken lamps release mercury and require special handling
• Refer to the included leaflet and technical datasheet (available in Downloads) before installation

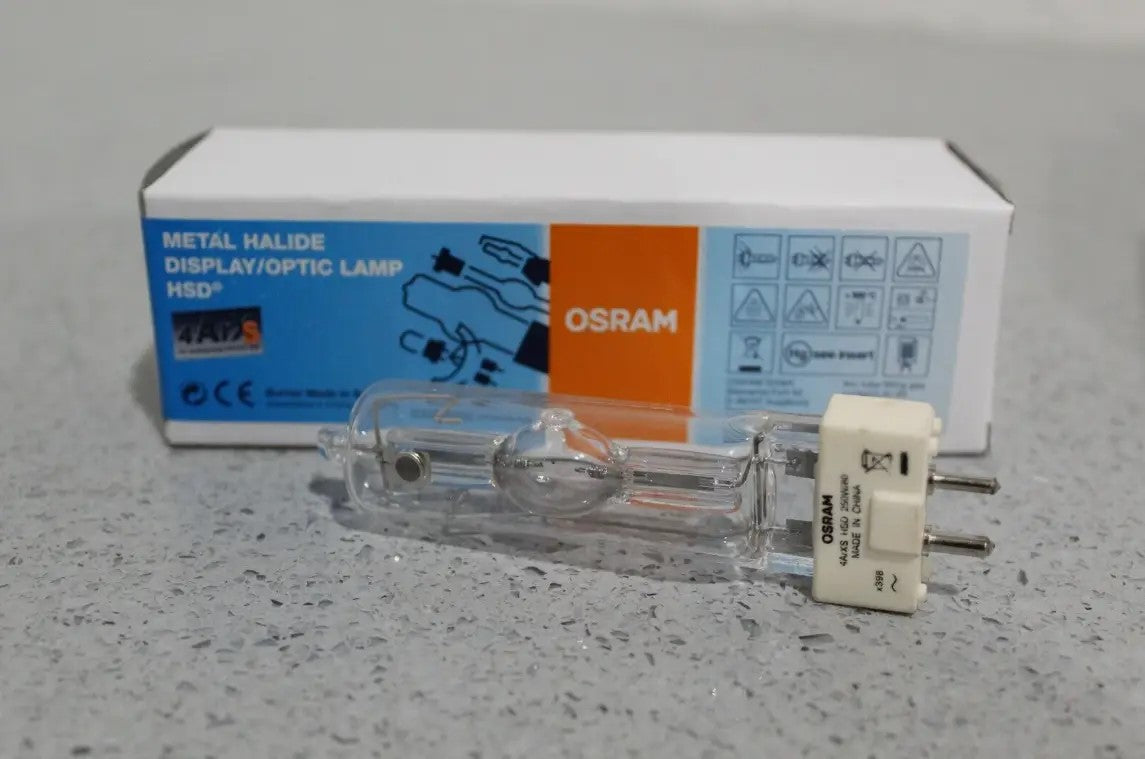

• Package includes 1x LEDVANCE OSRAM 4ArXS HSD 250W/80 lamp
