Opticum ANT0010 Smart HD 750 Active DVB-T2 Antenna 30 dB – Indoor/Outdoor, DAB/FM, Weatherproof
Out of stock
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description
The Opticum ANT0010 Smart HD 750 is an active terrestrial antenna for DVB-T2, DAB/DAB+ and FM, built for both indoor and outdoor use. Its UV-resistant, water-repellent housing means it works on a shelf behind the TV, on a caravan, boat or allotment, or bolted to a mast outside — one antenna for home and travel.
A built-in low-noise amplifier delivers 30 dB of gain (VHF +15 dB / UHF +15 dB) powered by the 5 V supply that DVB-T2 receivers feed up the coax, so there's no separate power brick. It covers the FM, VHF and UHF broadcast bands at a 75 Ω impedance with a low 3 dB noise figure, connects via an IEC female plug, and ships with a mast mount and antenna cable in the box.
Key Features
- Active antenna for DVB-T, DVB-T2, DAB/DAB+ and FM radio
- 30 dB gain (VHF +15 dB / UHF +15 dB) via built-in low-noise amplifier
- Powered by 5 V from the DVB-T2 receiver — no separate power supply
- Indoor and outdoor use — UV-resistant, water-repellent housing
- Ideal for home, caravans, motorhomes and boats

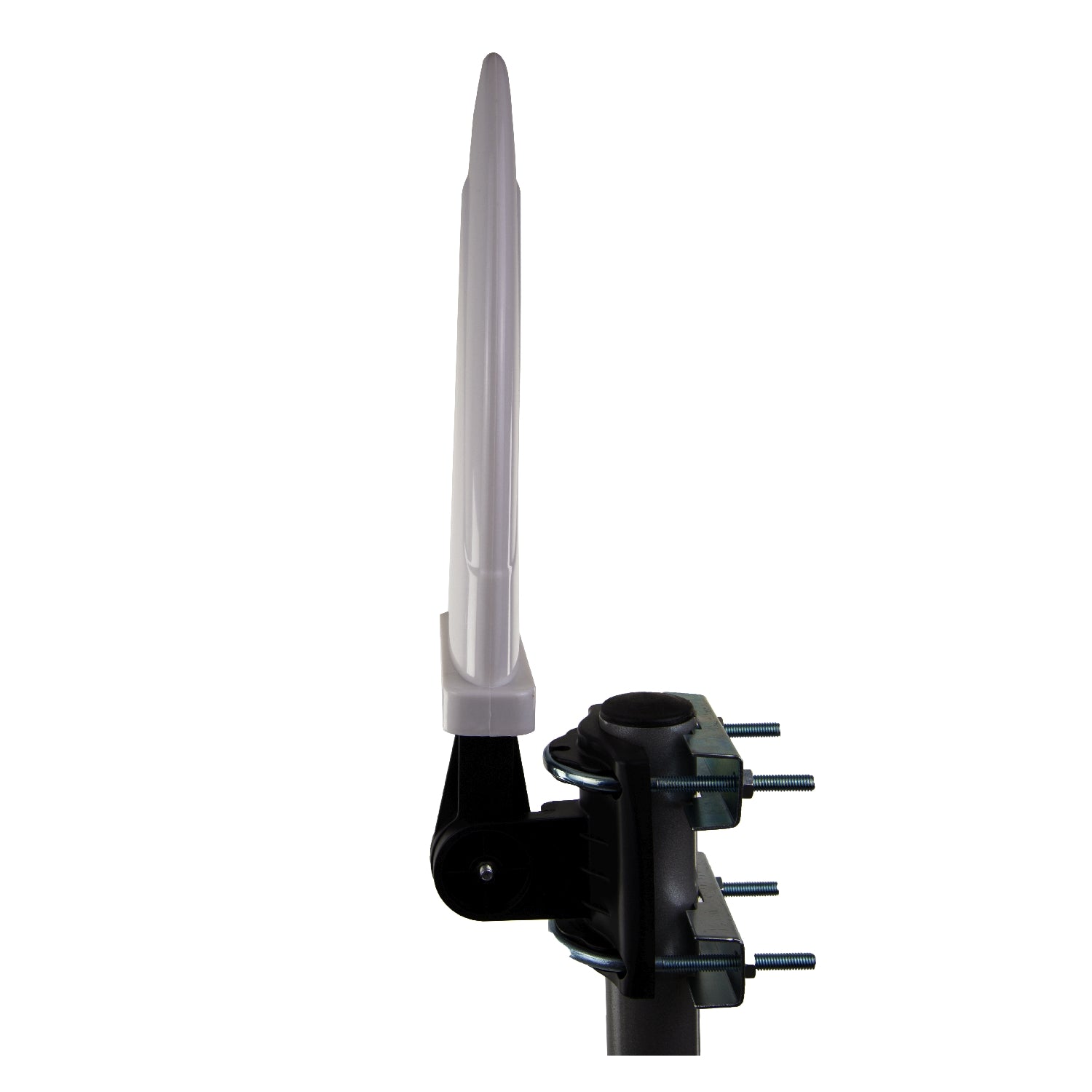

- Mounts horizontally or vertically
- Includes mast mount and antenna cable
Technical Specifications
- Type: Active terrestrial antenna (DVB-T2 / DAB / FM)
- Reception: DVB-T, DVB-T2, FM, DAB, VHF, UHF, DMB-T/H, ATSC, ISDB-T
- Gain: 30 dB (VHF +15 dB / UHF +15 dB)
- Frequency range: 87-108 MHz, 174-230 MHz, 470-862 MHz
- Power supply: 5 V from DVB-T/T2 receiver
- Impedance: 75 Ω
- Noise figure: 3 dB
- Max output level: 100 dBμV

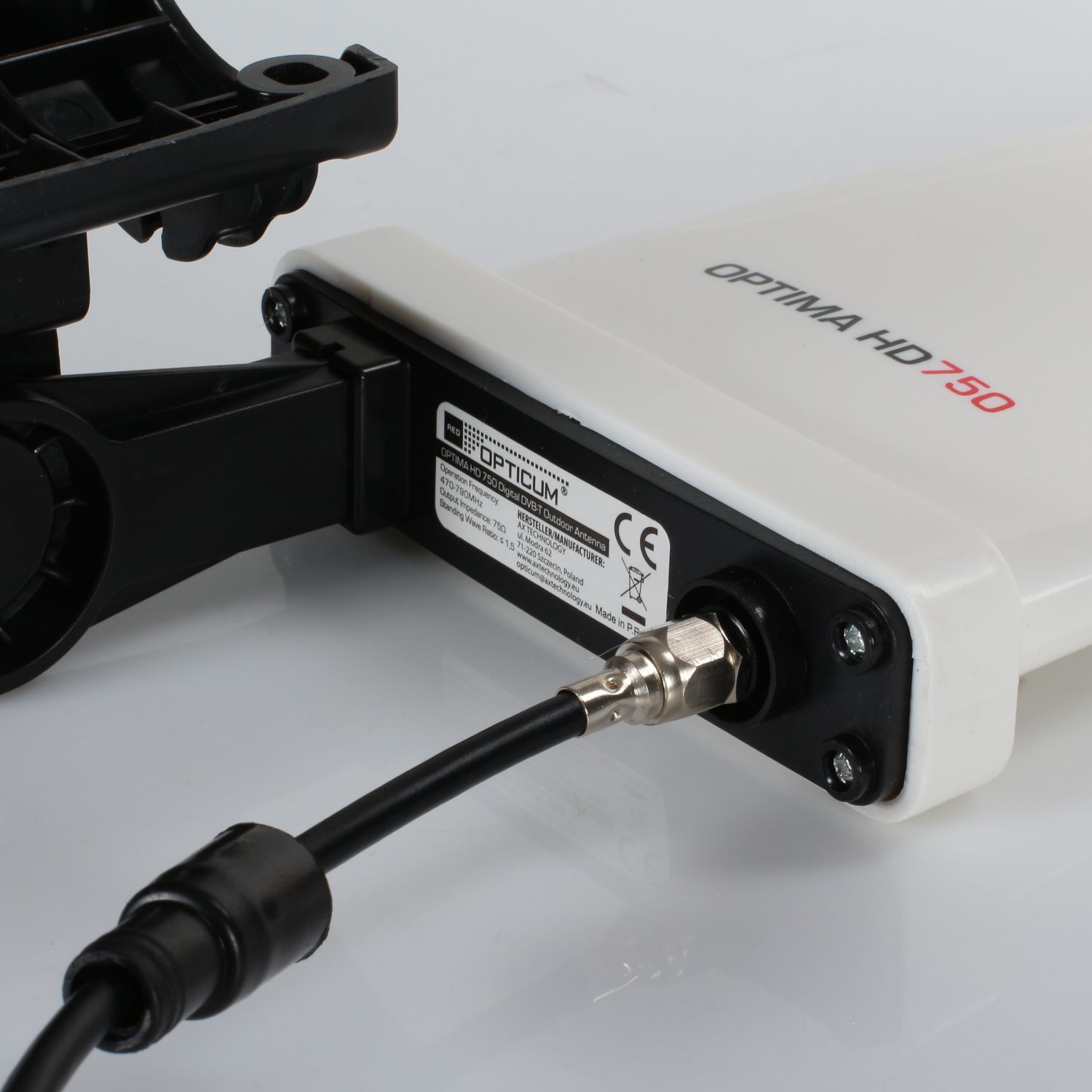

- Connector: IEC female
- Dimensions (with mount): 340 × 150 × 100 mm
- Dimensions (antenna only): 230 × 130 × 40 mm
- Housing: UV-resistant, water-repellent

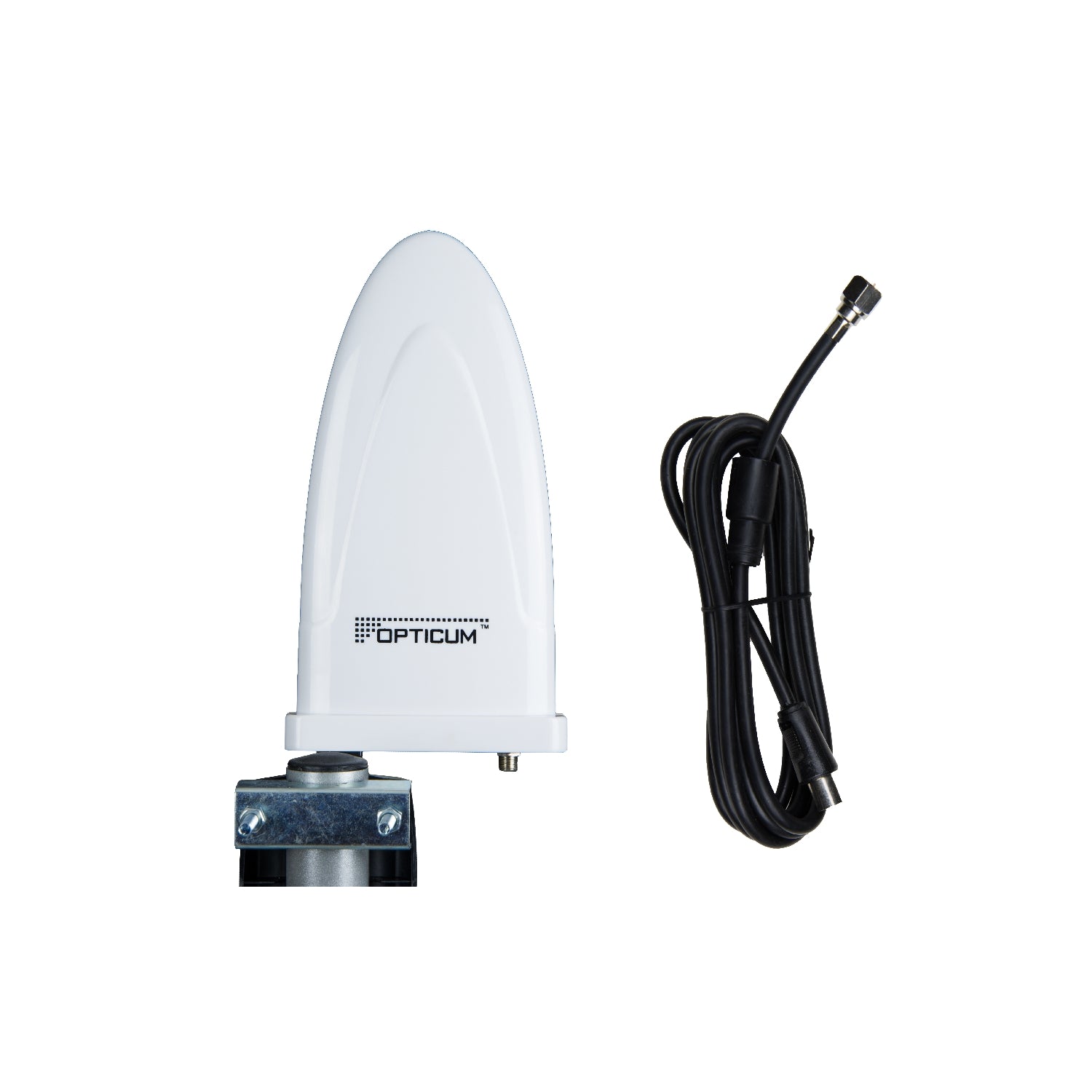

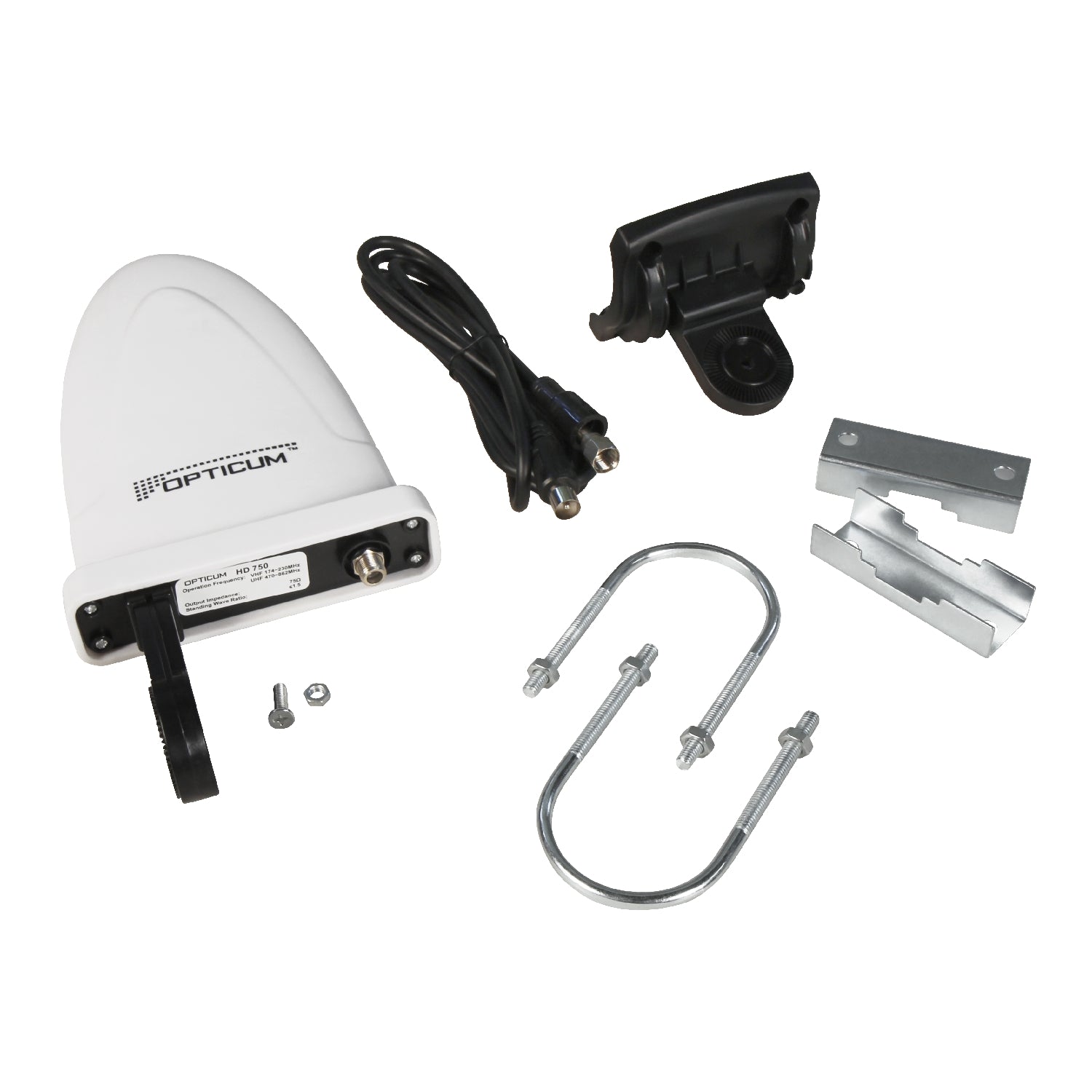

- Included: Mast mount + antenna cable
- Manufacturer part number: ANT0010
Product Benefits
- One antenna covers the TV at home and the aerial on the caravan or boat
- The 5 V receiver feed means no wall wart and no extra cable to run
- Weatherproof housing survives a permanent outdoor mounting
- 30 dB active gain pulls in weak fringe-area DVB-T2 muxes
Why You'll Love It
- Genuinely dual indoor/outdoor — most 'indoor/outdoor' antennas aren't really weatherproof, this is
- Powered off the receiver keeps the install clean with a single coax run
- Wide band coverage picks up DVB-T2 plus DAB radio on the same aerial
