The GBC 24.5225.00 is a unipolar lever switch with stable ON-OFF action, designed for direct panel mounting through a 12mm hole. It is the Faston-terminal variant of the 24.5220 series: rather than screw connections, it uses Faston 6.3mm push-on terminals that accept standard spade connectors, enabling tool-free cable attachment and quick disconnect during servicing.
The silver body measures 29x15.9mm across the panel face with 19mm behind the panel. Rated at 10A/250Vac, it suits mains-voltage ON-OFF control in machinery, appliances, and equipment panels.
Key Features
- Lever mode with stable (latching) ON-OFF switching
- Unipolar switch: 2-pin circuit with Faston 6.3mm push-on terminals
- Panel mount through a 12mm mounting hole
- Rated: 10A – 250Vac
- IP20 protection degree; silver colour

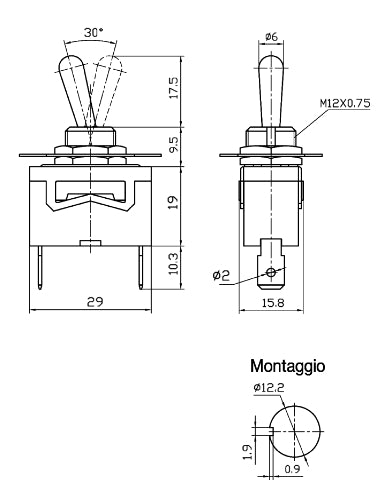

- Body dimensions: 29x15.9mm panel face, 19mm depth
Product Benefits
- Faston 6.3mm terminals accept standard spade connectors — no soldering or screwdriver required for wiring
- Push-on terminals enable fast disconnection during maintenance or panel replacement
- Stable lever action holds ON or OFF position reliably without operator intervention
- 10A/250Vac mains rating covers motors, heating elements, and lighting control circuits
- 12mm mounting hole fits pre-drilled panel cutouts without modification
Technical Specifications
- Model: GBC 24.5225.00
- Mode: Lever
- Type: Switch
- Switching: Stable (latching)
- Contacts: ON-OFF
- Number of Positions: 2
- Number of Pins: 2
- Operating Range: 10A – 250Vac
- Protection Degree: IP20
- Colour: Silver
- Mounting: On panel
- Mounting Hole: 12mm
- Terminals: Faston 6.3mm
- Dimensions: 29x15.9mm (panel face), 19mm depth
Why You'll Love It
- Faston 6.3mm terminals make wiring and service disconnection faster than screw alternatives
- Shares the same 29x15.9mm panel footprint as the screw-terminal 24.5220.00 — interchangeable in the same enclosure cutout
- Stable lever gives clear tactile and visual feedback of the current ON-OFF state
- Package includes 1× GBC 24.5225.00 unipolar lever switch
