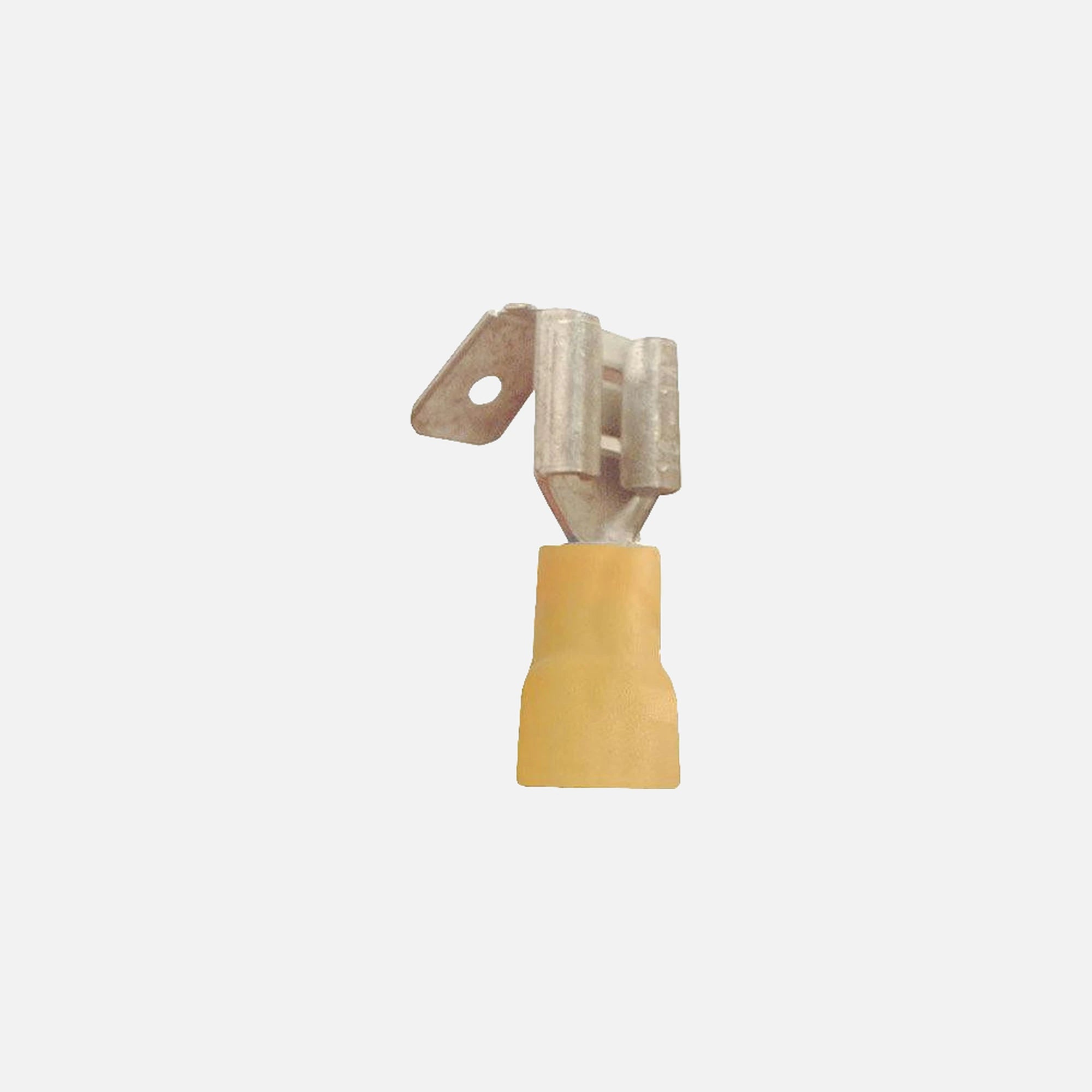

The AD PBDD5-250 is a corner-drawer (piggyback) Faston terminal that integrates a female socket and a male blade in a single insulated body. It enables a second conductor to be tapped onto an existing Faston tab without breaking the circuit, a key requirement in high-current panel wiring, industrial controls, and heavy-duty automotive applications.

The terminal is fabricated from tinned copper and fitted with a yellow PVC insulation sleeve that identifies the 6 mm² conductor cross-section category at a glance. Each pack contains 10 pieces.

Key Features

• Piggyback design: female socket and male blade combined in one body
• Corner-drawer (angled) configuration for tight-space installations
• Yellow insulation sleeve colour-coded for 6 mm² conductor cross-section
• Tinned copper construction for corrosion resistance
• Faston-compatible tab width: 6.35 mm
• Pack contents: 10 terminals

Product Benefits

• The piggyback design allows a branch connection on an occupied Faston tab without cutting or re-terminating the original wire
• Rated for 6 mm² conductors, this terminal handles higher current loads than red- or blue-coded equivalents
• Tinned copper contact surfaces resist oxidation and maintain low contact resistance over time
• Yellow colour-coding enables instant cross-section identification during panel assembly and subsequent maintenance

Technical Specifications

• Model: PBDD5-250
• Type: Insulated piggyback (female + male) Faston terminal
• Configuration: Corner drawer (angled)
• Conductor Cross-Section: 6 mm²
• Tab Width: 6.35 mm
• Material: Tinned copper
• Insulation Colour: Yellow
• Pack Quantity: 10 pcs

Why You'll Love It

• The 10-piece pack is practical for panel work where multiple branch taps are required at the same voltage rail
• Standard 6.35 mm tab width is universally compatible with receptacles in this connector family
• Insulation sleeving prevents accidental shorts in densely wired enclosures
• The tinned finish is ready to use without any additional preparation or treatment
