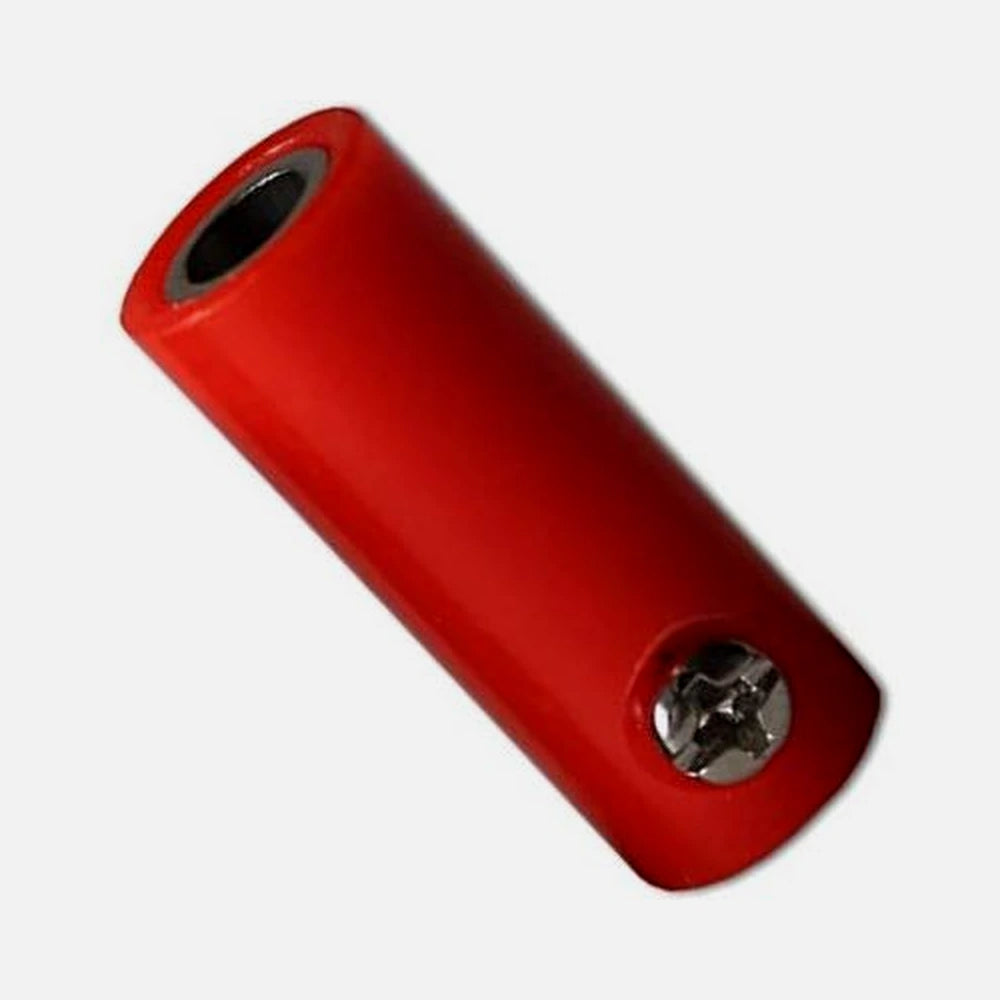

The GBC 18.5055.00 is a 4mm banana-shaped female socket in red, designed for laboratory benches, test instruments and audio panels where a standard 4mm plug needs a clean, polarised mating point. The red colour follows the convention used for positive or live connections.

The body is moulded from ABS for impact resistance and electrical isolation, while the nickel-plated brass contact gives a low-resistance, corrosion-resistant joint. A screw-type cable fixing accepts stranded or solid leads without soldering.

Key Features

• 4mm banana female socket for standard test plugs
• Red body for positive or live polarity marking
• ABS housing for impact resistance and insulation
• Nickel-plated brass contact for low contact resistance
• Screw cable fixing — no soldering required

Product Benefits

• Rated up to 30Vac / 60Vdc at 10A maximum for general lab and bench work
• Screw terminal makes field rewiring quick and reversible
• ABS insulation protects against accidental contact during mating
• Nickel-plated contact resists tarnishing for stable test results
• Standard 4mm interface accepts most common banana plugs and test leads

Technical Specifications

• Type: Banana female socket
• Diameter: 4mm
• Colour: Red
• Rated Range: 30Vac-60Vdc / Max. 10A
• Housing Material: ABS
• Contact Material: Nickel-plated brass
• Cable Fixing: Screw
• MPN: 18.5055.02
• EAN: 8023389032532

Why You'll Love It

• Drop-in replacement for any standard 4mm banana socket on test gear
• Red colour-coding keeps polarity clear on benches and panels
• Screw fixing avoids the need for soldering tools during installation
• Package includes 1× GBC 18.5055.00 banana female socket 4mm red
