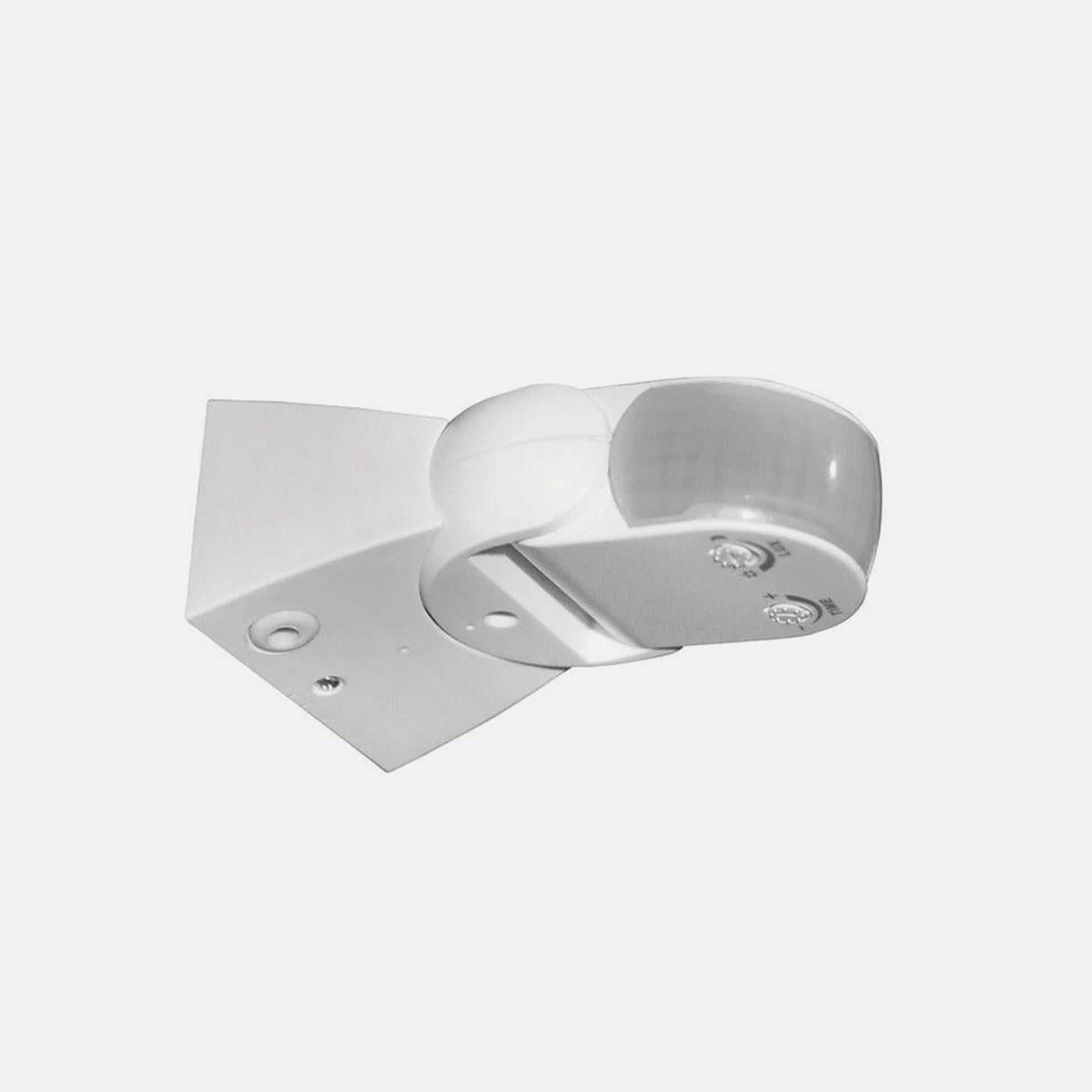

This flat-shaped wall-mounted PIR motion sensor is designed for exterior or interior wall installation where a low-profile detector is needed. Its 220° detection angle covers wide areas such as driveways, entrance facades, and garden paths without requiring a corner or overhead mounting position.

The IP-54 waterproof rating makes it suitable for outdoor use in rain-exposed locations, and the 6 A / 1200 W load capacity supports common outdoor floodlights and garden luminaires. Lux and time-delay settings allow the unit to be tuned to the specific lighting conditions and occupancy patterns of the installation site.

Key Features

• Flat-shaped wall-mounted infrared motion detector
• Detection angle: 220°
• Detection range: up to 12 m
• Installation height: 2.2 m – 4 m
• IP-54 waterproof, 220–240 V AC, 50 Hz
• White plastic body
• Maximum ohmic load: 1200 W (max 6 A)
• Lux setting: 10–2000
• Time setting: 8 sec – 7 min
• Dimensions: L 128 mm × W (max) 80 mm × H (max) 51 mm

Product Benefits

• IP-54 rating protects against dust ingress and water splashes, suitable for outdoor walls and porches
• 220° angle covers a wide frontal zone without needing a 360° sensor that would require ceiling mounting
• High 1200 W load capacity drives powerful floodlights or multiple garden fittings from a single sensor
• Extended time-delay range (up to 7 minutes) accommodates slow-moving activity such as gardening near the property

Technical Specifications

• Mounting type: Wall-mounted
• Shape: Flat profile
• Detection angle: 220°
• Detection range: up to 12 m
• Installation height: 2.2 m – 4 m
• Protection class: IP-54
• Power supply: 220–240 V AC, 50 Hz
• Body material: White plastic
• Maximum ohmic load: 1200 W (max 6 A)
• Lux setting range: 10–2000
• Time setting range: 8 sec – 7 min
• Dimensions: L 128 mm × W (max) 80 mm × H (max) 51 mm

Why You'll Love It

• Flat profile sits close to the wall surface and is less obtrusive than bulky dome sensors
• IP-54 waterproofing means it works through rain without a separate protective housing
• White finish suits modern exterior wall finishes and renders
• Broad 1200 W capacity removes the need to check bulb wattage compatibility in most installations
