INTELLINET I-POE-INJCABLE Passive PoE Injector Splitter Kit – 9-57 V DC, 50 m Cat5e
INTELLINET I-POE-INJCABLE Passive PoE Injector Splitter Kit – 9-57 V DC, 50 m Cat5e
Out of stock
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description
The INTELLINET I-POE-INJCABLE lets you power non-PoE devices such as IP cameras, wireless routers, and embedded network hardware over a standard Ethernet cable, eliminating the need for a separate power outlet at the device end. The kit contains two units — a PoE injector and a PoE splitter — that work together to inject DC power from the device's original power supply at one end and extract it cleanly at the other end.

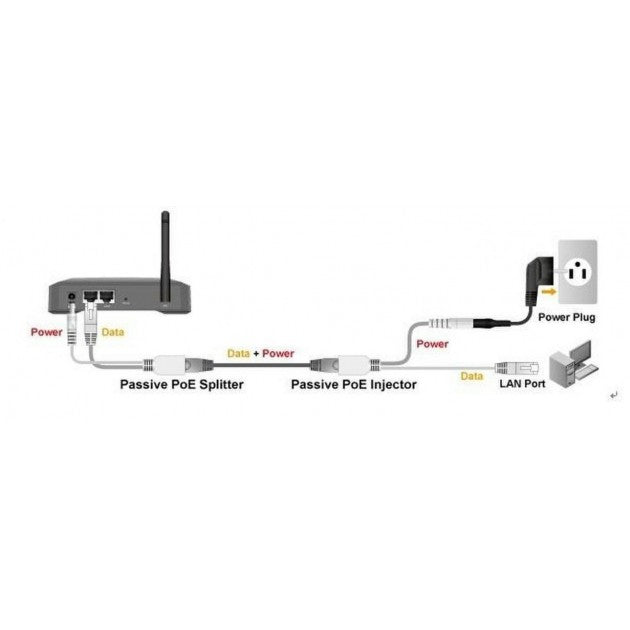

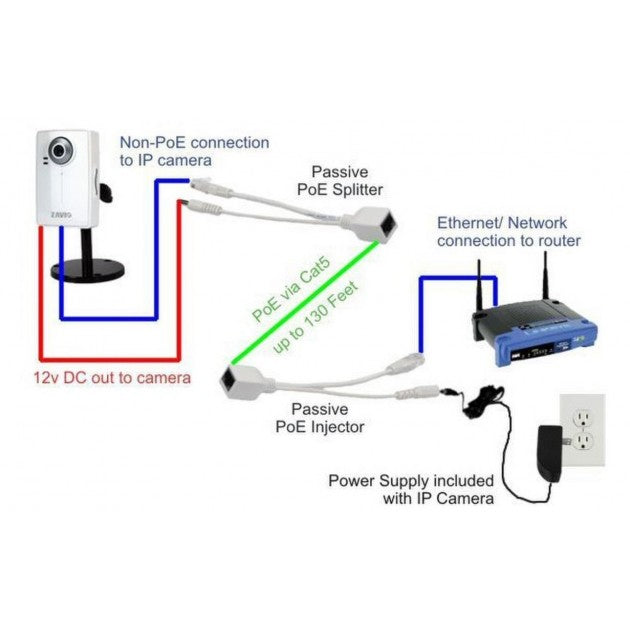

The injector has a male RJ45, a male DC power jack, and a female RJ45: the male RJ45 connects to your router or switch, the DC power jack connects to the non-PoE device's original power supply, and a Cat cable connects the female RJ45 through to the splitter. At the far end, the splitter's male RJ45 connects to the non-PoE device and its female DC power plug connects to the device's power input (typically 12 V or 5 V DC). Maximum cable run is 50 metres.
Key Features
- Passive PoE injector and splitter in one kit — enables PoE on non-PoE devices
- Supported output voltage: 9–57 V DC on RJ45 pins 4/5 (+) and 7/8 (−)
- Output current: 800 mA
- Data standard: Cat5e, EIA/TIA-568 compatible, Ethernet 10/100 Mbps
- Data pins used: 1,2 and 3,6 (LAN, unaffected by power injection)
- Maximum cable run: 50 metres (depends on power supply, cable type, and powered device)
- White PBT hard-plastic housing
- Injector DC socket: 5.5/2.1 mm × 12 mm
Product Benefits
- Removes the need for a separate mains socket at the non-PoE device location, reducing cabling work
- Passive design works with a wide range of voltages (9–57 V DC), covering cameras, routers, and modems that use different supply voltages
- Compatible with most non-PoE network devices available on the market — including IP cameras, modems, switches, and embedded computers
- 10/100 Mbps Cat5e data path means no bandwidth degradation on the LAN side
- Compact PBT housing is durable and suitable for in-ceiling or wall-cavity runs
Technical Specifications
- Model: INTELLINET I-POE-INJCABLE
- Type: Passive PoE injector + splitter kit
- Supported Output Voltage: 9–57 V DC (pins 4/5 (+), pins 7/8 (−))
- Output Current: 800 mA
- Data Standard: Cat5e, EIA/TIA-568, Ethernet 10/100 Mbps
- LAN Data Pins: Input pins 1,2 and 3,6; Output pins 1,2 and 3,6 + power pins 4,5 and 7,8
- Maximum Range: 50 metres
- Cable: 24AWG UTP
- RJ45 Socket Dimensions: 19 × 18.8 × 41.7 mm
- Maximum Length: 210 mm
- DC Socket: 5.5/2.1 × 12 mm
- Housing Material: PBT (hard plastic)
- Colour: White
- Operating Temperature: -20°C to 45°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10%–80% relative humidity
- Storage Humidity: 5%–90% relative humidity

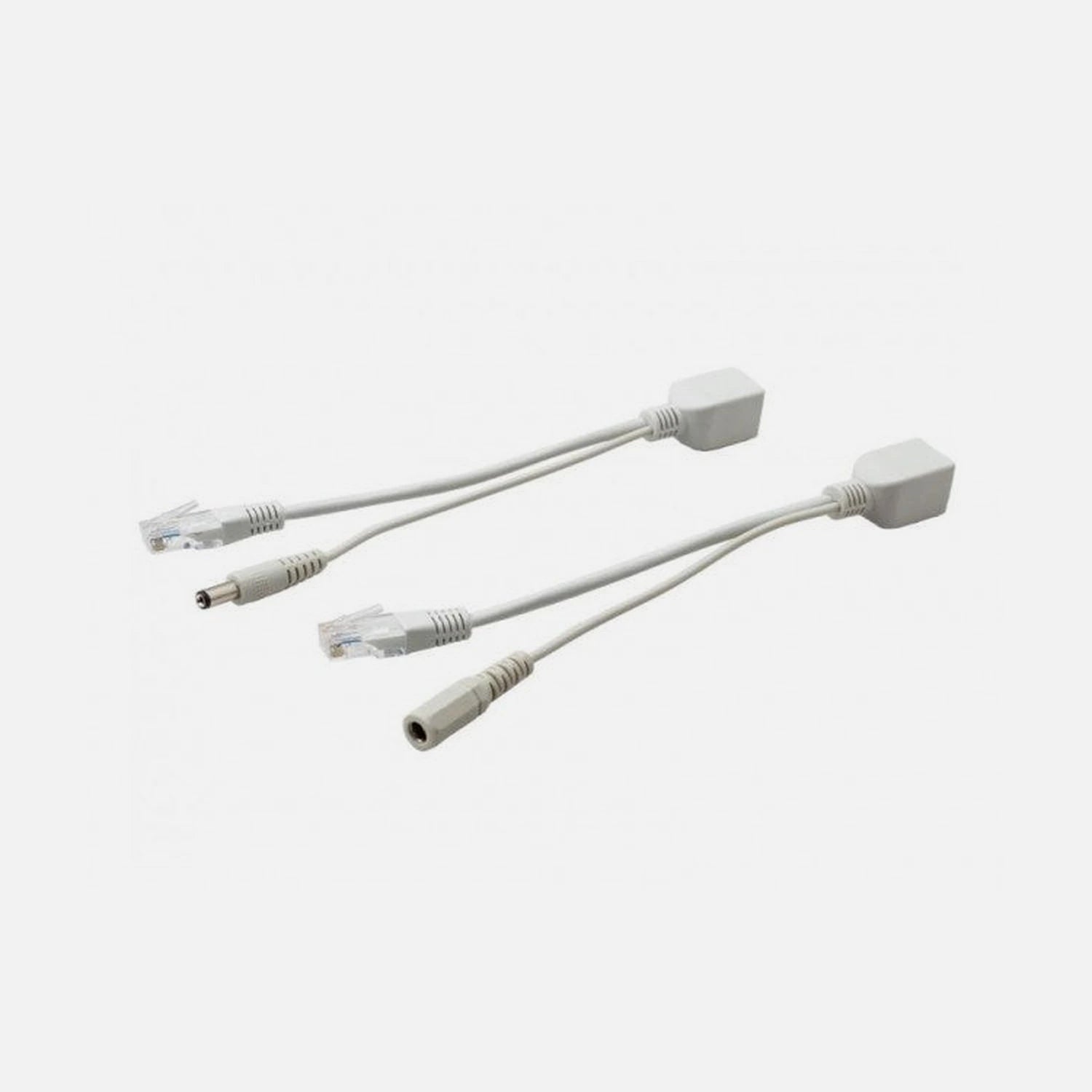

- In the Box: 1x PoE Injector, 1x PoE Splitter
Why You'll Love It
- Single-cable solution for both data and power eliminates the need to run a separate power cable to remote devices
- Passive design requires no configuration — connect and it works immediately
- White PBT housing blends into ceiling and wall installations without drawing attention
- 50-metre range covers most in-building cable runs from a central network cabinet to a device
