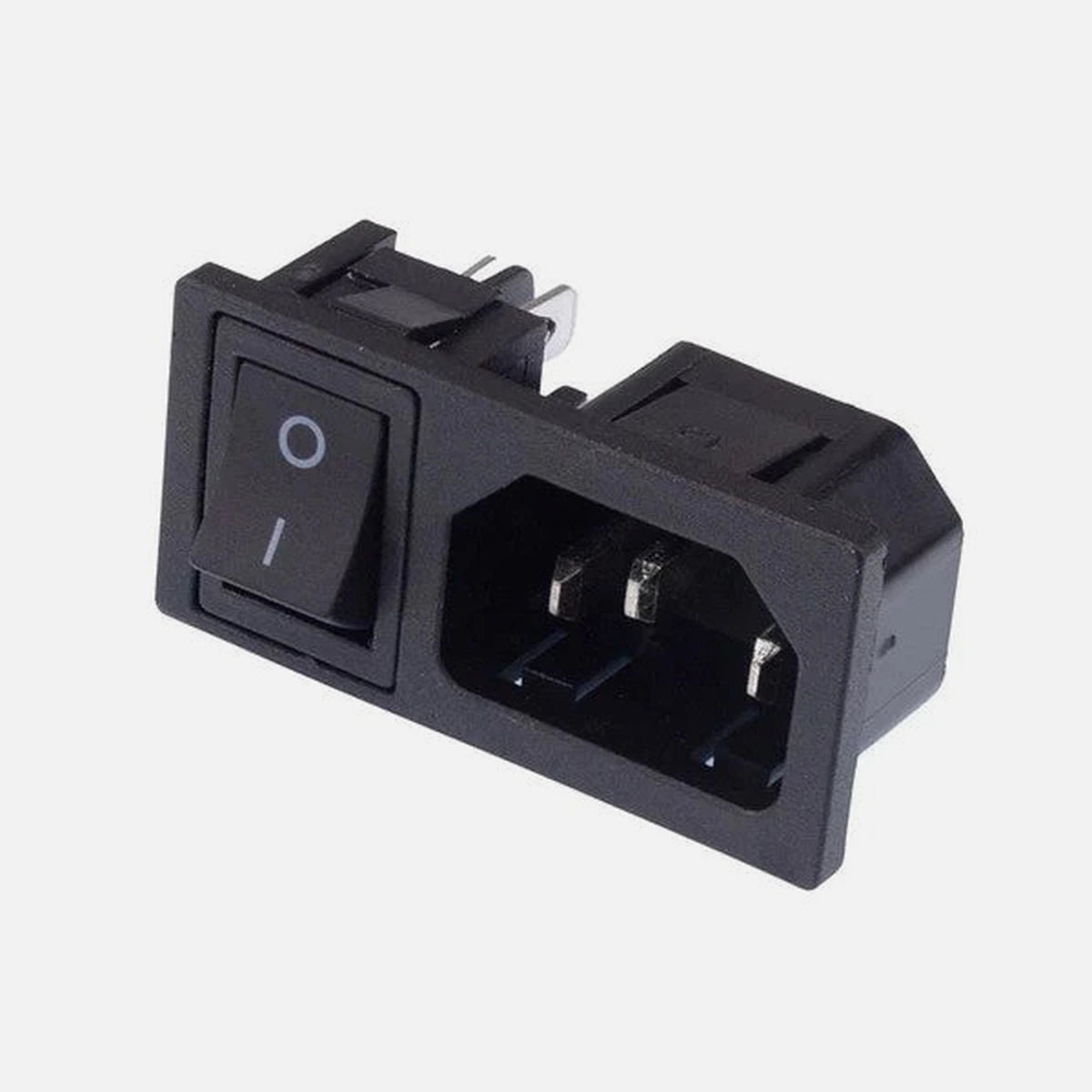

The GBC 22.0306.05 is a panel-mount IEC C14 male plug designed as an AC power inlet for equipment and enclosures. It is rated 10A at 250V with three poles for line, neutral, and earth, and includes an integrated on-off switch for primary power control directly on the chassis.

Faston 6.3mm terminals make wiring fast and tool-free, while the ABS body and nickel-plated brass contacts provide durability and reliable conductivity. The straight orientation suits standard panel cut-outs in PCs, instruments, and industrial enclosures.

Key Features

• IEC C14 male panel-mount plug for AC power supply
• 3-pole design covering line, neutral, and earth
• Rated 10A at 250V for general equipment use
• Integrated on-off switch for chassis-level power control
• Faston 6.3mm terminals for fast wiring
• ABS housing with nickel-plated brass contacts

Product Benefits

• Standard IEC C14 inlet accepts widely available C13 power cords
• Integrated switch removes the need for a separate panel switch
• Faston 6.3mm connections speed up assembly and rework
• Nickel-plated brass contacts resist corrosion for long service life
• Compact 17 g body fits tight panel cut-outs without adding bulk
• Black ABS housing blends into most equipment finishes

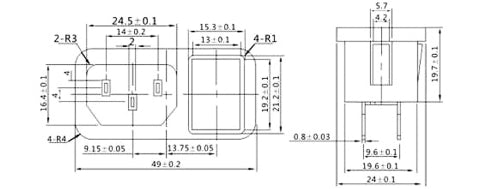

Technical Specifications

• Type: AC power supply
• Connector: IEC C14 plug
• Rating: 10A - 250V
• Switch: Yes - On-Off
• Fuse: No
• Orientation: Straight
• Number of Poles: 3
• Mounting: Panel
• Terminals: Faston 6.3mm
• Body Material: ABS
• Contacts: Nickel-plated brass
• Colour: Black
• Weight: 17 g

Why You'll Love It

• Built-in switch saves space and simplifies front-panel design
• Standard C14 form fits any C13 cable supplied with PCs and lab gear
• Faston terminals make wiring quick without soldering
• ABS body and plated contacts hold up to repeated insertions
• Package includes 1× GBC 22.0306.05 IEC C14 male panel plug with switch
