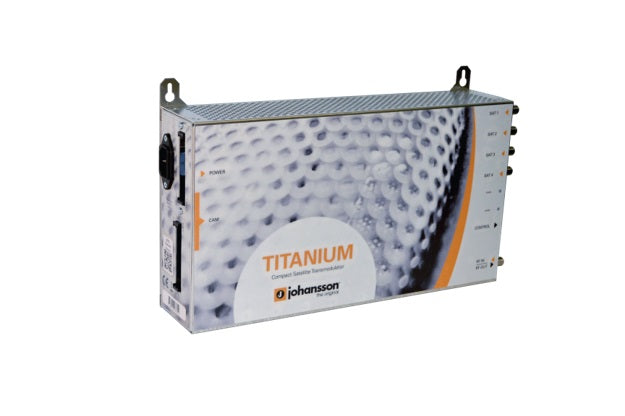

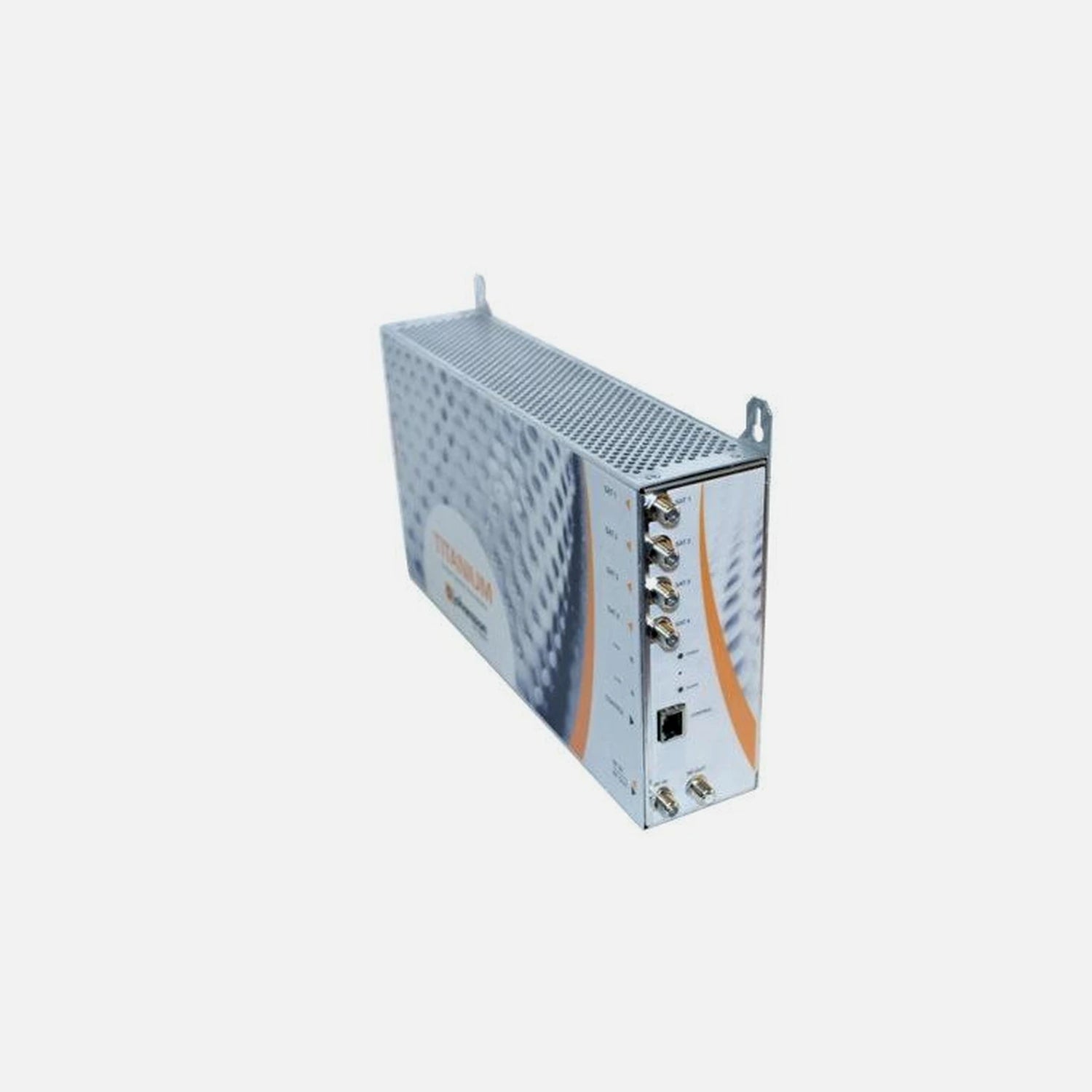

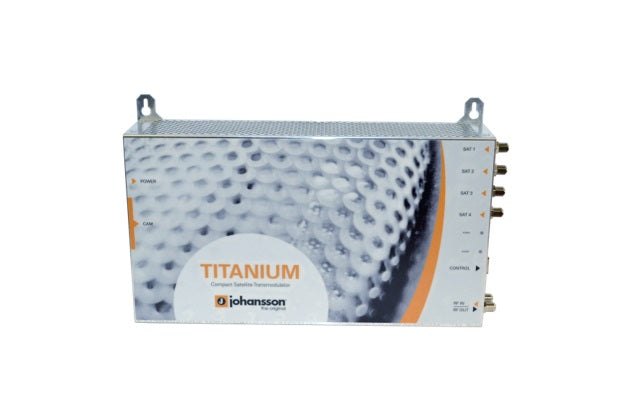

The Johansson 8703 Titanium 8x8 is a standalone compact headend for professional digital TV installations. It houses 8 satellite tuners covering DVB-S and DVB-S2 (QPSK and 8PSK) and generates 8 output multiplexes in either DVB-T or DVB-C format on a single RF output port. The unit includes a built-in integrated multiswitch that allows flexible routing of satellite programme streams to any of the output multiplexes.

Four CI slots accept CAM cards for conditional access. Encoded programmes from all 8 tuners can be routed through 1, 2, 3, or 4 CAMs and decoded using multi-service CAMs. Configuration is handled via a built-in webserver accessible through the dedicated management Ethernet port, with no additional software required.

Key Features

• 8 DVB-S/S2 tuners covering QPSK and 8PSK modulation
• 8 output multiplexes (DVB-T or DVB-C) on 1 RF output
• 4 CI slots for CAM cards; supports routing through 1 to 4 CAMs including multi-service CAMs
• Built-in integrated multiswitch for flexible programme-to-MUX routing
• Web-based configuration via built-in webserver and management port
• Standalone frame with built-in power supply

Product Benefits

• Consolidates 8 tuners and 8 MUXs in a single chassis — dramatically reduces rack space
• Web-based management removes the need for dedicated configuration software at the installation site
• Flexible CAM routing lets operators choose which services are decoded and on which output
• DVB-T or DVB-C output selection suits a wide range of downstream distribution infrastructure

Technical Specifications

• Model: 8703 Titanium 8x8
• Input standard: DVB-S2 (QPSK, 8PSK) / DVB-S (QPSK)
• Satellite inputs: 4 satellite bands + 1 x RF in
• Tuners: 8 (8 transponders)
• Input frequency range: 950–2150 MHz
• Input level: 44–84 dBM
• Input bandwidth: 36 MHz
• DC power at RF input: 13V / 18V / 22 kHz
• Max current per input (LNB feed): 350 mA
• Integrated multiswitch: Yes — flexible routing of satellite programmes to multiplexes (QAM or QOFDM)
• CI slots: 4
• CAM routing: Encoded programmes routable through 1, 2, 3, or 4 CAMs; multi-service CAM support
• RF outputs: 1 with 8 MUXs (DVB-T or DVB-C)
• DVB-T output rate: up to 31.7 Mbps per MUX
• DVB-C output rate: up to 51.3 Mbps per MUX
• Output level: 69–84 dBμV (adjustable)
• Configuration: Built-in webserver via management port

Why You'll Love It

• Single chassis reduces installation time versus discrete modulator-per-channel setups
• Built-in power supply — no external PSU to wire or mount
• Web-based configuration allows remote management without on-site visits
• Box includes: 8703 unit, 75 ohm terminators, 1.8 m mains cable, and instruction manual
