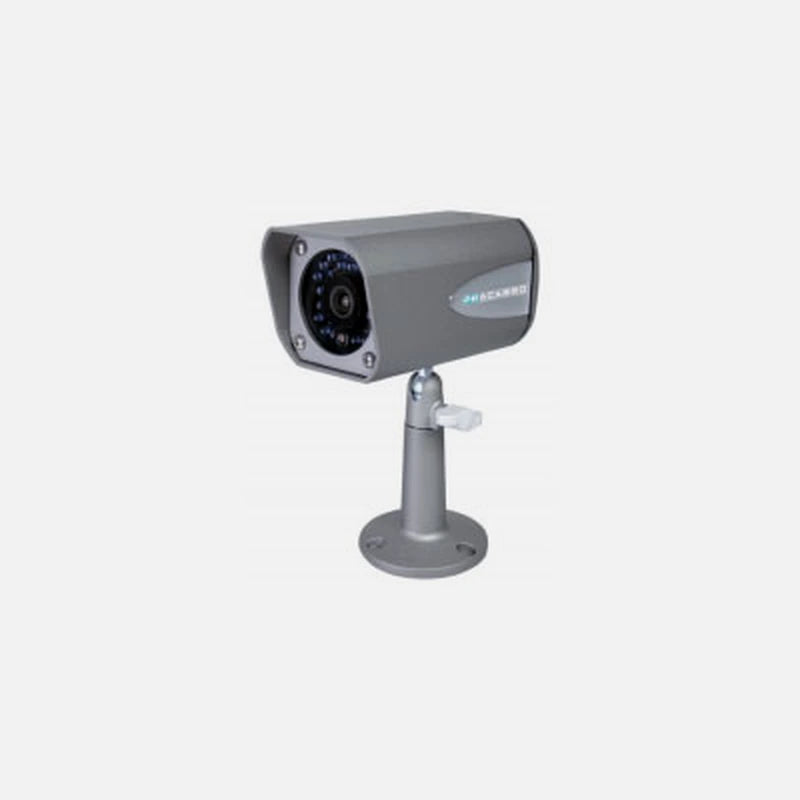

The Fracarro CIR18-66 is a compact all-in-one camera with a fixed 4.2 mm lens and a Sony CCD colour sensor. It delivers 420-line TV horizontal resolution and automatic infrared night vision via 18 IR LEDs at 850 nm, with a CDS light sensor controlling IR activation at 8–10 lux.
The IP66-rated enclosure allows installation in exposed outdoor positions. A wall mounting bracket is included in the package. Power is supplied at 12 V DC and the unit draws 80 mA with IR off and 220 mA with IR on.
Key Features
- Sony CCD 1/3" colour sensor
- 18 infrared LEDs at 850 nm for night vision
- CDS light sensor with IR activation at 8–10 lux with delay
- Fixed 4.2 mm lens at F2.0 aperture
- IP66 weatherproof rating
- AGC, AWB, and AES image controls all active
- Wall mounting bracket included
Product Benefits
- IR coverage of 10–15 m indoors and 5–10 m outdoors provides effective night surveillance in both environments
- Minimum illumination of 0.3 lux (0 lux with IR on) ensures usable images in near-darkness
- Signal-to-noise ratio greater than 48 dB (AGC Off) produces clean video output
- Auto white balance (2500–9500 K) and electronic shutter (1/50–1/100,000) adapt automatically to changing light conditions
- Compact all-in-one format simplifies installation — no separate housing required
Technical Specifications
- Sensor: CCD 1/3" Sony colour
- Horizontal Resolution: 420 lines TV (500 × 582 pixels)
- Gamma Correction: 0.45
- Minimum Illumination: 0.3 lux; 0 lux with IR LEDs on
- Signal/Noise Ratio: >48 dB (AGC Off)
- Video Output: Composite 1 Vpp, 75Ω, BNC, PAL
- Synchronisation: Internal
- Lens: 4.2 mm @ F2.0
- IR LEDs: 18 × 850 nm
- Light Control: CDS sensor, activation at 8–10 lux with delay
- IR Coverage: 10–15 m (indoors), 5–10 m (outdoors)
- Protection: IP66
- Power Supply: 12 V ± 10%
- Power Consumption: 80 mA (IR LED off); 220 mA (IR LED on)
- Working Temperature: -10 ÷ +55 °C
- Dimensions: 126 × 60 × 60 mm
- Weight: 660 g
- AGC (Auto Gain Control): On
- AWB (Auto White Balance): On (2500–9500 K)
- AES (Auto Electronic Shutter): On, 1/50–1/100,000
- Included: Wall mounting bracket
Why You'll Love It
- The all-in-one format means the camera is ready to connect without separate housing assembly
- IP66 certification allows permanent outdoor installation without additional weatherproofing
- Zero-lux IR capability maintains continuous video in complete darkness
- Standard BNC output and PAL signal integrate with existing analogue CCTV systems
