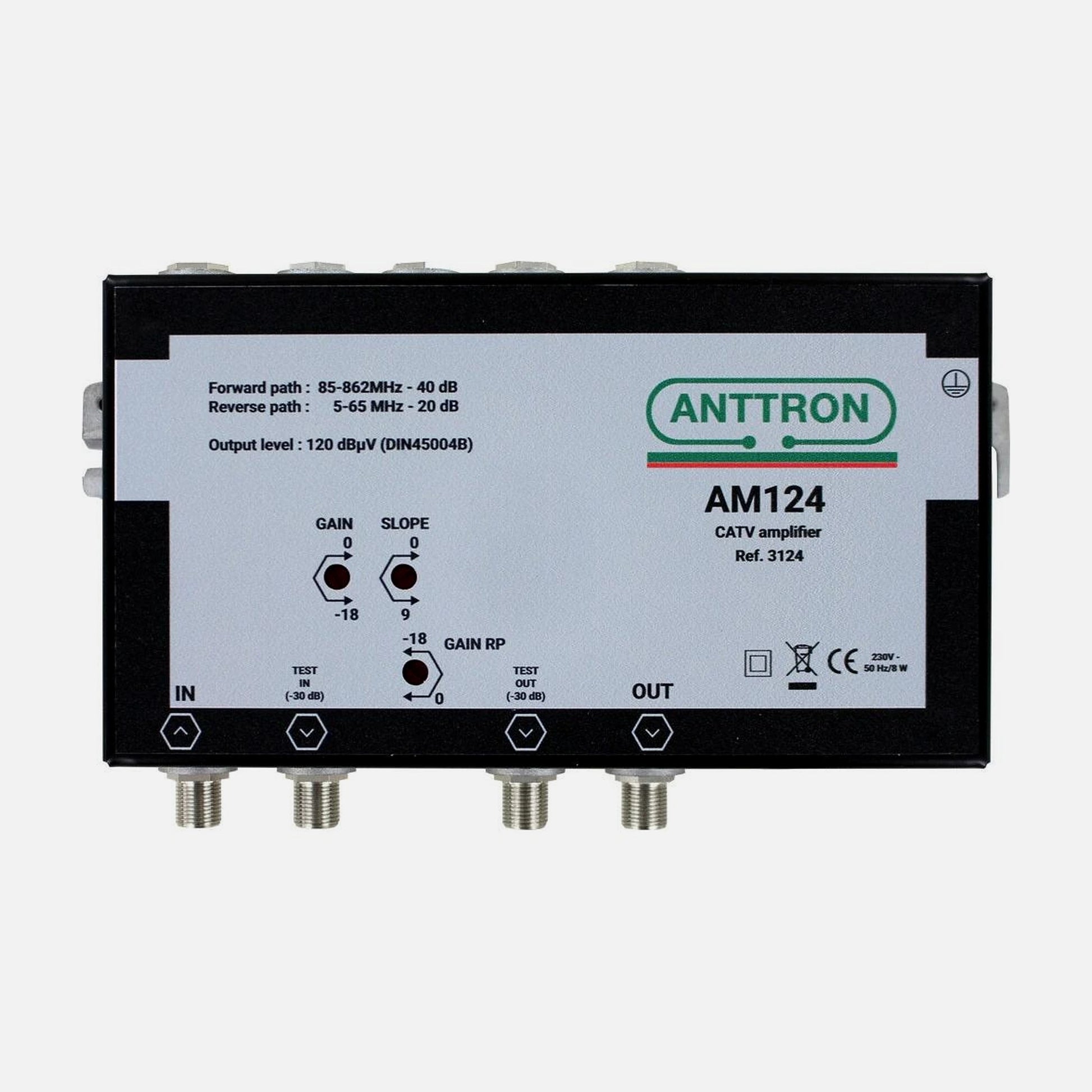

Anttron AM124 Wideband CATV Amplifier – 40 dB Forward Gain, -30 dB Test Port & GaAs-MMIC
Anttron AM124 Wideband CATV Amplifier – 40 dB Forward Gain, -30 dB Test Port & GaAs-MMIC
Out of stock
Couldn't load pickup availability
Elevate Your Shopping Experience with Free Shipping on Orders Over 80 Euros!
Description
Description
The Anttron AM124 is a wideband CATV amplifier designed for CATV installations carrying both digital and analogue channels. Its die-cast aluminium chassis and GaAs-MMIC transistor produce a compact unit with high linearity and efficiency. The AM124 differs from the A181 model with its higher 40 dB forward gain and the addition of a -30 dB test input/output port.
The amplifier provides separate forward-path gain adjustment, slope adjustment, and return-path gain adjustment. The attenuation range covers 0–18 dB for both paths, while the slope attenuation range on the forward path is 0–15 dB. Noise figure remains below 7 dB throughout the operating range.
Key Features
- 1 input, 1 output
- Test input/output: yes, -30 dB
- Forward gain (85–862 MHz): 40 dB
- Return path gain (5–65 MHz): 10 dB
- Attenuation range (forward and return path): 0–18 dB
- Slope attenuation range (forward path): 0–15 dB
- GaAs-MMIC transistor for high linearity and efficiency
- Die-cast aluminium chassis for compact, robust construction
Product Benefits
- 40 dB forward gain covers longer cable runs and larger distribution networks compared to lower-gain CATV amplifiers
- The -30 dB test port allows signal level monitoring during installation and maintenance without interrupting service
- Separate forward and return path gain controls enable optimisation of both downstream video and upstream data paths in two-way networks
- GaAs-MMIC technology delivers a maximum output of 118 dBµV with a noise figure below 7 dB, preserving signal quality to the subscriber
- 6 W power consumption allows always-on operation with minimal energy cost
Technical Specifications
- Number of Inputs: 1
- Number of Outputs: 1
- Test Input/Output: Yes, -30 dB
- Forward Gain (85–862 MHz): 40 dB
- Return Path Gain (5–65 MHz): 10 dB
- Attenuation Range (forward/return path): 0–18 dB
- Slope Attenuation Range (forward path): 0–15 dB
- Noise Figure: <7 dB
- Input/Output Return Loss: >10 dB
- Max. Output Level (IM3: -52 dB, 3 equal carriers): 118 dBµV
- Voltage: 230 VAC (-10%, +15%)
- Power Consumption: 6 W
Why You'll Love It
- Includes an Allen key and instruction manual for a complete installation immediately out of the box
- The compact die-cast aluminium housing installs neatly in any standard CATV rack or enclosure
- EAN: 5420037631247 — easily verified for procurement and inventory management
- Consistent 6 W consumption across all gain settings keeps energy costs predictable in long-term installations
