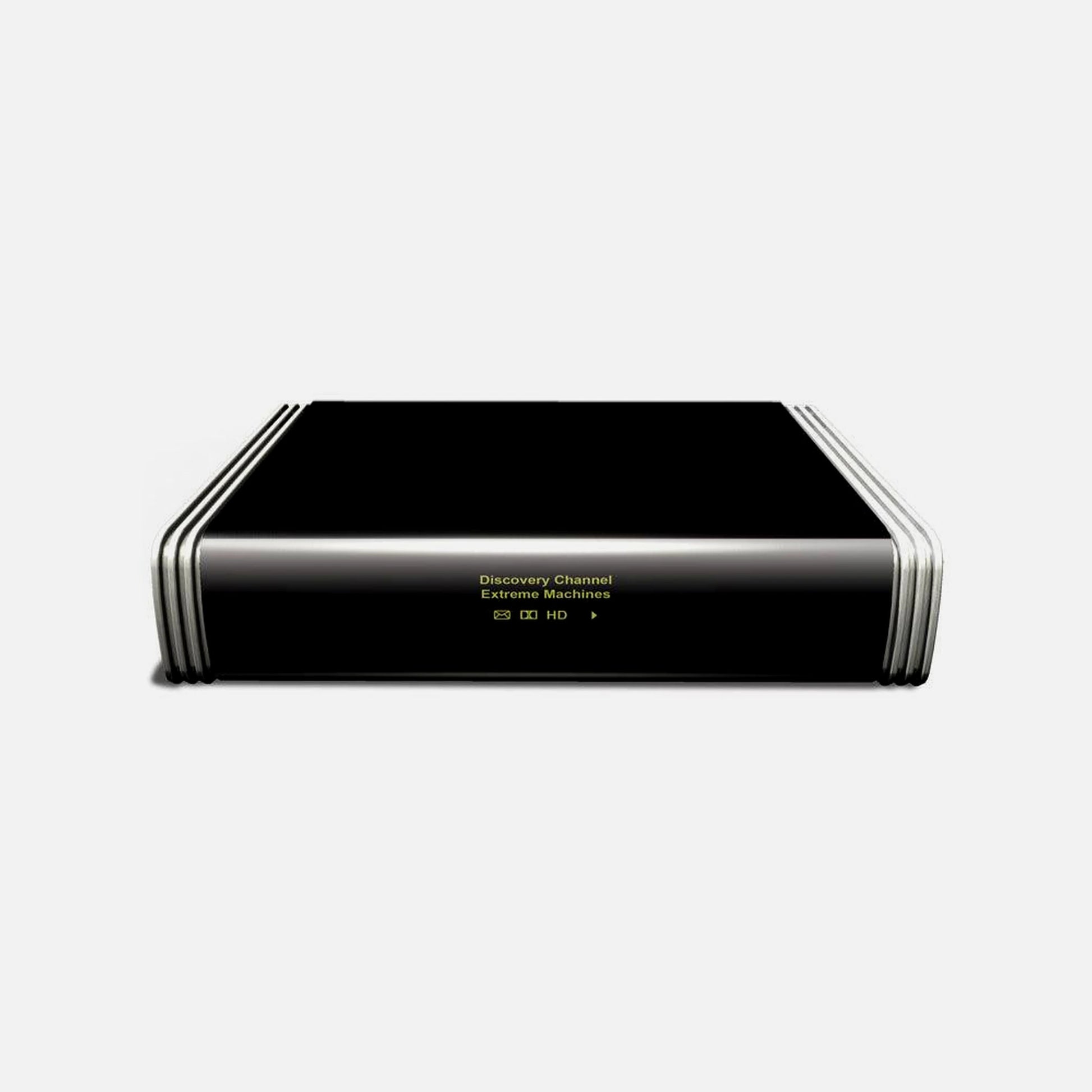

The Lyngbox is a Linux-powered set-top box that combines DVB-S/DVB-S2 satellite reception with DVB-T terrestrial reception in a single chassis. Its internal 160 GB hard disk enables PVR recording without any external storage device, while two Common Interface slots give access to encrypted pay-TV services.

The front panel features an OLED display for at-a-glance channel information. Connectivity is broad: HDMI, four USB 2.0 ports, e-SATA, S/PDIF, RCA composite, and an RS-232 serial port cover virtually every connection scenario for home AV setups.

Key Features

• Dual-standard reception: DVB-S/DVB-S2 satellite and DVB-T terrestrial in one unit
• Internal 160 GB hard disk with PVR recording functionality
• Two Common Interface (CI) slots for pay-TV conditional access modules
• STi7100 triple-core processor: 1x266 MHz + 2x400 MHz
• OLED front panel display
• Up to 50,000 channel memory
• Internal expansion slot for an additional tuner card
• DiSEqC 1.2 support for motorised dish control

Product Benefits

• The built-in hard disk means you can record and pause live TV without connecting an external drive
• Dual CI slots allow simultaneous use of two conditional access systems, useful for households subscribing to more than one pay-TV service
• DVB-S2 and DVB-T reception in one box eliminates the need for a separate terrestrial decoder
• DiSEqC 1.2 enables automated satellite dish positioning for multi-satellite setups
• The four USB 2.0 ports allow recording to external drives or playback of media from a USB storage device
• Channel search by typing a name (or the first letters) on the optional wireless keyboard speeds up navigation across a large channel list

Technical Specifications

• Reception Standards: DVB-T, DVB-S, DVB-S2
• Video Standards: MPEG-2, H.264/MPEG-4 AVC
• HD Output: 720p, 1080i
• Common Interface: 2x CI
• Processor: STi7100, 1x266 MHz + 2x400 MHz (triple core)
• Flash Memory: 32 MB
• System Memory: 96 MB
• Internal Storage: HDD 160 GB
• Display: OLED
• Channel Memory: 50,000
• HDMI: 1x HDMI
• USB: 4x USB 2.0
• Other Ports: 1x Ethernet, 1x e-SATA, 1x RCA, 1x S/PDIF, 1x RS-232
• PVR: Yes
• DiSEqC: 1.2
• Menu Languages: Greek, English, Dutch, German, Russian, Italian, French and others

Why You'll Love It

• Linux firmware gives access to a wide ecosystem of third-party plugins and channel-list managers
• The optional wireless remote keyboard lets you search for channels by typing the name directly, without scrolling through thousands of entries
• Recordings can also be directed to an external DVD recorder connected via USB 2.0, giving a second archiving option beyond the internal hard disk
• The unit ships with a standard remote control; the wireless keyboard is an optional accessory, so the out-of-box setup is complete
