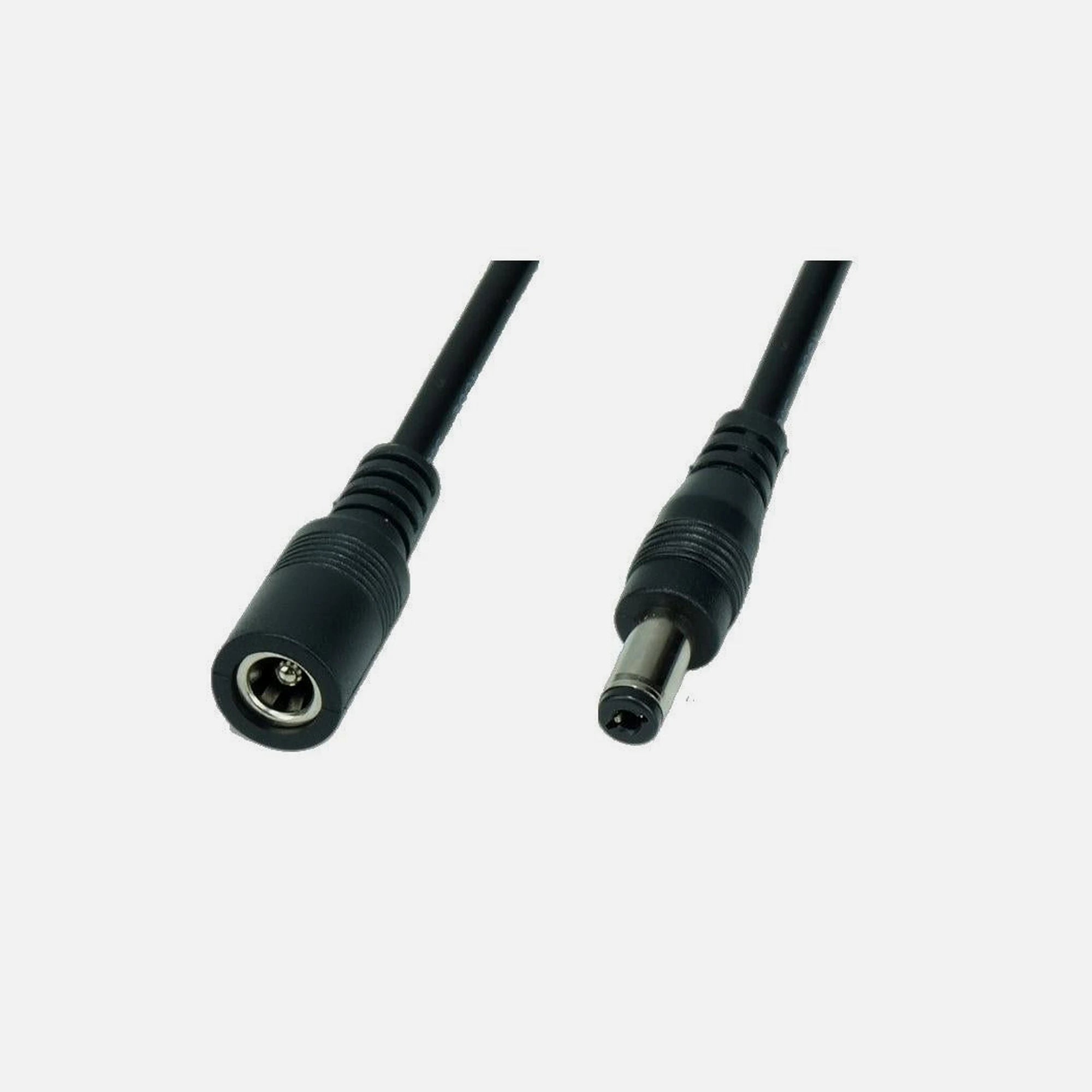

The MPL POSDC-Y-PS25-0.5 is a 500mm DC power cable with a 2.5x5.5x10mm female plug at the output and a 2.5x5.5 male socket at the input. It is designed as a fast extension or adapter pigtail for LED lighting, CCTV, alarm and intercom systems, home automation, and audio or speaker installations.

Pure copper, flexible multiwire conductors sit inside a double-insulated PVC jacket. The cable carries 3A at 0-60V and is rated for working temperatures from -20°C to 80°C. It is RoHS 2015/863 and LVD 2014/35/UE compliant.

Key Features

• Output connector: female plug 2.5x5.5x10mm (inner/outer diameter/length)
• Input connector: male socket 2.5x5.5 (center pin / internal socket diameter)
• Cable length 500mm with 2x0.5mm² conductors
• Pure copper flexible multiwire conductors
• Double-insulated PVC jacket, cable cross section 4.2mm

Product Benefits

• Ready-made plug-to-socket extension for 2.5/5.5 DC connectors
• Reduces wiring time on installations and on-site repairs
• Wide -20°C to 80°C working range for indoor and protected outdoor use
• RoHS 2015/863 and LVD 2014/35/UE compliant
• Suitable for LED lighting, CCTV, alarms, intercoms and home automation

Technical Specifications

• Output Connector: female plug 2.5x5.5x10mm
• Input Connector: male socket 2.5x5.5
• Length: 500mm
• Wire: 2x0.5mm², pure copper, multiwire
• Jacket: PVC, double insulation
• Inner Conductor: Cu
• Cable Cross Section: 4.2mm
• Core Colours: black outside / black-red inside
• Nominal Voltage: 0-60V
• Rated Current: 3A
• Insulation Resistance: >100MΩ at 300Vdc
• Insulation Thickness: 0.4mm
• Wire Resistance: max 0.039Ω/m
• Working Temperature: -20°C to 80°C
• Compliance: RoHS 2015/863, LVD 2014/35/UE

Why You'll Love It

• Pre-terminated 2.5/5.5 extension saves wiring time
• Pure copper conductors with double PVC insulation
• Compact 500mm length fits most installation gaps
• Package includes 1 x MPL POSDC-Y-PS25-0.5 cable with female plug 2.5x5.5x10mm and male socket 2.5/5.5 500mm
