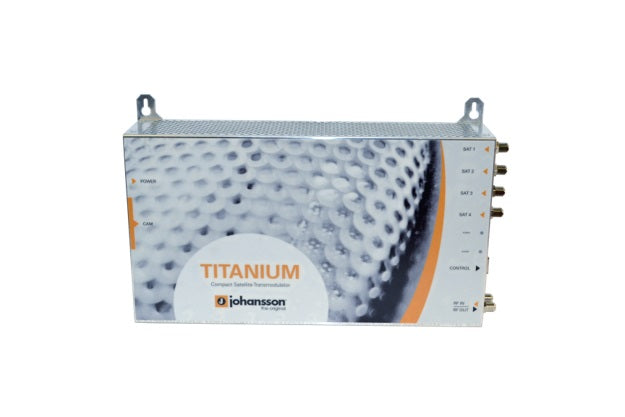

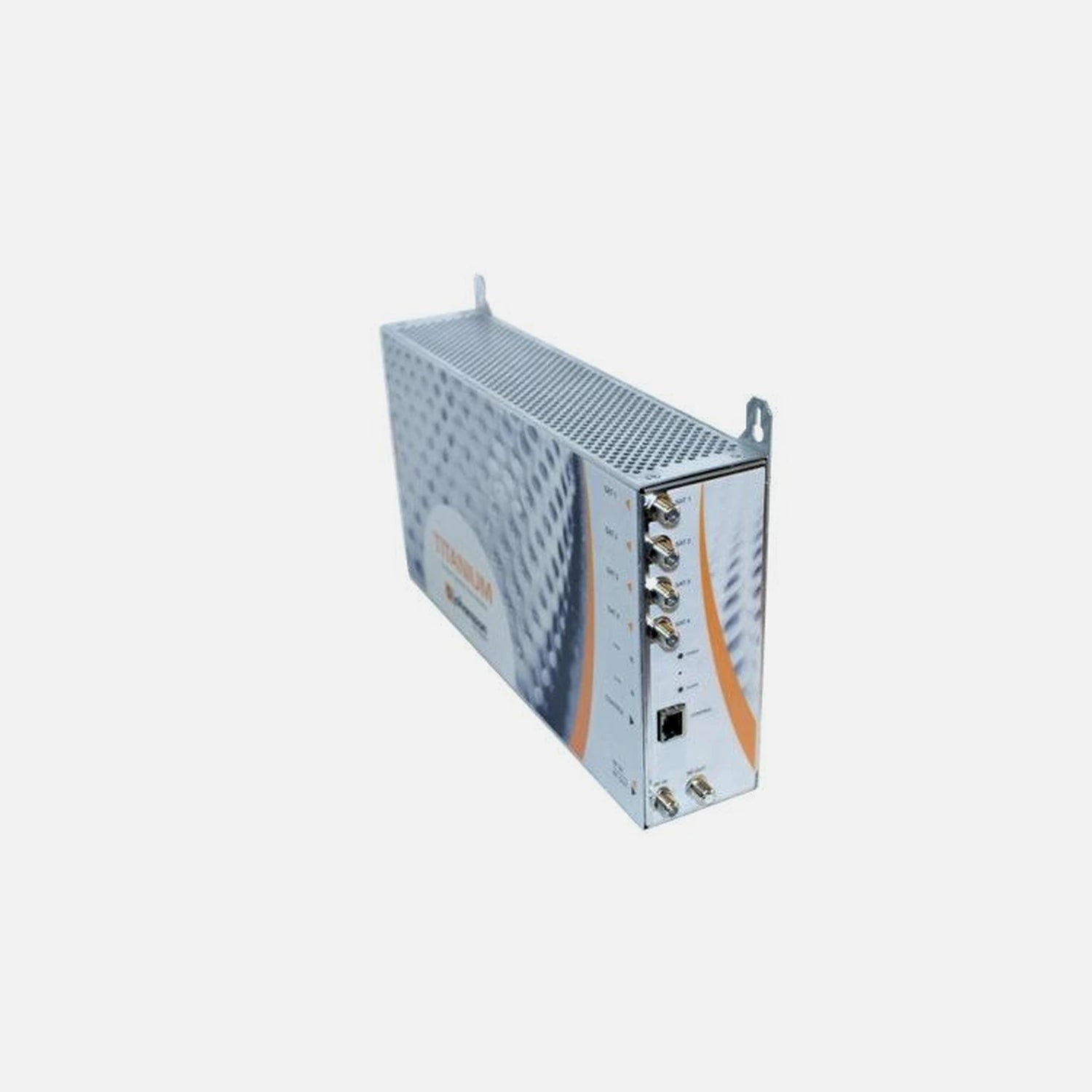

The Johansson 8701 Titanium 8 DVB-T/C is a standalone compact headend for digital TV distribution. It accepts signals from up to 8 satellite transponders across 4 satellite bands and one RF input, then re-multiplexes them into up to 4 DVB-T or DVB-C output MUXes on a single RF output. Two CI slots accommodate CAM cards for decoding encrypted services, including multi-service CAMs.
The built-in webserver is accessed via a dedicated management port, enabling full configuration without additional software tools. The transmodulator architecture allows very fast on-site installation, making the 8701 a direct and practical replacement for analogue headends in hotels, hospitals, and other MATV environments requiring high transponder capacity.
Key Features
- 8 satellite tuners accepting DVB-S and DVB-S2 signals (QPSK, 8PSK)
- 4 output MUXes selectable as DVB-T or DVB-C on a single RF output
- 2 CI slots for CAM cards, supporting multi-service CAMs
- Integrated multiswitch allows flexible routing of satellite programmes to multiplexes (QAM or COFDM)
- Standalone frame with built-in power supply — no external chassis required
- RF input pass-through alongside the 4 RF output MUXes
Product Benefits
- 8 tuners enable content from more transponders to be distributed simultaneously compared to the 4-tuner model
- Web-based configuration is fully remote once the unit is on the network — no on-site software installation
- DVB-T output up to 31.7 Mbps per MUX and DVB-C up to 51.3 Mbps per MUX support high-density multi-channel distributions
- Integrated multiswitch eliminates an external switching device from the signal path
- Both DVB-T and DVB-C outputs on the same unit provide flexibility for mixed building infrastructure
Technical Specifications
- Model: 8701 Titanium 8
- Input signal types: DVB-S (QPSK), DVB-S2 (QPSK, 8PSK)
- Number of inputs: 4 satellite bands + 1 × RF in
- Number of tuners: 8 (8 transponders)
- Input frequency range: 950–2150 MHz
- Input level: 44 to 84 dBm
- Input bandwidth: 36 MHz
- DC remote power at RF input: 13 V / 18 V / 22 kHz
- Max. current per input (LNB feed): 350 mA
- CI slots: 2
- Integrated multiswitch: Yes — flexible routing of satellite programmes to QAM or COFDM multiplexes
- Configuration: Built-in webserver via management port
- RF outputs: 1 × RF output carrying 4 MUXes (DVB-T or DVB-C)
- DVB-T output throughput: Up to 31.7 Mbps per MUX
- DVB-C output throughput: Up to 51.3 Mbps per MUX
- Output level: 69–84 dBµV (adjustable)
- Box contents: 1 × 8701 Titanium 8, 1 × 75 Ω terminator, 1 × mains cable (1.80 m), 1 × instruction manual
Why You'll Love It
- Eight tuners in a single compact chassis — more transponder capacity than the Titanium 4 without increasing rack space
- Remote web configuration means on-site visits are needed only for physical installation
- Selectable DVB-T or DVB-C output adapts to the existing coaxial network without infrastructure changes
- Ideal drop-in replacement for larger analogue headend installations requiring high channel counts
