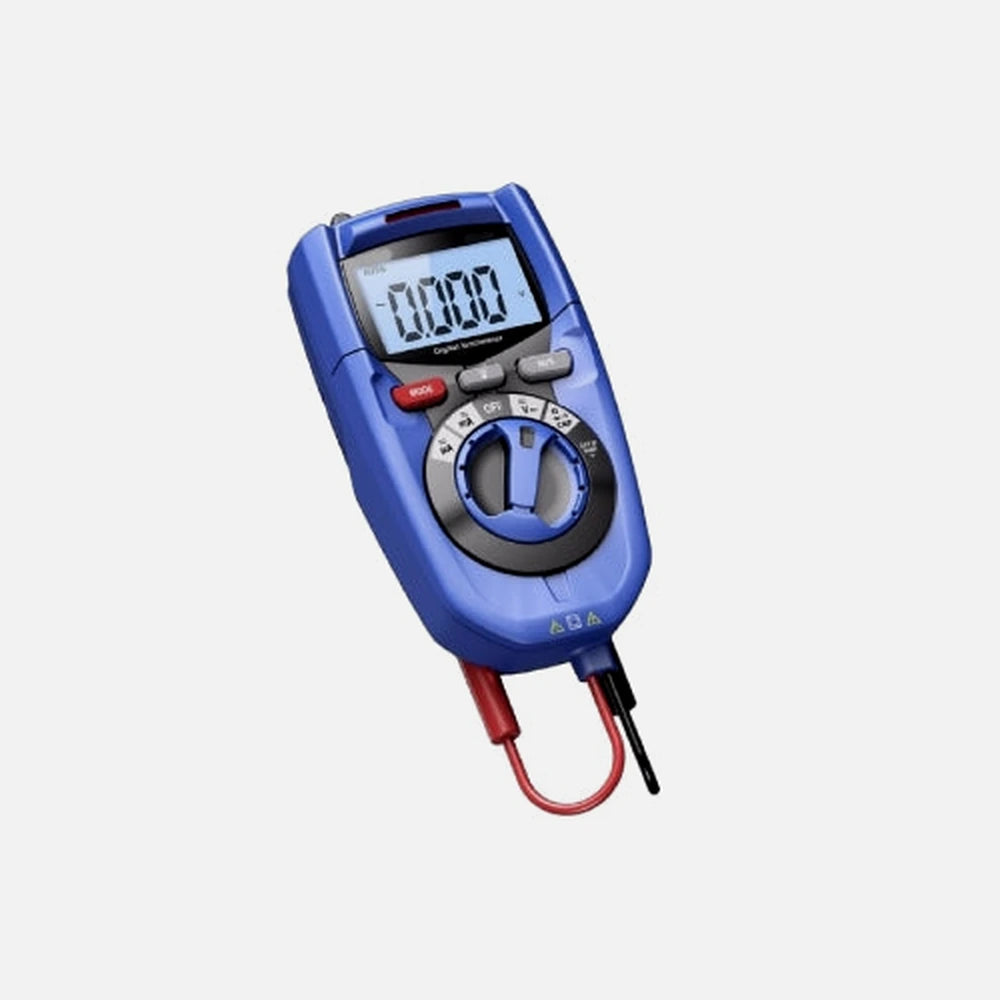

The GBC KM-TBC2 Plus is a pocket-sized digital multimeter powered by two AAA batteries. Its 2.4" backlit colour LCD with 4000-count readability makes measurements clear in any lighting condition, while the auto-range function selects the correct range automatically.

Built for technicians and DIY users who need a compact, feature-complete instrument, the KM-TBC2 Plus combines True RMS measurement, NCV detection, a built-in flashlight, and audible/visual continuity alarm in one ABS body measuring 131 x 70 x 23 mm.

Key Features

• True RMS measurement for accurate readings on non-sinusoidal waveforms
• 4000-count 2.4" backlit colour LCD display
• Auto-range with negative polarity and out-of-range indication
• Non-contact voltage (NCV) detection
• Diode test and audible/visual continuity buzzer
• Built-in white flashlight for working in dark environments
• Data hold and analog bargraph functions
• Automatic power-off and low battery indicator

Product Benefits

• True RMS ensures accurate readings on loads with distorted waveforms such as motors and dimmers
• Auto-range eliminates manual range selection, speeding up measurements on the job
• NCV function detects live wires without direct contact, adding a safety step before working on circuits
• The colour LCD and backlight make readings legible in bright outdoor light and in dark panels
• Compact ABS body with pocket clip fits in a tool bag or shirt pocket

Technical Specifications

• DC Voltage: 400 mV / 600 V
• AC Voltage: 4 V / 600 V
• Resistance: 400 Ω / 40 MΩ
• Capacitance: 4 nF / 4 mF
• Frequency: 4 Hz / 4 MHz
• Display: 2.4" backlit colour LCD, 4000 counts
• Auto Range: Yes
• True RMS: Yes
• NCV: Yes
• Data Hold: Yes
• Safety Rating: CAT III 600 V
• Standards: IEC61010-1,-2-030; EN61010-2-033; EN61326-1
• Power Supply: 2 x 1.5 V AAA (included)
• Dimensions: 131 x 70 x 23 mm
• Weight: 139 g
• Working Temperature: 0 – 40 °C
• Material: ABS
• Colour: Blue

Why You'll Love It

• Batteries are included in the box — the meter is ready to use immediately
• The CAT III 600 V safety rating is appropriate for measurements on distribution panels and building wiring
• The analog bargraph gives a continuous visual reference during fluctuating readings, complementing the numeric display
• The built-in flashlight removes the need to carry a separate torch when working inside electrical cabinets
