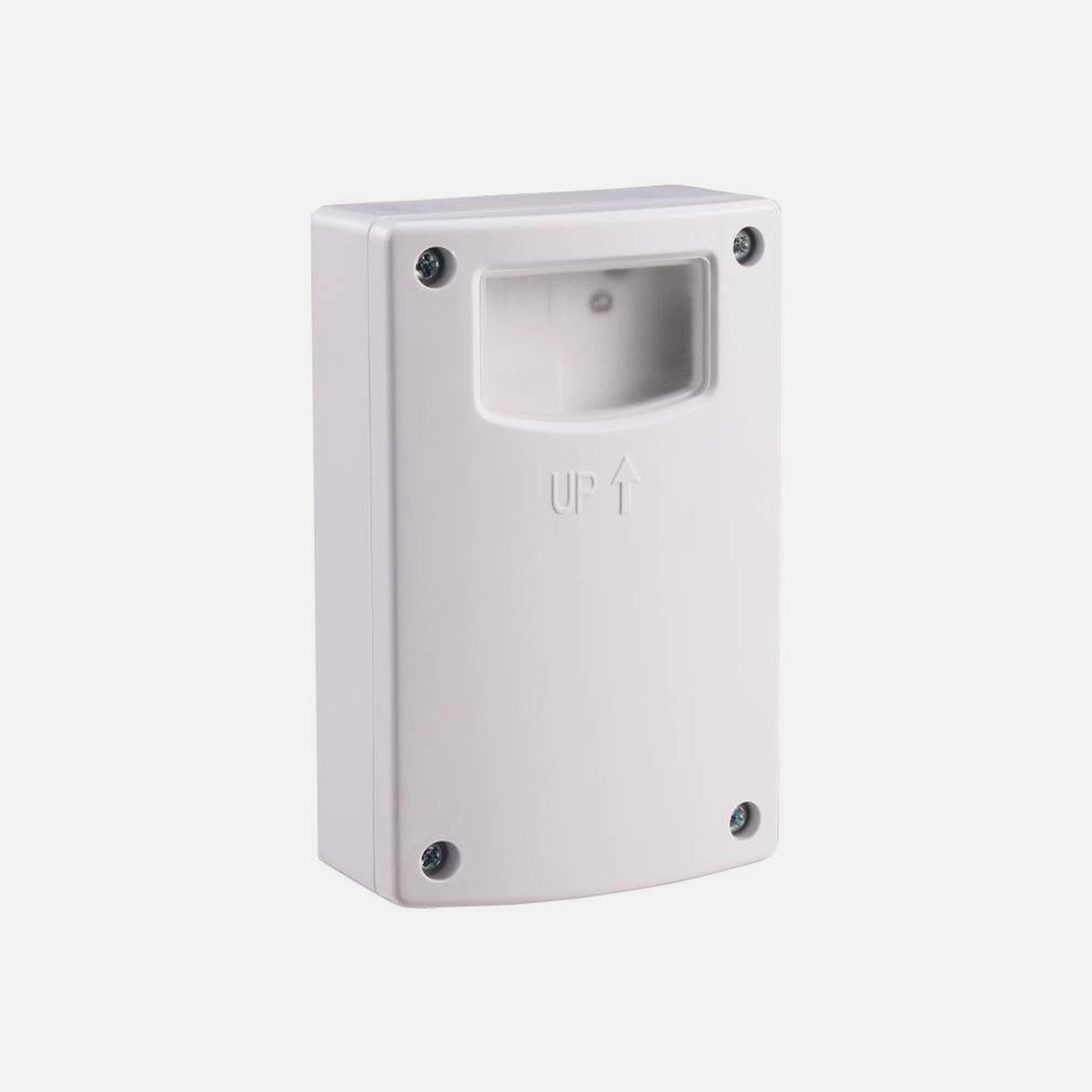

This day-night photocell automates exterior lighting by sensing ambient light and switching connected luminaires on at dusk and off at dawn. The compact rectangular body is designed for wall mounting and is sealed to IP65, making it suitable for installation outdoors and in exposed locations.

The unit operates from 220-240V AC at 50Hz and handles up to 3000W of resistive load (15A maximum). The lux trigger point is user-adjustable between 5 and 500 lux, allowing the switching threshold to be tuned to the site and the surrounding ambient light.

Key Features

• Day-night automatic photocell switch
• Wall-mounted rectangular form factor
• IP65 sealed against dust and water jets
• Adjustable lux setting from 5 to 500 lux
• Maximum resistive load 3000W (15A)
• White plastic body and cover

Product Benefits

• Hands-free dusk-to-dawn switching reduces wasted runtime
• IP65 rating allows mounting on outdoor walls without an enclosure
• Adjustable threshold tunes to street, garden, or storefront conditions
• Compact 100x70x32mm body fits next to fixtures and junction boxes
• 15A capacity drives long runs of garden, signage, or perimeter lighting

Technical Specifications

• Type: Day-Night Photocell
• Mounting: Wall-mounted
• Voltage: 220-240V AC, 50Hz
• Maximum Load: 3000W resistive (15A)
• Lux Setting: 5-500 lux
• Protection Rating: IP65
• Operating Temperature: -20 to +40C
• Operating Humidity: <93% RH
• Dimensions (LxWxH): 100x70x32mm
• Colour: White body, white cover

Why You'll Love It

• Set it once and let outdoor lights handle themselves all year
• IP65 sealing protects against rain and seasonal weather
• Adjustable sensitivity copes with bright streetlights or dark gardens
• Package includes 1x day-night photocell rectangular 15A 230V IP65 white
